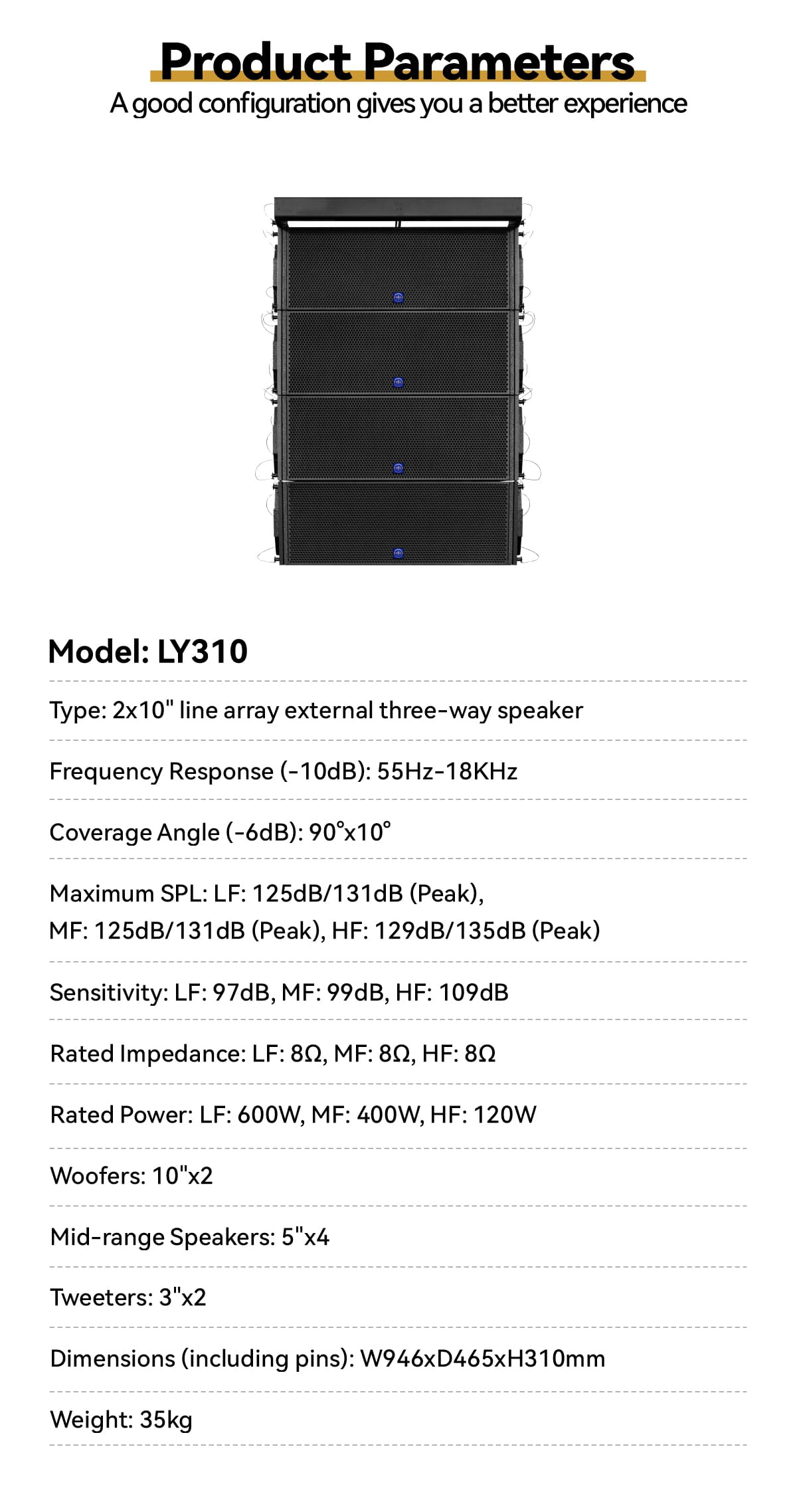

| Model | LY310 |

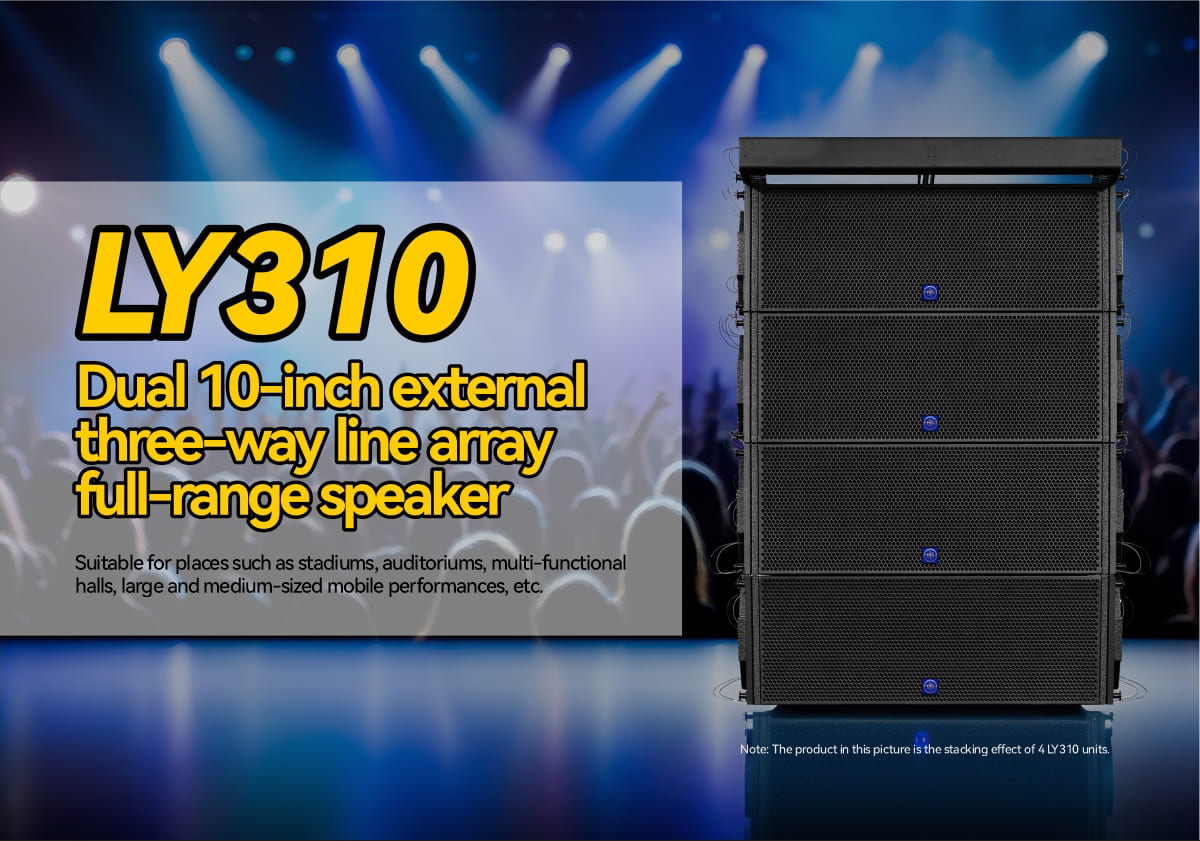

| Category | Dual 10-inch external 3-way line array full-range speaker |
| Frequency response (-10dB) | 55Hz-18KHz |

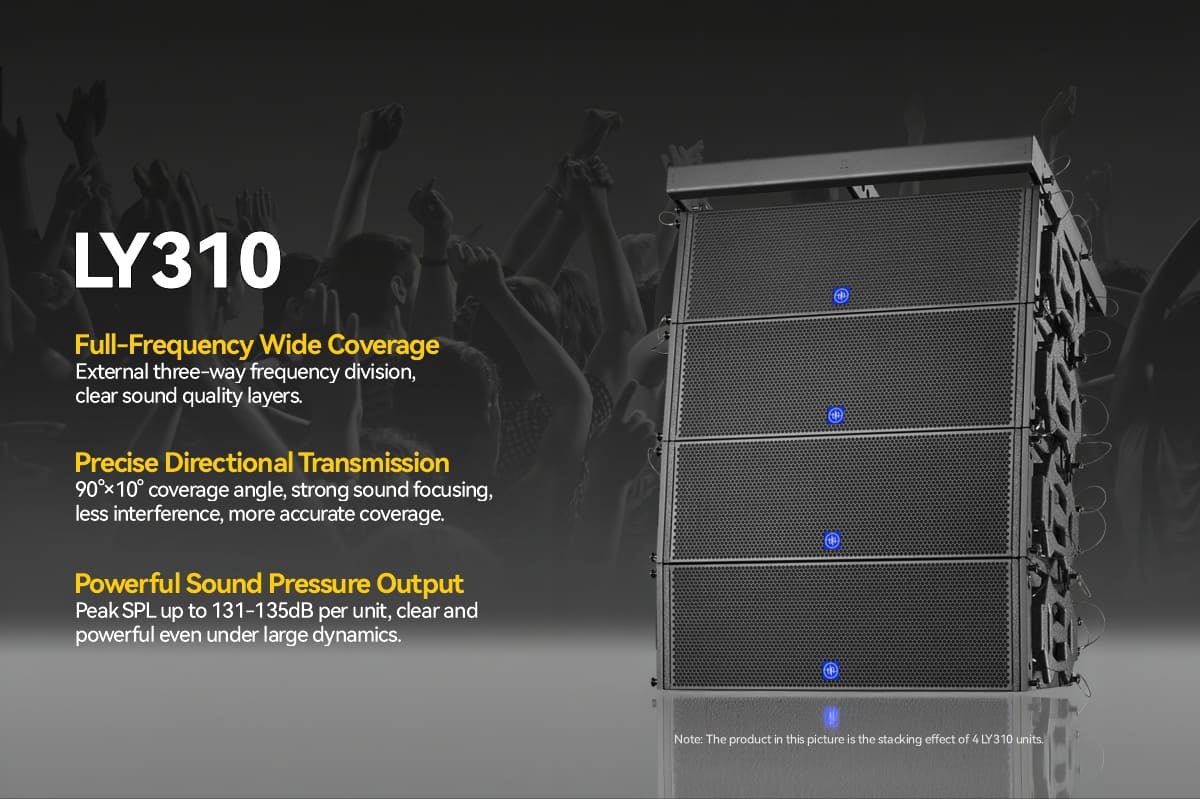

| Coverage angle (-6dB) | 90°×10° |
| Maximum SPL | LF: 125dB / 131dB (Peak); MF: 125dB / 131dB (Peak); HF: 129dB / 135dB (Peak) |

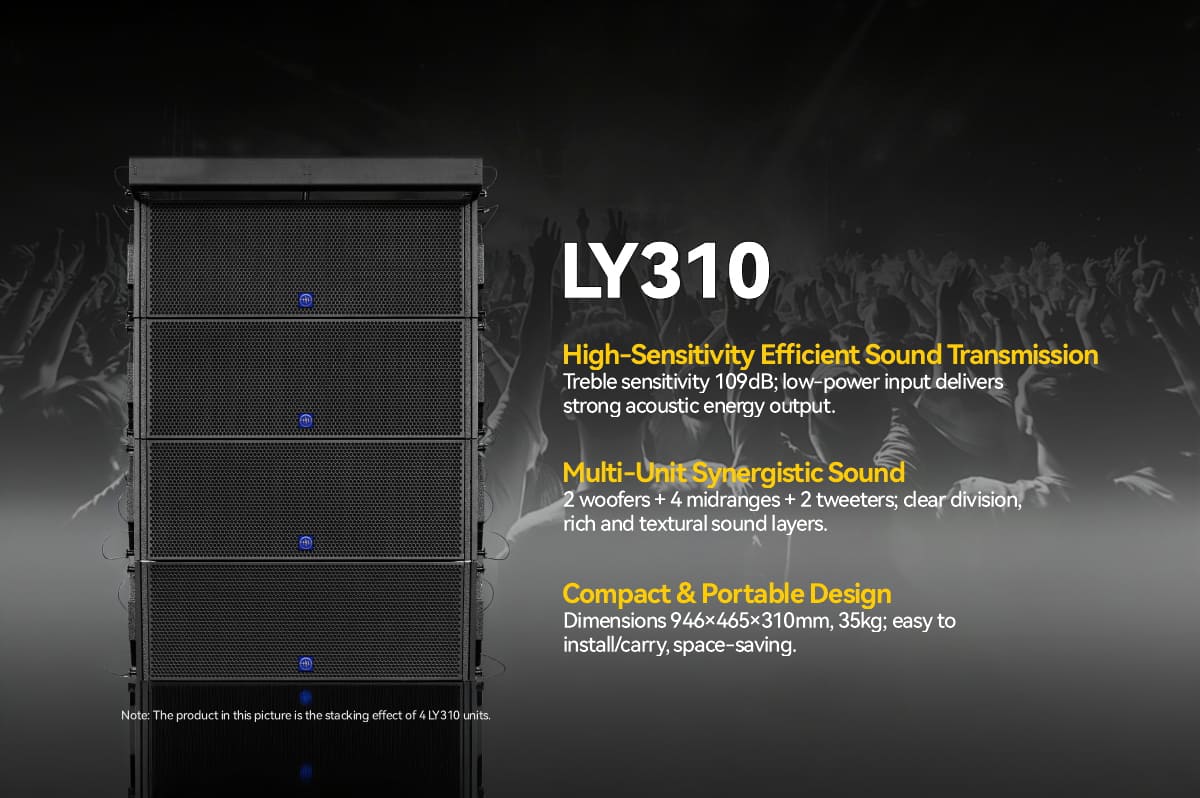

| Sensitivity | LF: 97dB; MF: 99dB; HF: 109dB |
| Rated impedance | LF: 8Ω; MF: 8Ω; HF: 8Ω |
| Rated power | LF: 600W; MF: 400W; HF: 120W |
| Woofer | 2×10" |
| Midrange | 4×5" |
| Tweeter | 2×3" |
| Dimensions (including latch) | W946×D465×H310 (mm) |
| Weight | 35kg |

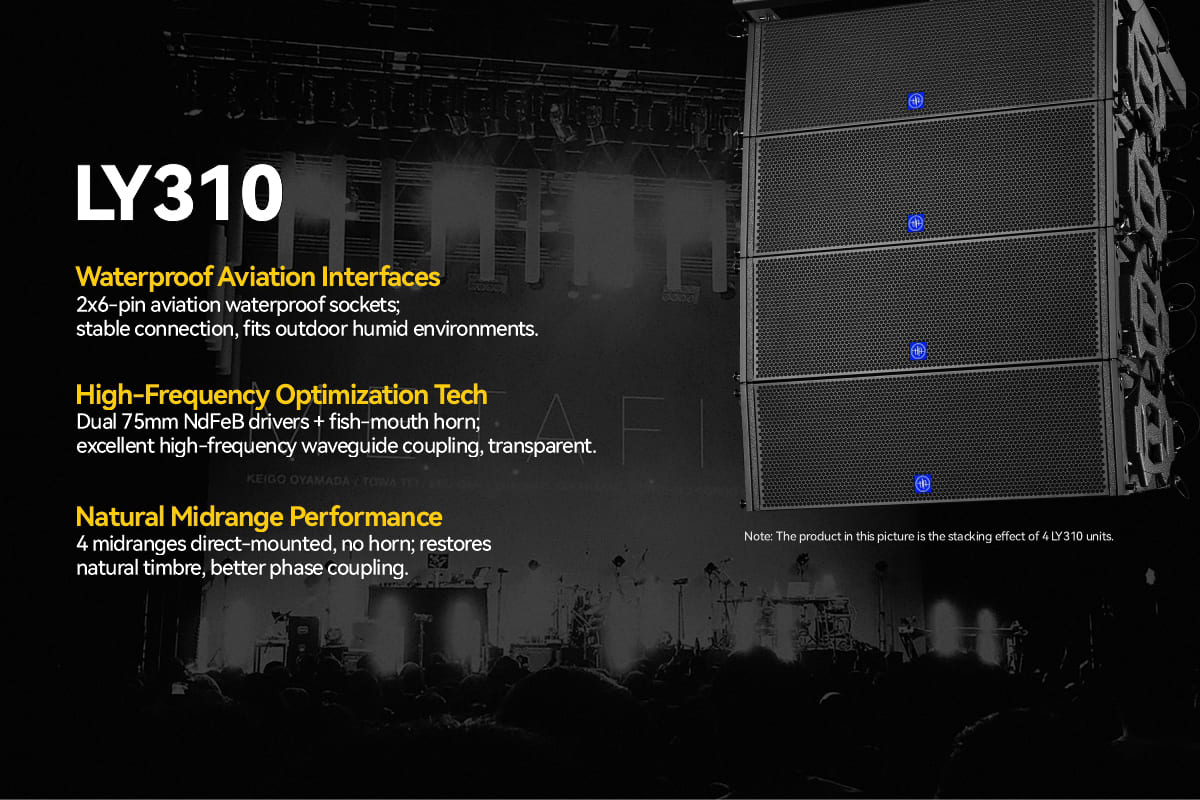

| Connection sockets | LF +/-: 1/2; MF +/-: 3/4; HF +/-: 5/6 (2×6-pin aviation waterproof sockets) |
