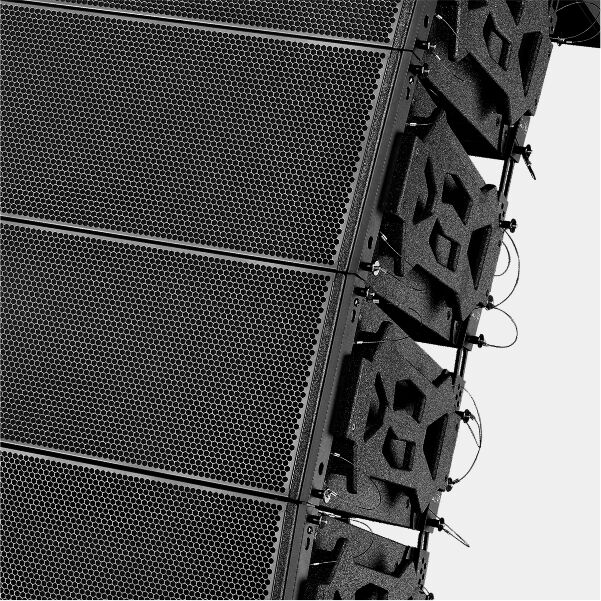

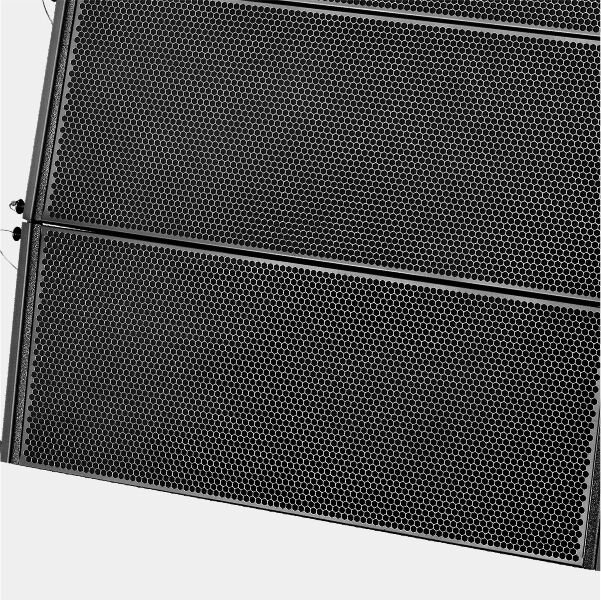

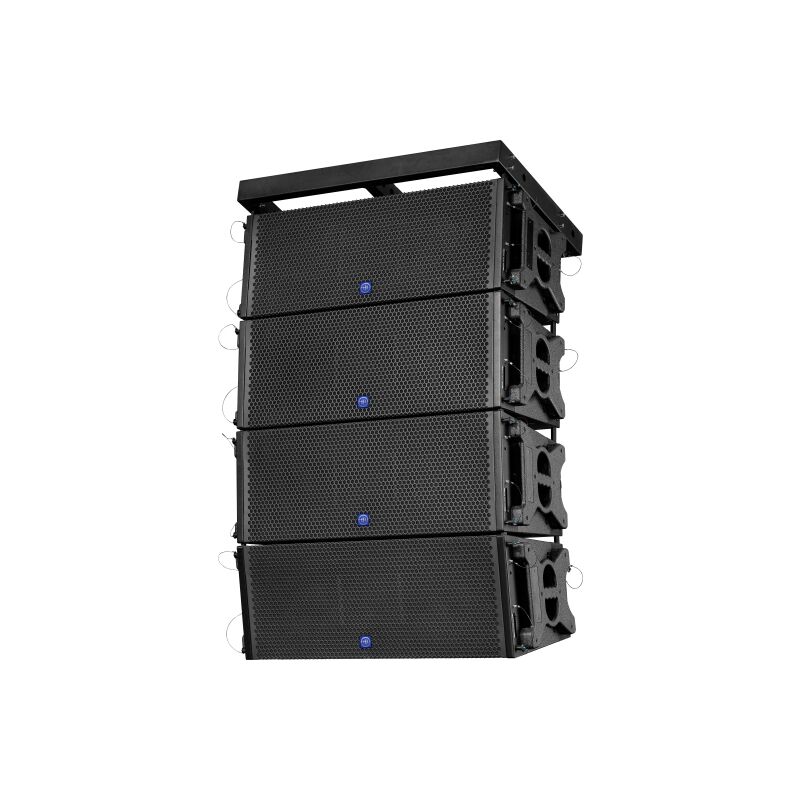

The Ly310 line array speaker boasts excellent clarity, superior audio performance, an exceptionally smooth frequency response even at long distances, remarkable dynamic bandwidth, as well as extremely high power and dynamic headroom. In any type of sound reinforcement system application, it is the best choice for medium to large-scale line array systems.

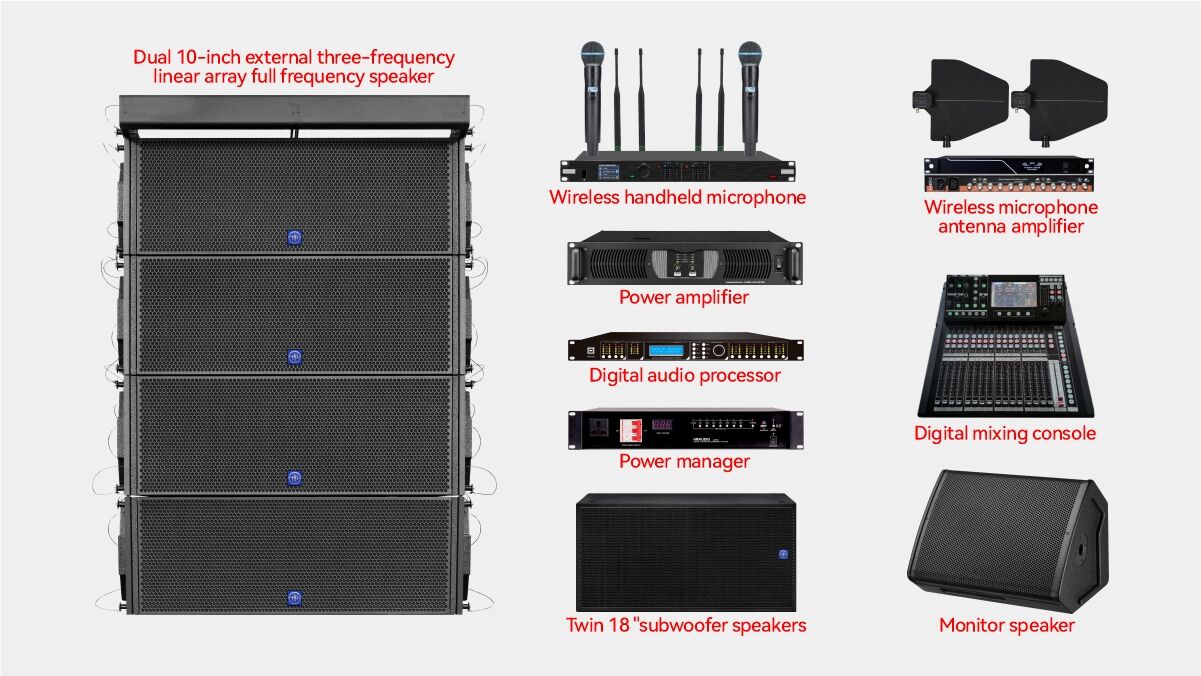

Dual 10-inch external three-frequency linear array full frequency speaker
| Product Model: | Ly310 |
| Product Type: | 2X10" Linear Array External Three-way Speaker |
| Frequency Response: | 55Hz - 18KHz |
| Covering Angle (-6dB) | 90°X10° |
| SPL Max: LF: | 125dB/131(Peak)MF:125dB/131(Peak)HF:129dB/135(Peak) |
| Sensitivity: | LF:97dB/MF:99dB/HF:109dB |
| Rated Impedance: | LF:82/MF:82/HF:82 |
| Rated Power: | LF:600W/MF:400W/HF:120W |
| Woofer: | 2 X 10" |
| Midrange: | 4 X 5" |
| Tweeter: | 2 X 3" |
| Dimensions: | 946*465*310mm (W*D*H) |
| Weight: | 35kg |

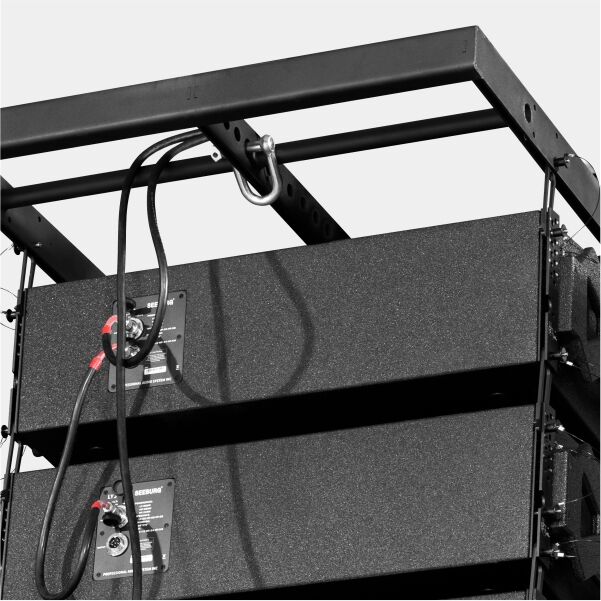

| Connection Socket: | LF+/-:1/2MF+/-:3/4HF+/-:5/6(2x6-core aviation waterproof socket) |

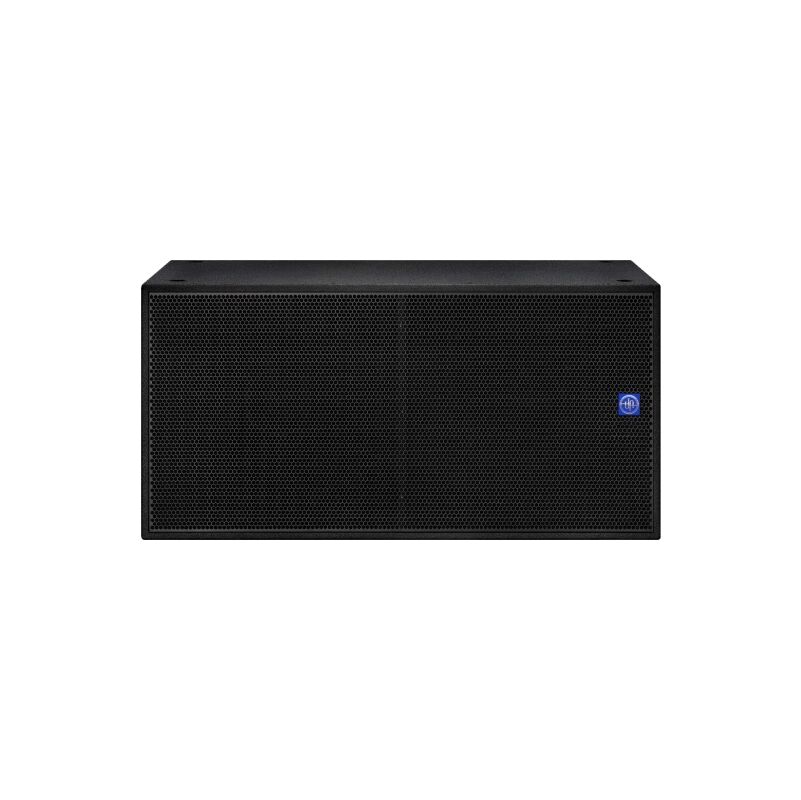

Twin 18 "subwoofer speakers
| Product Model: | KD-218 |
| Product Type: | Twin 18 "subwoofer speakers |
| Impedance: | 4Ω |
| Frequency response: | 35Hz-200Hz |
| Sensitivity: | 98dB/W/m |
| Composition: | 18" (220 magnetic 100 cores) ×2 |
| Average power: | 2000W |
| Peak power: | 4800W |
| Size: | 1060*760*550mm(W*D*H) |
| Maximum sound pressure level : | 130dB (continuous) 136dB (peak) |
Monitor speaker (all-weather waterproof)
| Product Model: | NM-12M |
| Product Type: | Monitor speaker |
| Impedance: | 8Ω |
| Frequency response: | 65Hz-18.5KHz |
| Sensitivity: | 102dB/W/m |
| Diffusion Angle: | 90°H x 90°V |
| Construction: | 12"" (190 magnetic 75 core) +1.7"" Horn (44 core) unit |
| Average power: | 400W |
| Frontal power: | 1600W |
| Size: | 460*300*460(W*D*H) |
| Maximum sound pressure level : | 132dB |
| Weight: | 17kg |
| Gross weight : | 19kg |
