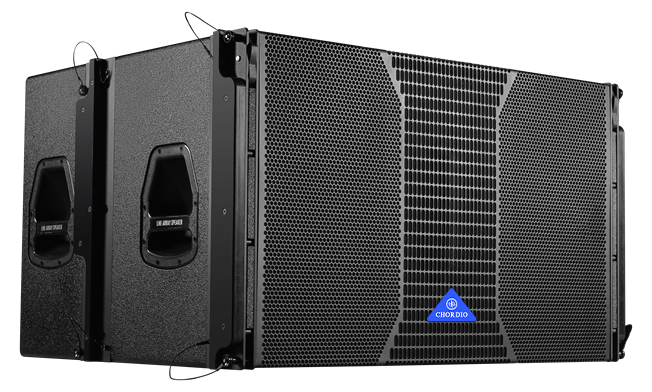

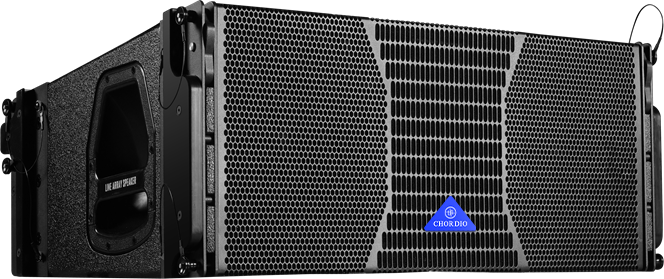

The V210 is a dual 10-inch three-way line array speaker. It adopts full horn loading technology and linear array technology to achieve the best dynamic effect. When extremely low frequencies are required, the V210S can be selected to form a full horn seamless four-way frequency system.

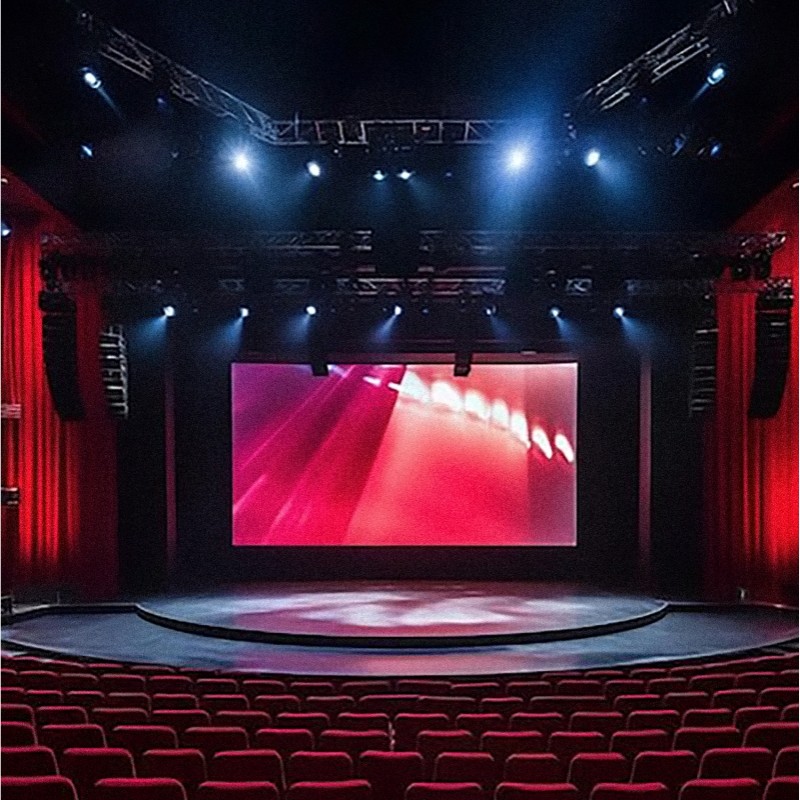

It is mainly applied to large-scale sound reinforcement venues such as large-scale performances, music festival performances, outdoor squares, school auditoriums, stadium theaters, lecture halls, and hotel banquet halls.

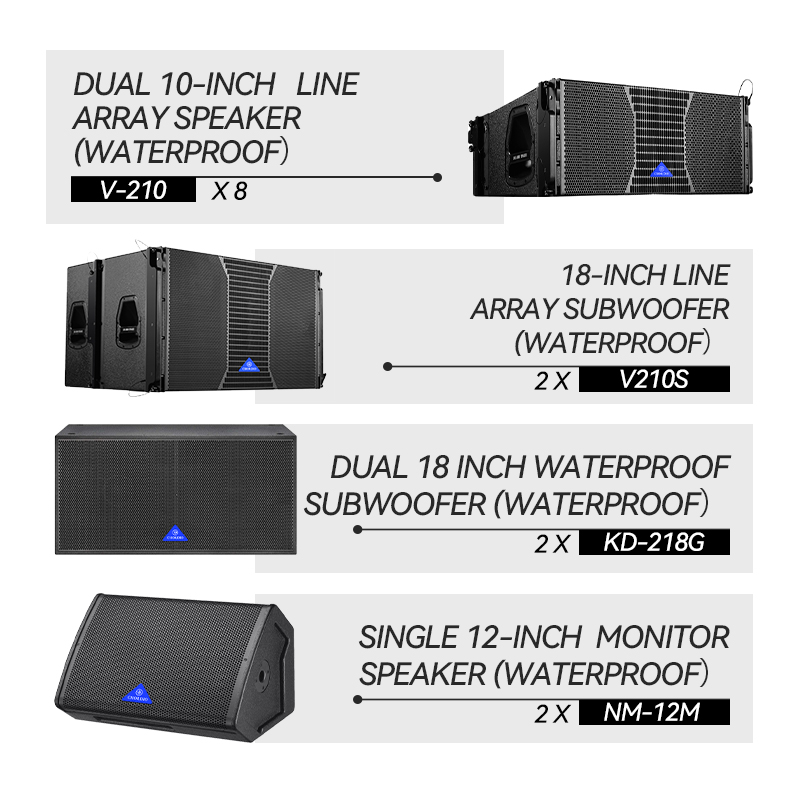

Dual 10-inch built-in three-way line array speaker
| Product Model: | V210 |
| Product Type: | 2X10" Linear Array Built-in Three-way Speaker |
| Frequency Response: | 90Hz-18kHz (±3dB) |
| Frequency range: | 30Hz-20kHz |
| Input impedance: | 8Ω |
| Sensitivity: | 109dB SPL 1w/1m |
| Rated Power: | 850W |
| Tweeter: | 2x44mm Voice Coil Neodymium Magnet |
| Midrange: | 8-inch 135mm Magnet Steel / 51mm Voice Coil |
| Woofer: | 2x170mm Magnet Steel / 75mm Voice Coil |
| Maximum sound pressure level: | 141dB SPL |
| Sound field radiation range: | Horizontal 110°, Vertical: 20° |
| Input interface: | 2xNeutrik® NL4MP |
| Cabinet size: | 300mm*958mm*495mm |
| Net weight: | 45kg |
Single 18 -inch Subwoofer
| Product Model: | V210S |
| Product Type: | Single 18-inch Subwoofer |
| Frequency Range: | 40Hz - 500Hz |
| Frequency response: | 50Hz - 450Hz (±3dB) |
| Sensitivity: | 104dB SPL 1w/1m |
| Input Impedance: | 8Ω |
| Rated Power: | 800W |
| Woofer: | 220mm Magnet / 100mm Voice Coil |
| Maximum SPL: | 136dB SPL |
| Input Interface: | 2xNeutrik® NL4MP Cabinet |
| Dimensions: | 550mm*955mm*730mm |
| Net Weight: | 75kg |
Dual 18-inch Subwoofer
| Product Model: | KD-218G |
| Product Type: | Dual 18-inch Subwoofer |
| Impedance: | 4Ω |
| Frequency Response: | 35Hz-200Hz |
| Sensitivity: | 98dB/W/m |
| Composition: | 18" (220 magnets, 100-core) × 2 |
| Maximum Sound Pressure Level: | 130dB (Continuous) / 136dB (Peak) |
| Average Power: | 2000W |
| Peak Power: | 4800W |
| Dimensions: | 1060x760x550mm |
