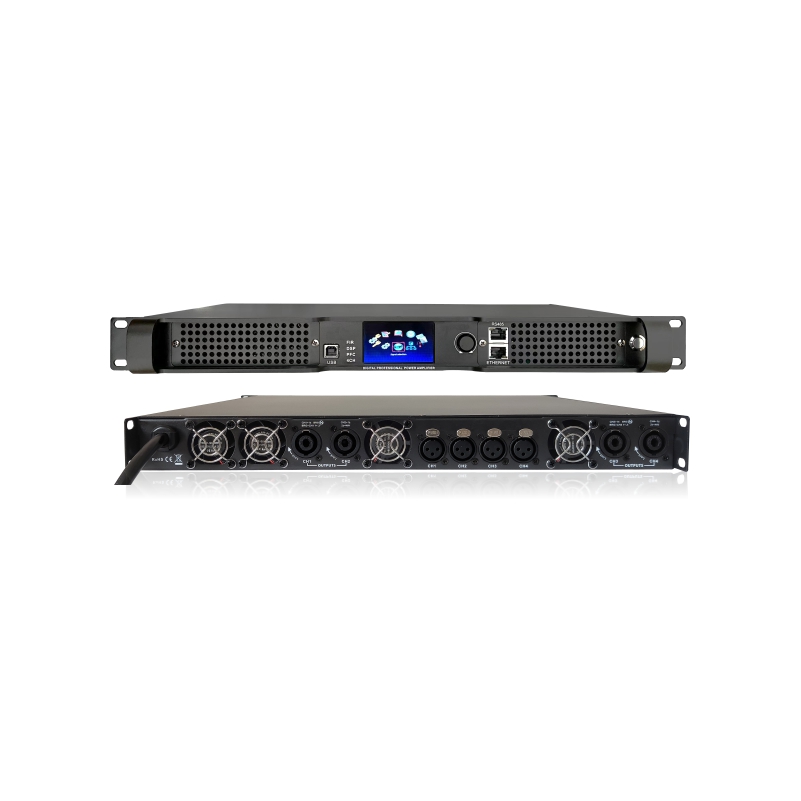

Series DH, 4 Channels

The DH Series represents our company's professional digital power amplifiers featuring exceptional cost - effectiveness. These amplifiers incorporate advanced Class - D power amplifier modules and high - efficiency switching mode power supply (SMPS) modules. They come with a built - in DSP processor, are equipped with FIR filters, and are provided with various debugging ports (including a USB interface). Each input and output channel can be configured with a total of 31 equalization bands. The equalization modes include parametric equalization (PEQ), low - shelf filtering (Lo - Shelf), and high - shelf filtering (Hi - Shelf).Widely used in applications such as bar DJ performances, conference presentations, wedding receptions, stage performances, and other events.

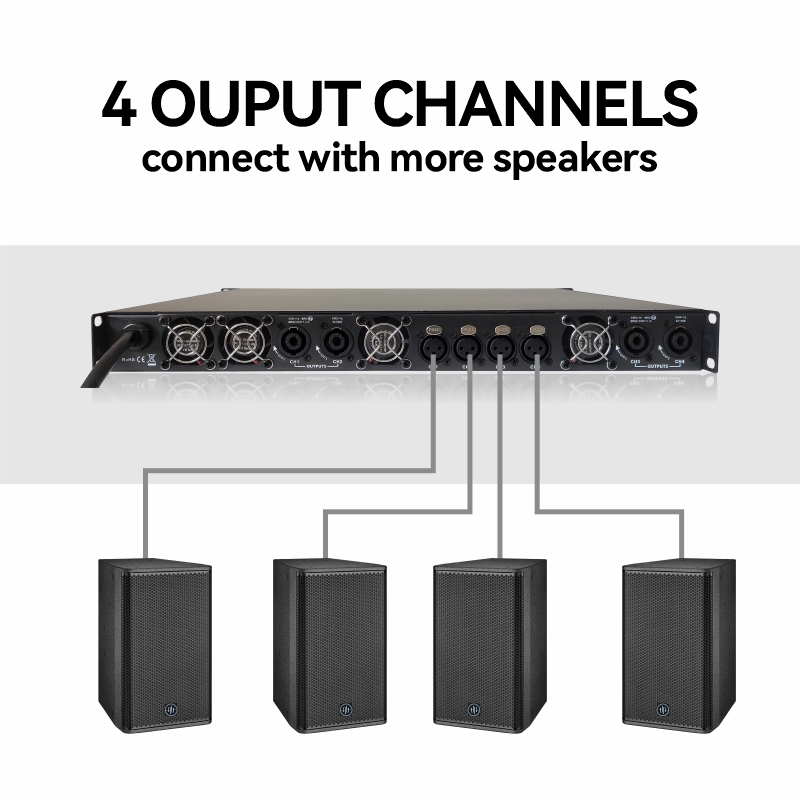

You can choose between a 2-channel or 4-channel model.

Product Parameters

Model number:	DH4-350	DH4-500	DH4-650	DH4-800	DH4-1000	DH4-1500	DH4-2000
8Ω Output power:	350W×4	500W×4	650W×4	800W×4	1000W×4	1500W×4	1800W×4
4Ω Output power:	580W×4	800W×4	1050W×4	1300W×4	1700W×4	2300W×4	2300W×4
8Ω Bridge power:	1160W×2	1600W×2	2100W×2	2600W×2	3400W×2	4600W×2	4600W×2
Frequency response:	20Hz-25kHz<±0.5dB	20Hz-25kHz<±0.5dB	20Hz-25kHz<±0.5dB	20Hz-25kHz<±0.5dB	20Hz-25kHz<±0.5dB	20Hz-25kHz<±0.5dB	20Hz-25kHz<±0.5dB
Power supply:	90V-265V/50Hz-60Hz	90V-265V/50Hz-60Hz	90V-265V/50Hz-60Hz	90V-265V/50Hz-60Hz	90V-265V/50Hz-60Hz	90V-265V/50Hz-60Hz	90V-265V/50Hz-60Hz
Damping coefficient:	600	600	600	600	600	600	600
THD:	≤ 0.05%	≤0.05%	≤0.05%	≤0.05%	≤0.05%	≤0.035%	≤0.035%
SNR:	104dB	104dB	104dB	104dB	104dB	106dB	106dB
Input impedance:	Balance 20K/unbalance10K	Balance 20K/unbalance10K	Balance 20K/unbalance11K	Balance 20K/unbalance11K	Balance 20K/unbalance12K	Balance 20K/unbalance12K	Balance 20K/unbalance13K

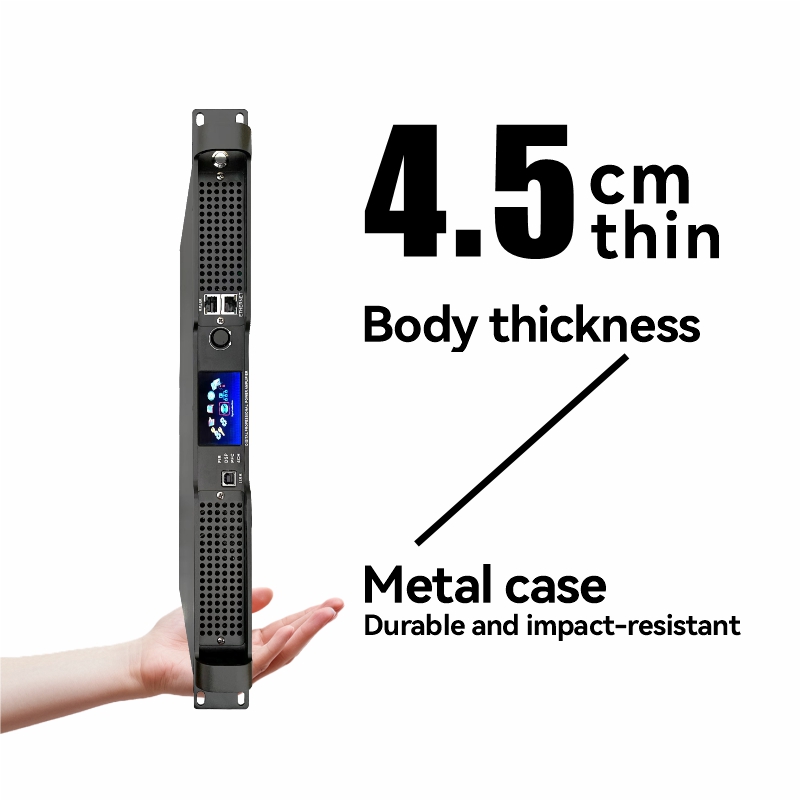

Size:	48322845mm	48322845mm	48322845mm	48322845mm	48322845mm	48338145mm	48338145mm
Net weight:	6kg	6.2kg	6.5kg	6.8kg	7kg	10.2kg	10.2kg

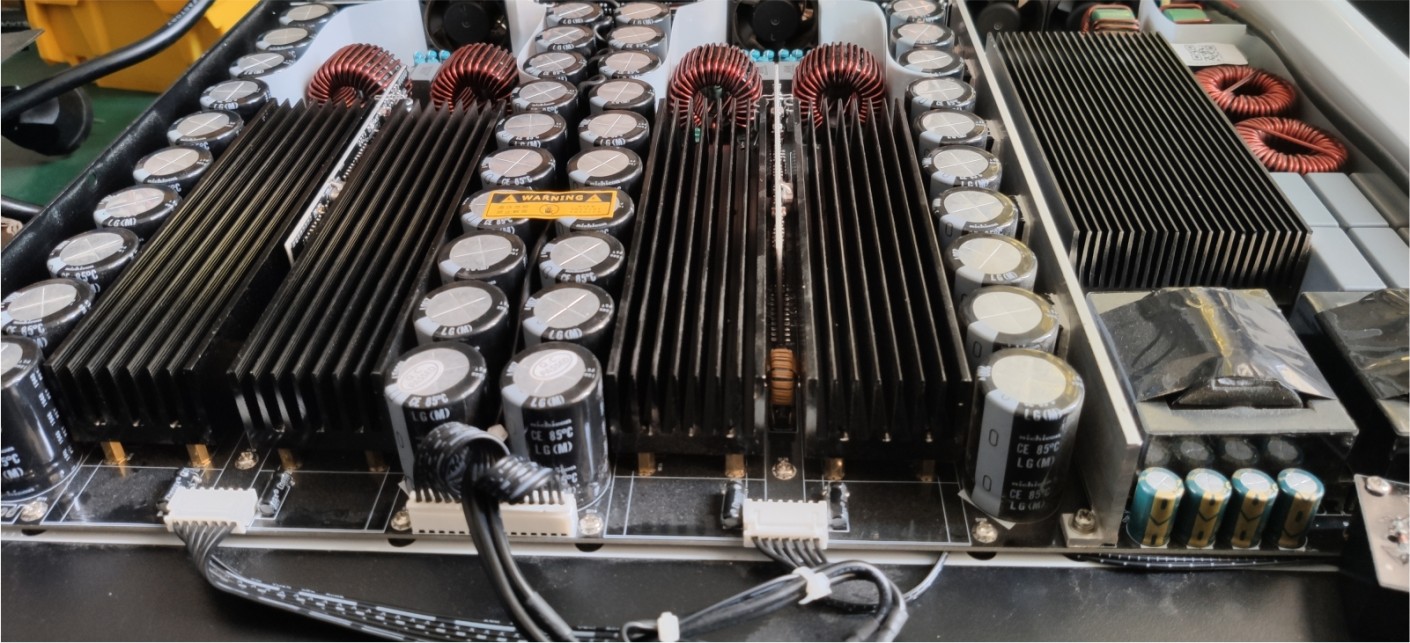

Manufacturing. Professionalism. High Quality
A source factory with over 20 years of experience, a globally leading one-stop professional power amplifier and audio equipment manufacturer.

▼ The DSP Series professional power amplifiers feature advanced Class D amplifier modules and high-efficiency SMPS power supplies, with built-in DSP for complete digital control.
▼ Processor Specifications: 294.912MHz 32-bit DSP processor, 96kHz sampling rate with 24-bit A/D and D/A conversion.
▼ LCD Display: Backlit 2x16 character LCD display.
▼ Routing: Each output channel can independently select different input channels or any combination thereof.
▼ Gain: Adjustable from +15dB to -40dB in 0.1dB steps.
▼ Equalization (EQ): Up to 31 EQ bands per input/output channel with modes: PEQ/Low Shelf/High Shelf.
▼ Crossover: Low-pass filter (LPF), High-pass filter (HPF), Filter Type (PF Mode).

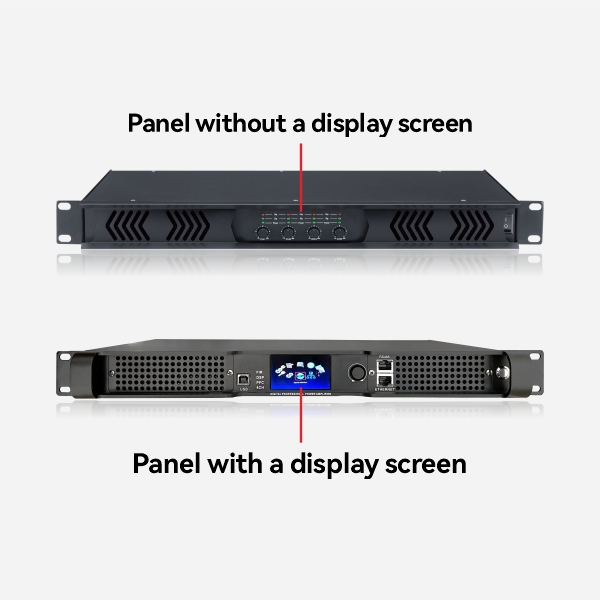

The panels of this series of power amplifiers can be customized, with options of either with a screen or without a screen

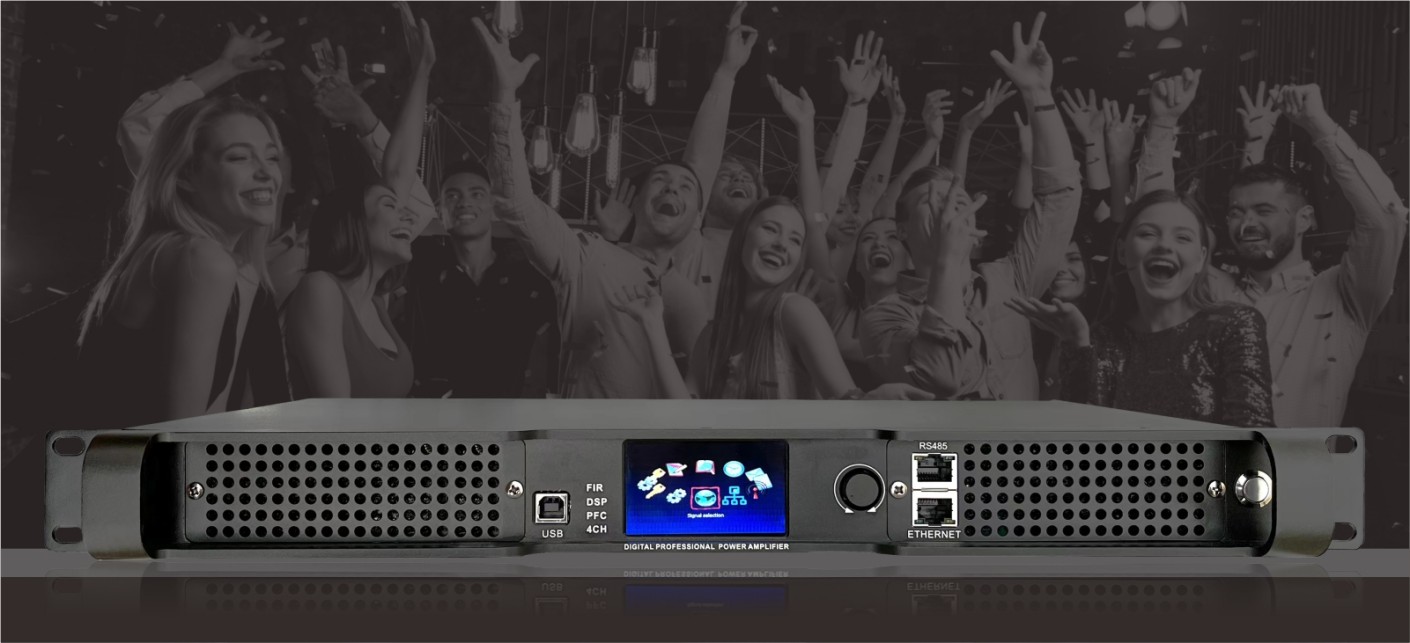

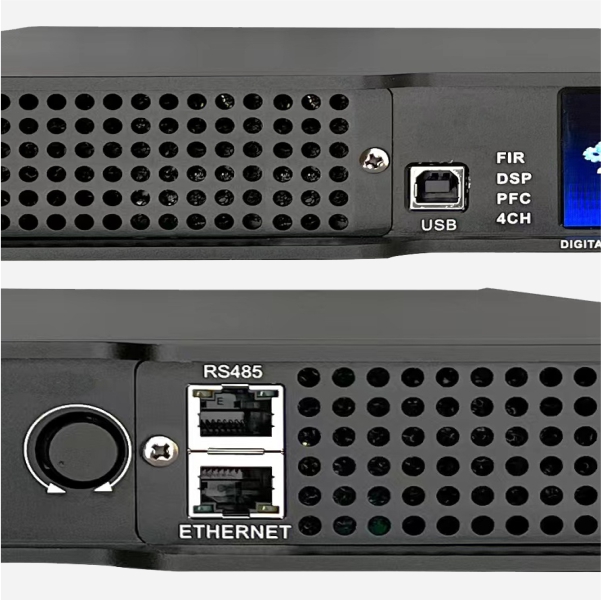

The panel with a screen is equipped with a USB interface, an RS485 debugging port, and an Ethernet debugging port

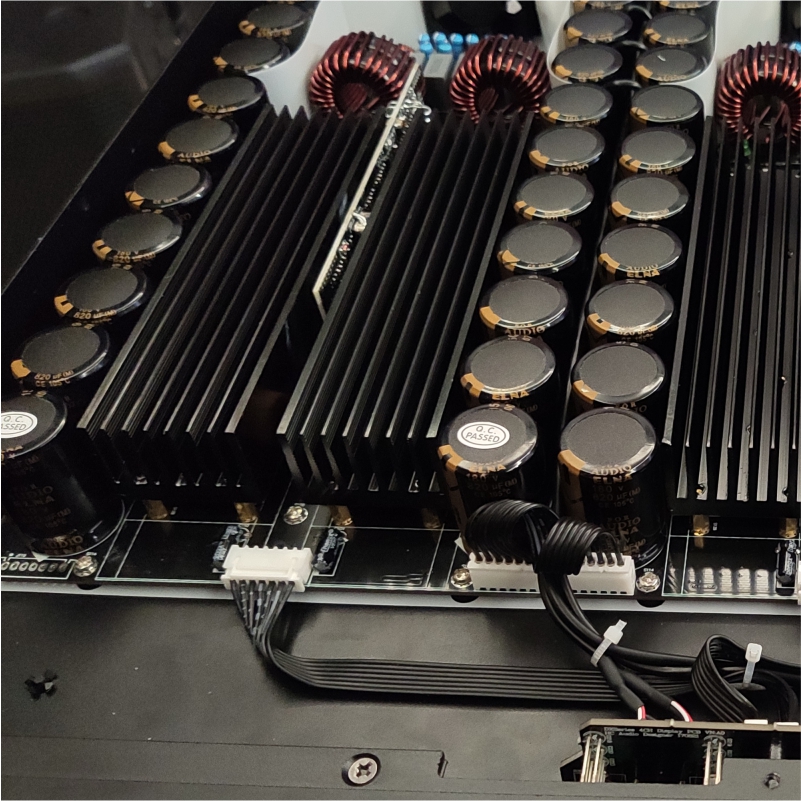

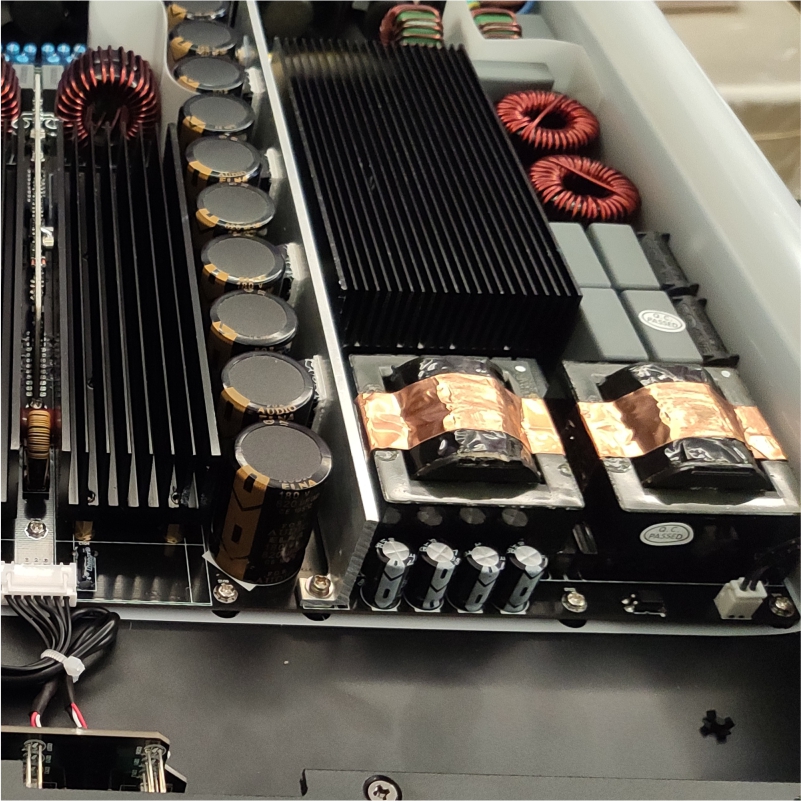

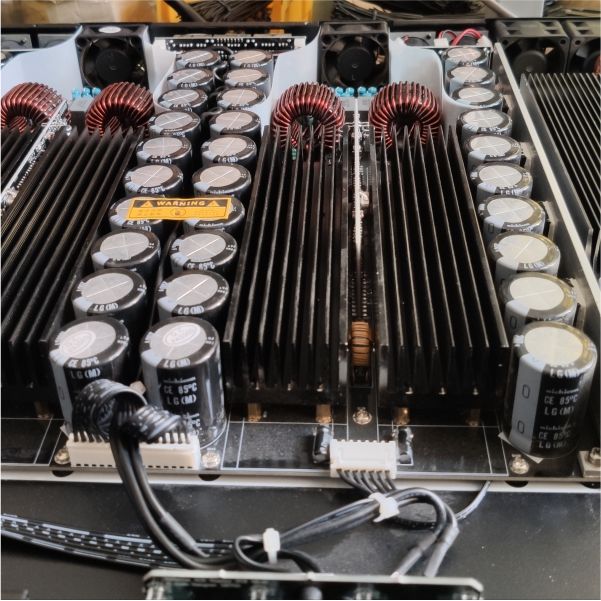

Digital power amplifier adopts digital technology circuit board, Full patch components, stable performance and high quality

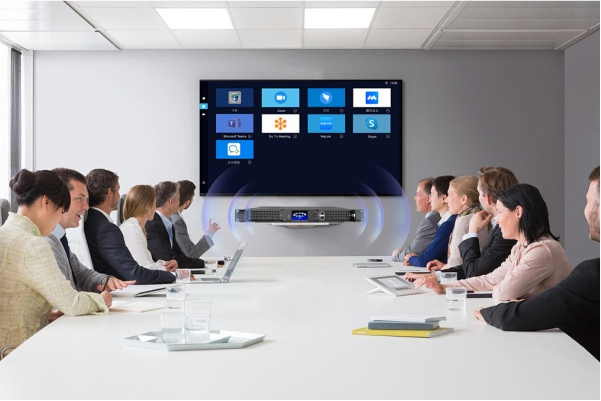

Application scenarios

CHORDIO products are sold in more than 100 countries around the world and have gained a good reputation among numerous customers. Our company provides a full set of professional audio systems, which are suitable for various events. These include product launches, weddings, hotels, churches, stadiums, stage performances, DJ shows, party concerts, and more. Our top engineers and sales team are ready to offer all the services and products you need.
