The CH212 is a high-performance two-way dual 12" line array full-range speaker system. Equipped with two 12-inch low-frequency drivers and one 3-inch high-frequency driver, it incorporates an integrally molded line array horn design to achieve a wide frequency response of 55Hz–20kHz, accurately covering sound details across the entire frequency spectrum.
Ideal for sound reinforcement in stadiums, auditoriums, multi-functional halls, medium to large-scale mobile performances, and other such venues.
Line Array Full-Range Speaker
| Model: | CH212 |
| Type: | 2-Way Dual 10" Speaker System |
| Woofer： | 2 x 10" Low-Frequency Drivers |
| Tweeter： | 1 x 3" Imported Celestion High-Frequency Driver |
| Nominal Impedance: | 8Ω |
| Power Handling: | 650W |
| Frequency Response: | 65Hz - 20kHz |
| Dispersion (-6dB): | 90°H x 10°V |
| Sensitivity: | 101dB |
| Maximum SPL: | 129dB Continuous / 135dB Peak |
| Connectors： | 2 x Speakon NL4 |
| Speaker size: | 851*425*295mm |
| Net Weight: | 29kg |

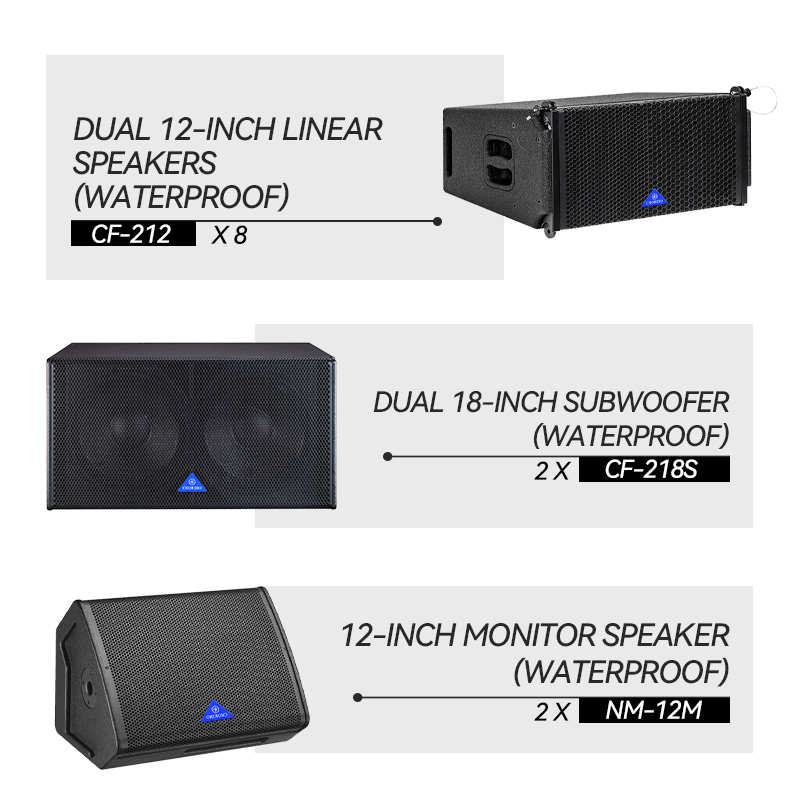

Line Array Subwoofer
| Model: | CH218S |
| Type: | 2×18" Line Array Subwoofer |
| Woofer: | 2 x 18" Low-Frequency Drivers |
| Frequency response: | 30Hz–150Hz (±3dB) |
| Sensitivity: | 118dB |
| Maximum SPL: | 146dB |
| Impedance: | 8Ω |
| Continuous Power: | 1300W |
| Recommended Power: | 1500W |
| Peak Power: | 4000W |
