CH210-Line Array Full-Range Speaker

The CH210 is a high-performance two-way dual 10" line array full-range speaker system. Equipped with two 10-inch low-frequency drivers and one 3-inch high-frequency driver, it incorporates an integrally molded line array horn design to achieve a wide frequency response of 65Hz–20kHz, accurately covering sound details across the entire frequency spectrum.

Ideal for sound reinforcement in stadiums, auditoriums, multi-functional halls, medium to large-scale mobile performances, and other such venues.

Product Parameters

Twin 10-inch linear speakers

Model:	CH210
Type:	2-Way Dual 10" Speaker System
Woofer：	2 x 10" Low-Frequency Drivers
Tweeter：	1 x 3" Imported Celestion High-Frequency Driver
Nominal Impedance:	8Ω
Power Handling:	650W
Frequency Response:	65Hz - 20kHz
Dispersion (-6dB):	90°H x 10°V
Sensitivity:	101dB
Maximum SPL:	129dB Continuous / 135dB Peak
Connectors：	2 x Speakon NL4
Speaker size:	851425295mm
Net Weight:	29kg

18 "subwoofer

Model:	CH218S
Type:	1×18" Subwoofer
Woofer:	1 x 18" Low-Frequency Drivers
Frequency response:	40Hz–1000Hz
Sensitivity:	118dB
Maximum SPL:	129dB
Impedance:	8Ω
Power Handling:	600W
Connection:	2x Speakon NL4
Product dimensions：	851645581mm
Net Weight:	50kg

Manufacture. Professionalism

Dual 10-inch low-frequency drivers combined with a 3-inch imported high-frequency driver create a two-way crossover system, achieving a frequency response from 65Hz to 20kHz. This configuration spans the entire vocal and instrumental frequency spectrum, delivering delicate timbre and powerful dynamics. The one-piece line array horn optimizes sound wave dispersion, with a 90° horizontal × 10° vertical coverage pattern that minimizes environmental reflection interference. Ideal for long-throw applications, it ensures uniform sound distribution in large venues such as stadiums and auditoriums.

Material introduction

The cabinet is constructed with multi-layer birch plywood and coated with a wear-resistant finish, offering impact resistance and durability for frequent transportation in mobile applications. With a lightweight design of 29kg and ergonomic handles, it supports both floor-standing placement and truss hanging installation, enabling system setup within 10 minutes to enhance venue deployment efficiency.

Reinforced metal grille

The speaker is equipped with a reinforced metal grille lined with acoustic breathable mesh, which balances dust protection and acoustic transmission efficiency. This design effectively resists external impacts and dust ingress, providing comprehensive physical protection for the drivers and extending the equipment's service life.

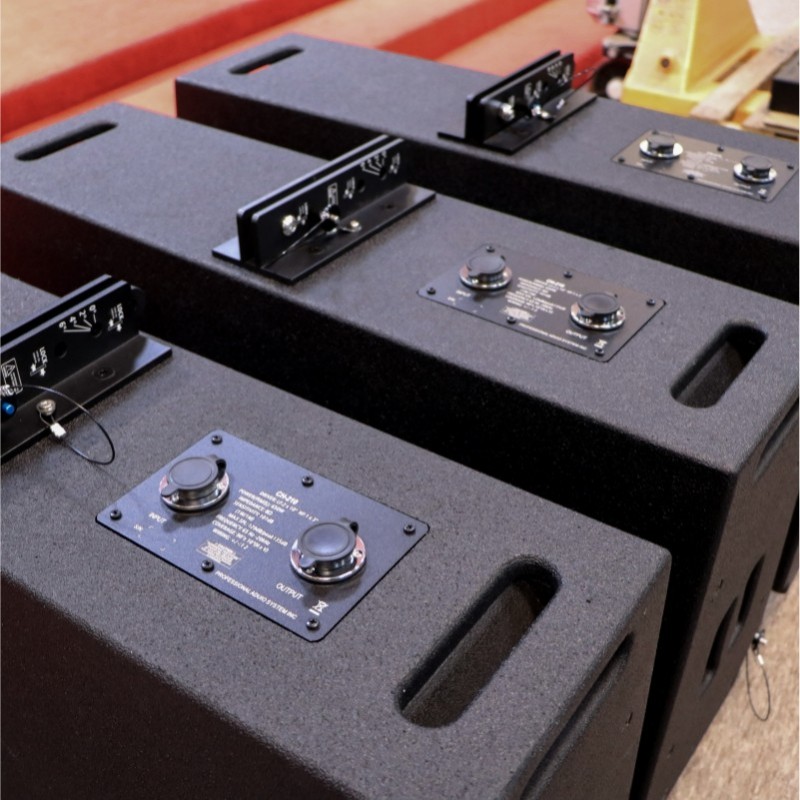

Ergonomic Handles

Ergonomic handles and simple yet secure hanging fixtures support quick floor placement or truss mounting. Combined with Speakon NL4 parallel interfaces, multi-speaker line array setup can be completed within 10 minutes, significantly enhancing deployment efficiency for mobile performances.

Birch Plywood Cabinet

The cabinet is constructed with multi-layer birch plywood and coated with a waterproof and impact-resistant polyurea finish, capable of withstanding harsh outdoor environments and frequent handling wear.

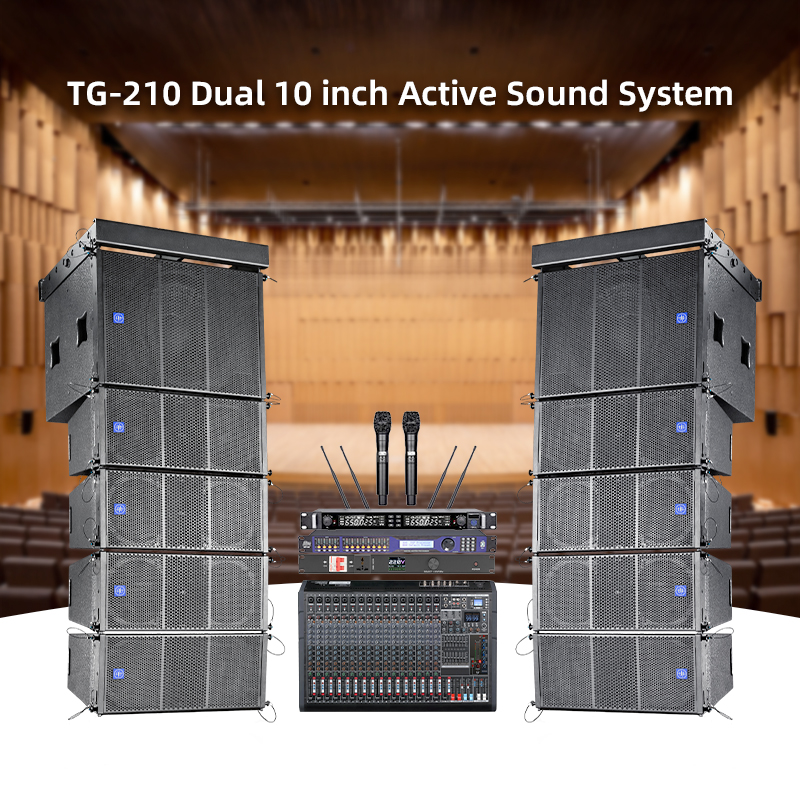

Application scenarios

CHORDIO products are sold in more than 100 countries around the world and have gained a good reputation among numerous customers. Our company provides a full set of professional audio systems, which are suitable for various events. These include product launches, weddings, hotels, churches, stadiums, stage performances, DJ shows, party concerts, and more. Our top engineers and sales team are ready to offer all the services and products you need.
