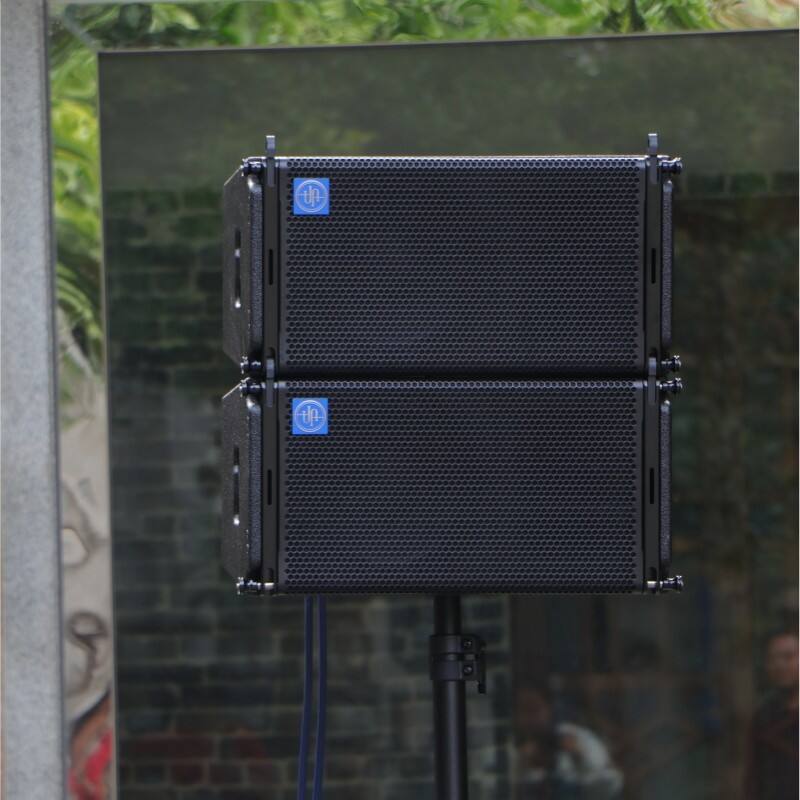

T10-Coaxial line array

T10, as an active mobile line array, is an audio sound reinforcement device. It features a structure with multiple speakers arranged in a straight line, strong vertical directivity, and an active design. In terms of sound characteristics, it has a narrow vertical directivity, horizontal directivity according to the design, and a flat frequency response. In terms of mobility, it is portable and easy to load and unload.

It is applied to sound reinforcement venues such as large-scale performances, conferences, and mobile performances. It can be adjusted as needed, providing clear sound reinforcement and enabling rapid system setup.

Product Parameters

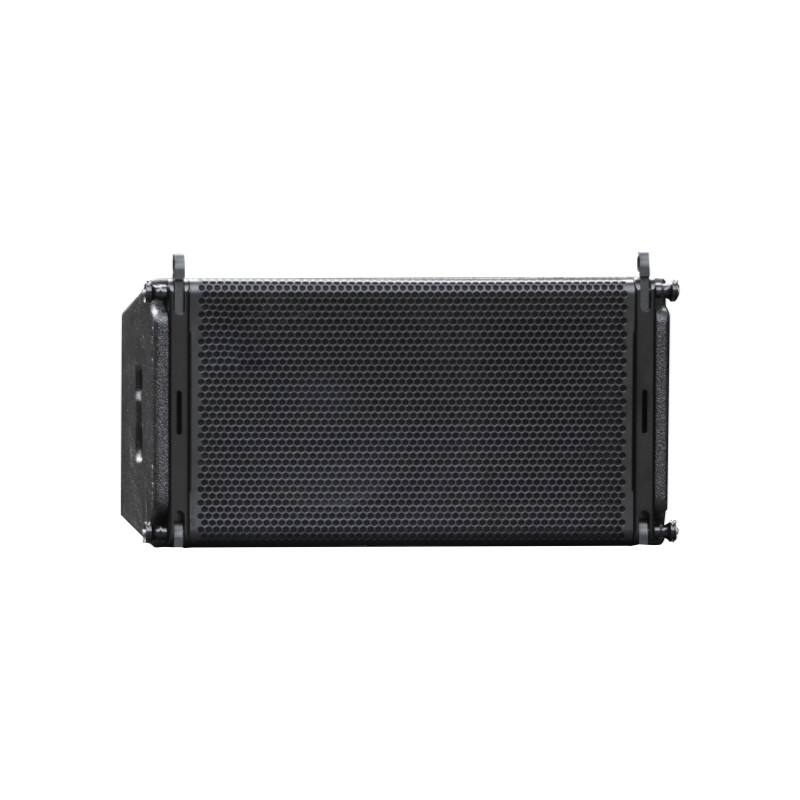

Single 10-inch line array speaker

Product Model:	T10
Product Type:	1×10" Line Array Speaker
Woofer：	10-inch , 180 magnet , 75-core voice coil
Tweeter：	85 magnet, 44-core voice coil
Continuous Power:	400W
Peak Power:	1600W
Frequency Response:	75Hz–20KHz
Nominal Impedance:	8Ω
Sensitivity:	100dB (1W/1m)
Maximum SPL：	Continuous:126dB，Peak:132dB
Directivity：	90° × 0–10°
Cabinet Dimensions:	522278355mm

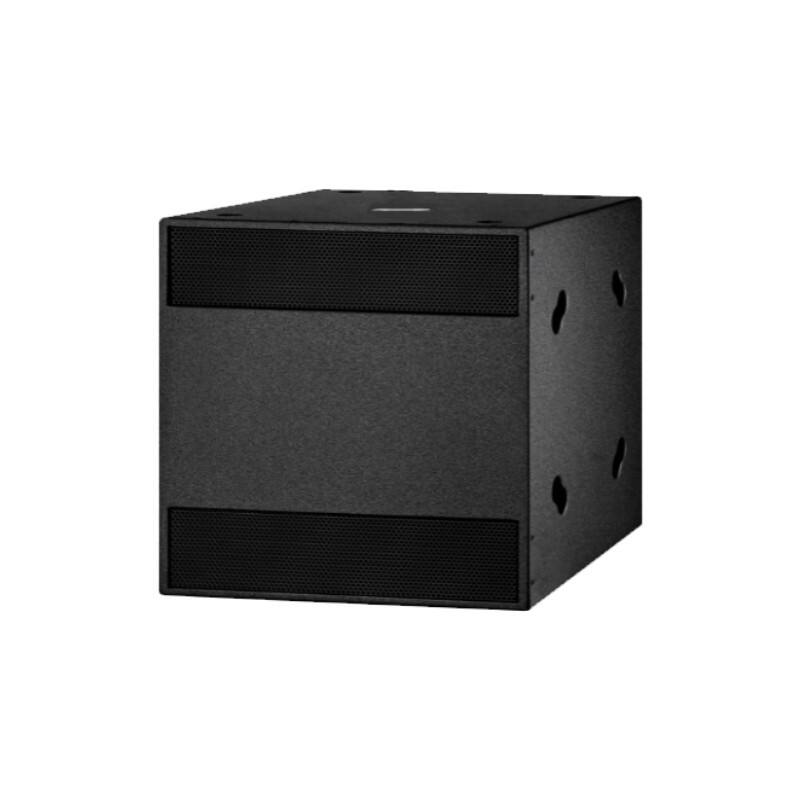

Single 18-inch Subwoofer

Model:	T18S
Woofer:	18-inch Driver, 220 Magnet, 100-core Voice Coil
Continuous Power:	700W
Peak Power:	2600W
Frequency Response:	38Hz-200Hz
Nominal Impedance:	8Ω
Sensitivity:	103dB (1W/1m)
Max SPL:	134dB (Continuous) / 140dB (Peak)
Directivity:	N/A
Input Connector:	Neutrik NL4MP x2
Cabinet Dimensions:	600768700mm

Manufacture. Professionalism

T10, a single 10-inch line array speaker, features a custom-designed driver unit and a 15mm wooden plywood cabinet coated with waterproof paint, ensuring both light weight and durability. It boasts excellent acoustic efficiency, adept at accurately restoring sound details while enhancing sound pressure output, meeting the clear sound reinforcement needs of small and medium-sized venues. Whether for indoor performances or outdoor activities, it delivers richly layered sound quality.

Material introduction

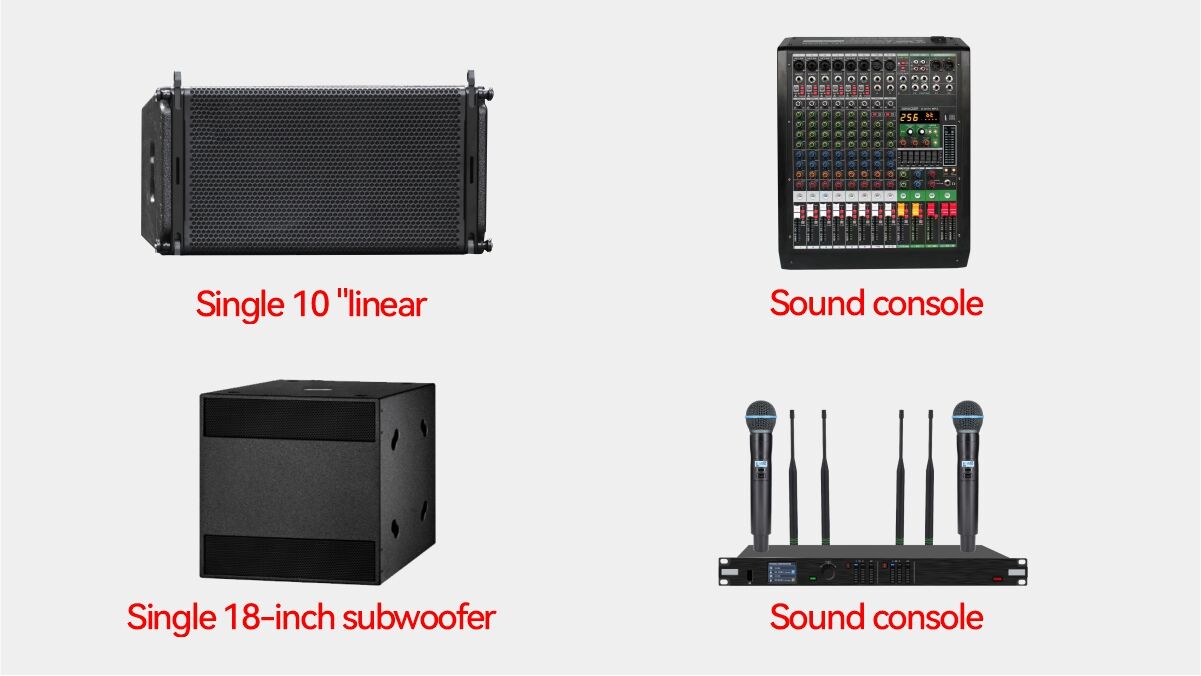

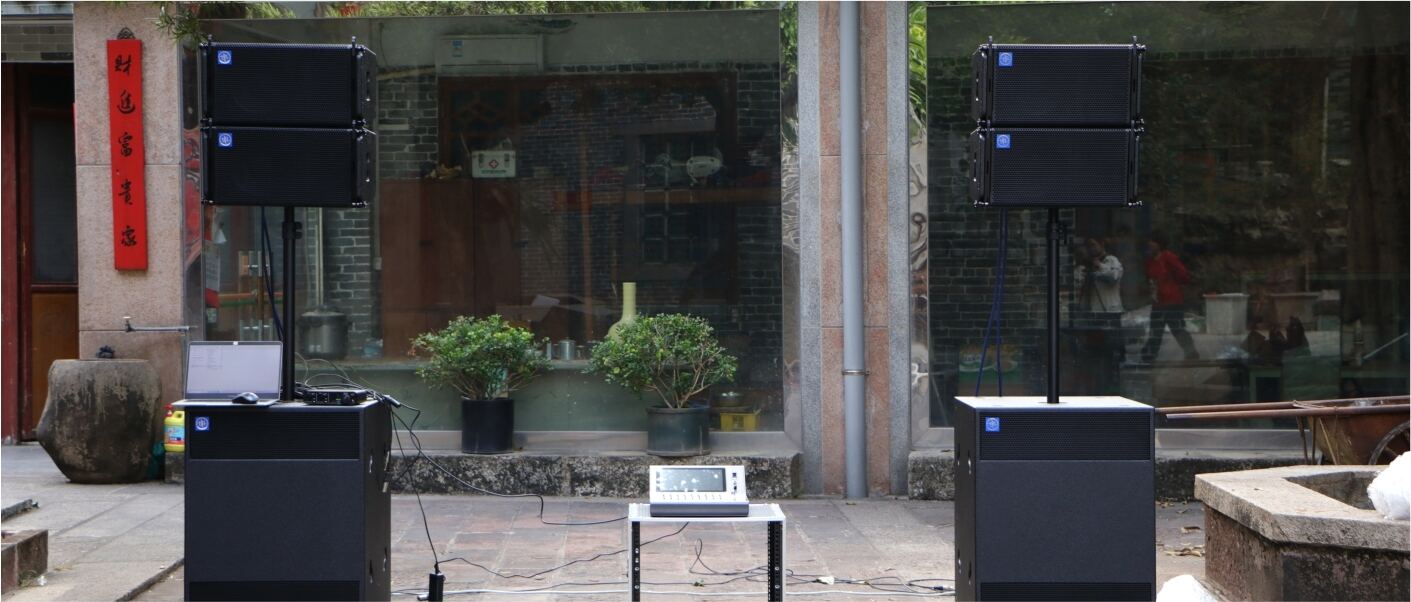

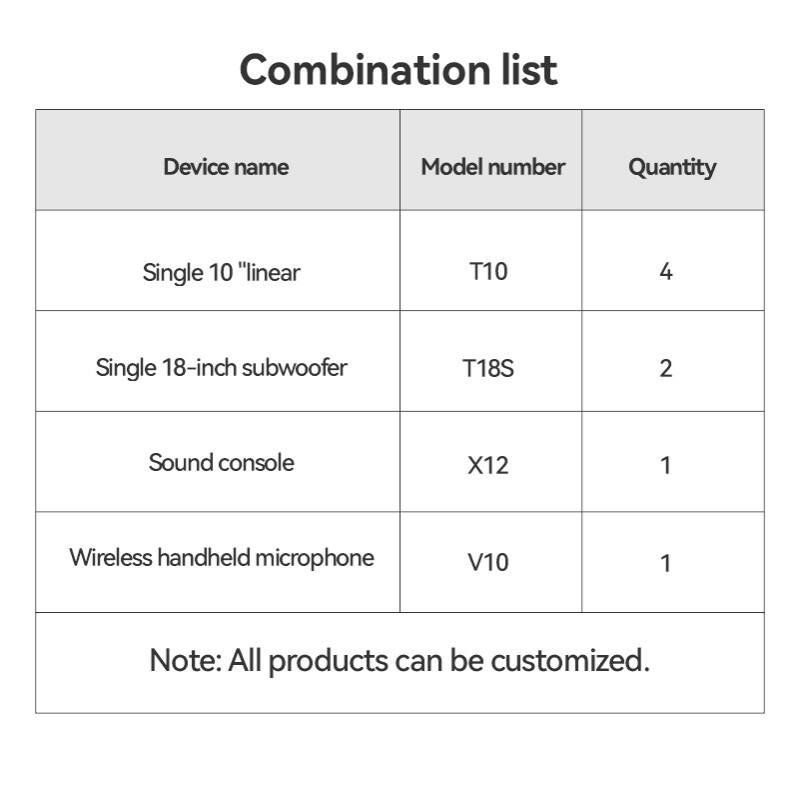

The system stands out for its flexible configuration options, supporting integration with an 18-inch subwoofer (available in both passive and active versions). The powerful low-frequency output fills the bottom end of the audio spectrum, delivering a more immersive and impactful sound experience. Designed with installation efficiency in mind, the enclosure features user-friendly rigging systems and lightweight construction, enabling quick setup and teardown for stage systems or mobile applications. This makes it an ideal solution for professional audio applications requiring speed, versatility, and high performance.

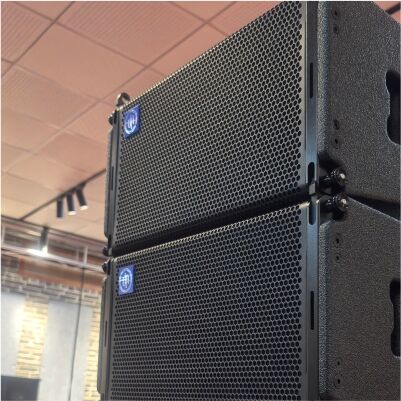

Thickened metal mesh cover

Constructed with high-strength metal materials, the mesh cover features a significantly increased thickness, with structural strength far exceeding previous generations. The dense grid design forms a robust protective barrier, effectively resisting external impacts and dust intrusion, providing more comprehensive physical protection for the speakers, extending equipment service life, and balancing durability with the stability of sound quality transmission.

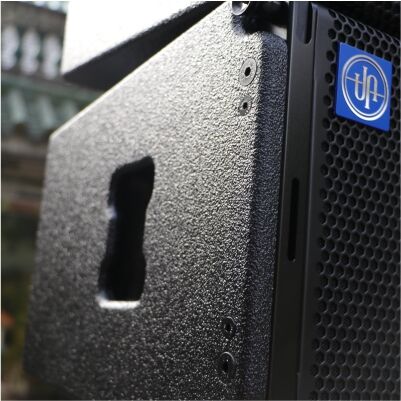

Ergonomic side handle

The speaker is equipped with an integrally formed handle on the side, designed with an ergonomic arc that fits the palm comfortably and provides a non-slip grip. It allows for smooth force application during transportation, effectively reducing carrying pressure and making the handling process more convenient and labor-saving. These thoughtful details reflect practical ingenuity.

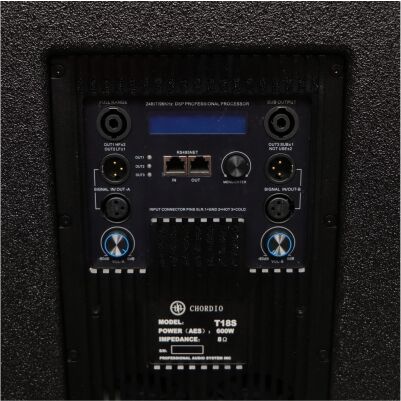

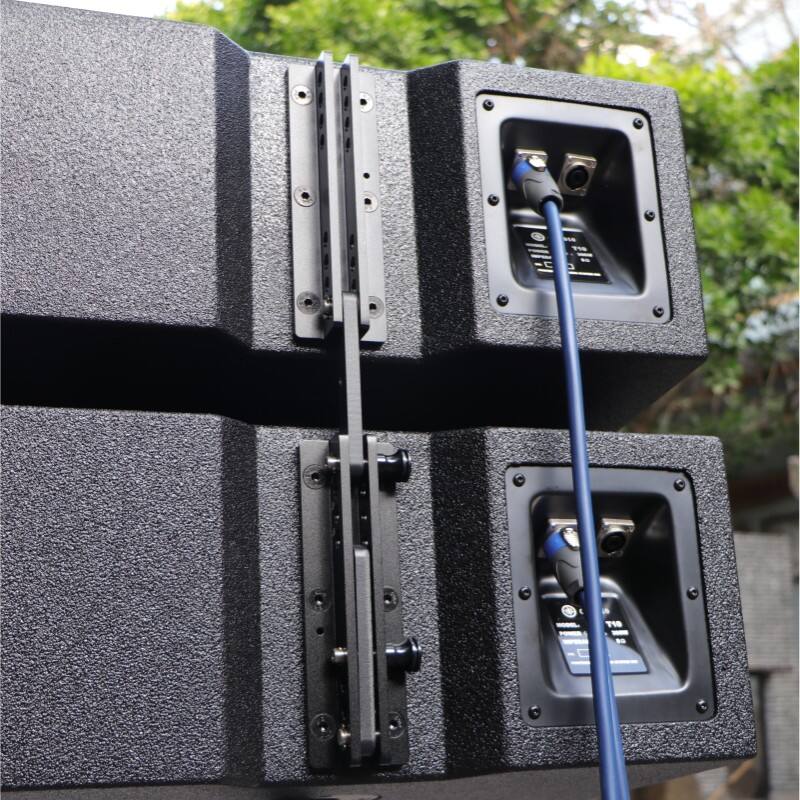

Input Connectors: Neutrik NL4MP × 2

Professional audio-grade connectors support parallel connection, facilitating multi-speaker networking. They can be paired with line array systems or passive/active subwoofers (such as 18-inch subwoofers) to flexibly expand sound field coverage.

Application scenarios

CHORDIO products are sold in more than 100 countries around the world and have gained a good reputation among numerous customers. Our company provides a full set of professional audio systems, which are suitable for various events. These include product launches, weddings, hotels, churches, stadiums, stage performances, DJ shows, party concerts, and more. Our top engineers and sales team are ready to offer all the services and products you need.
