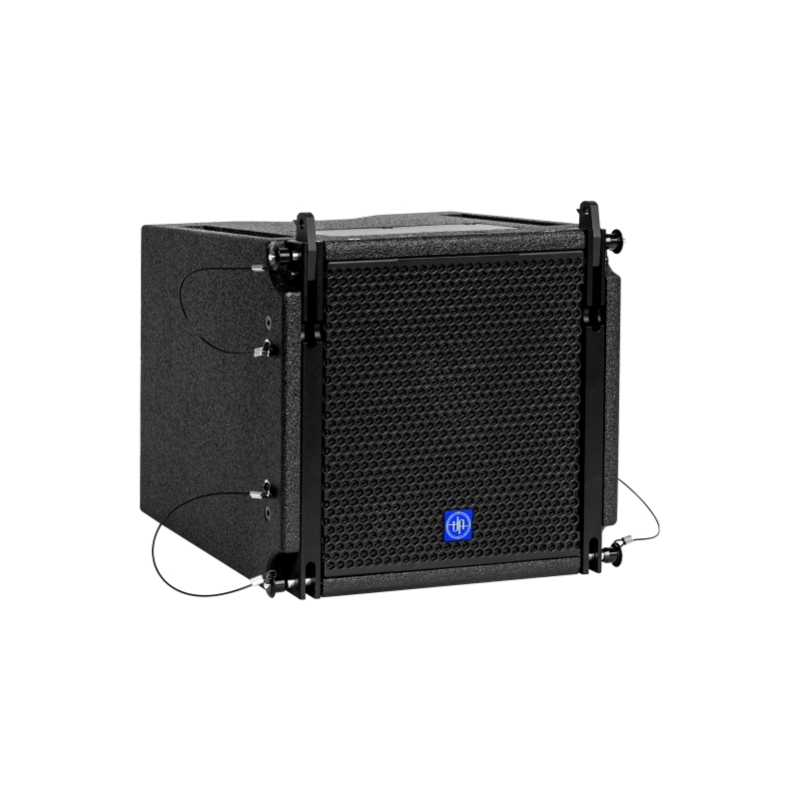

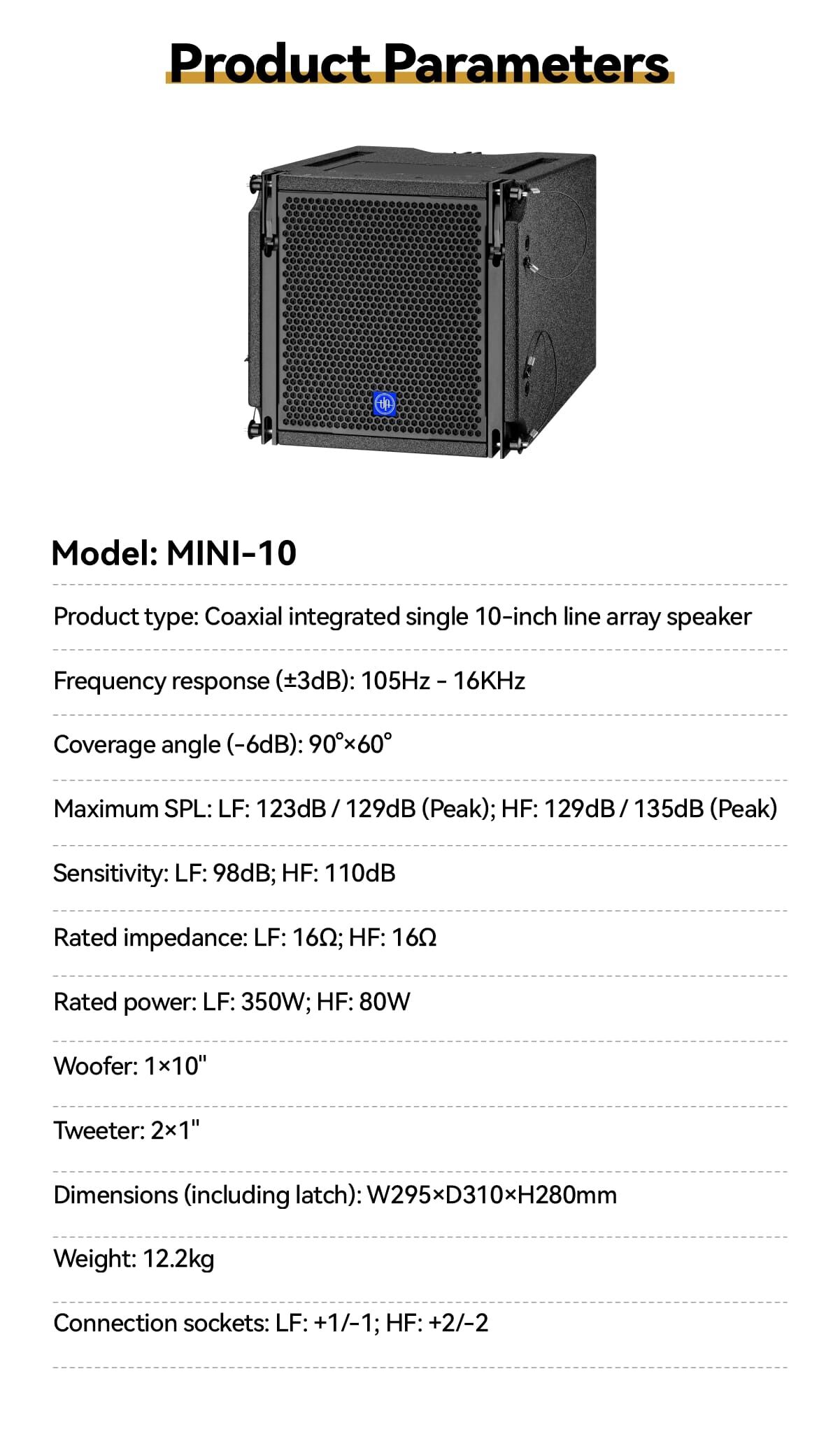

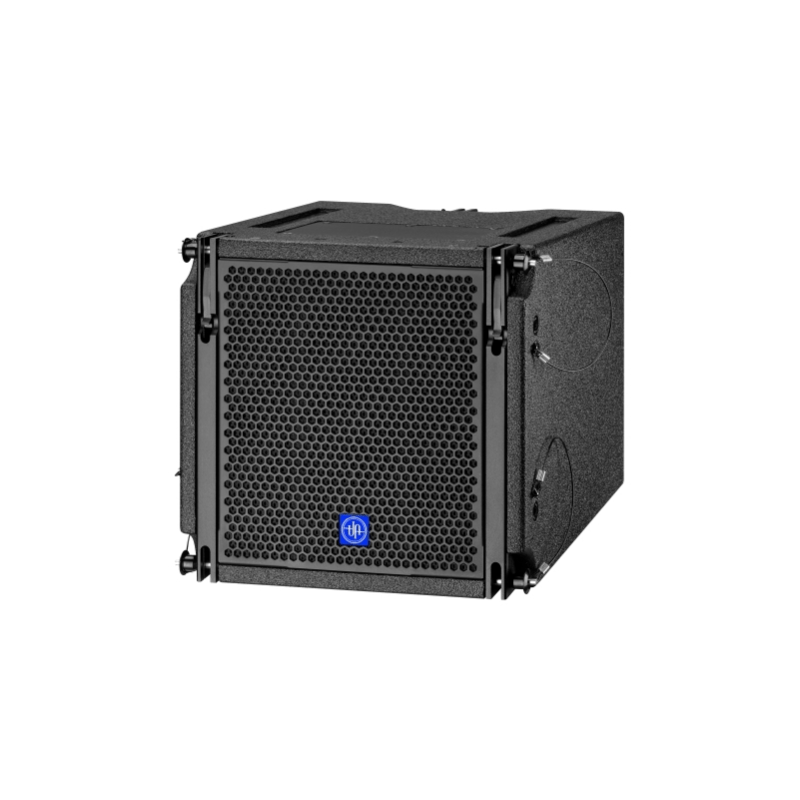

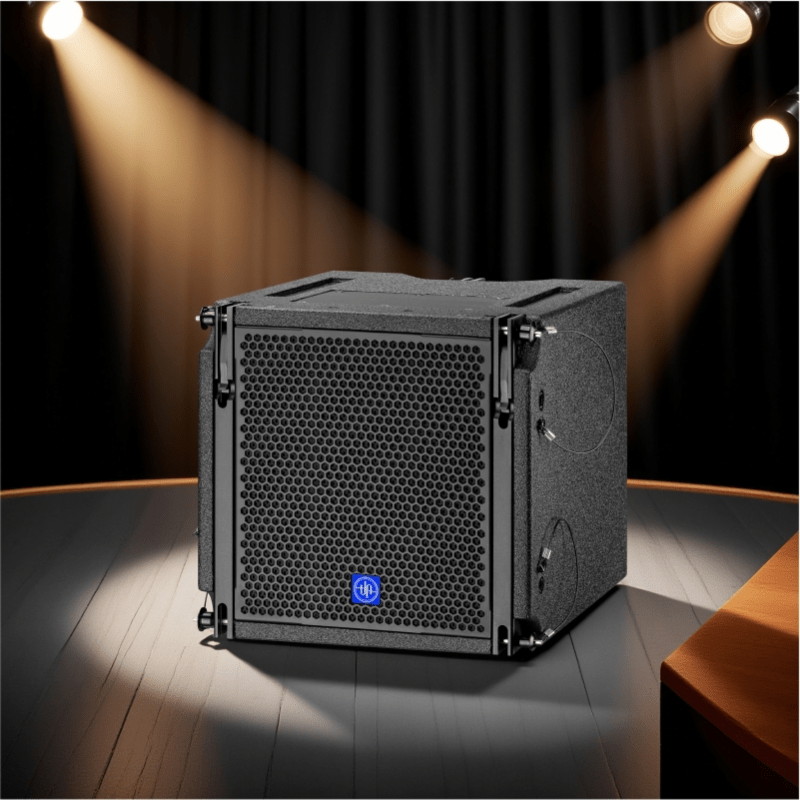

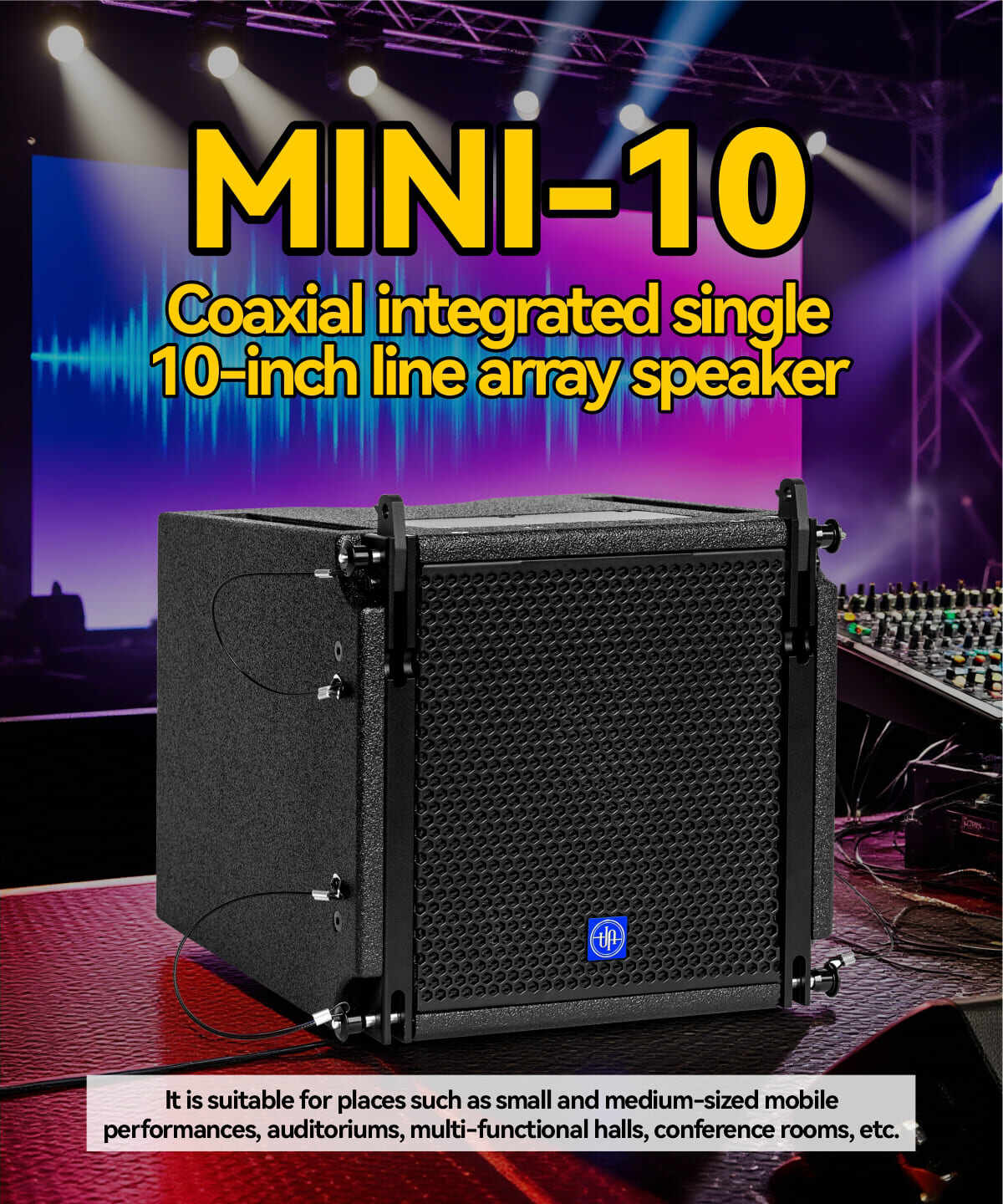

| Model | MINI - 10 |

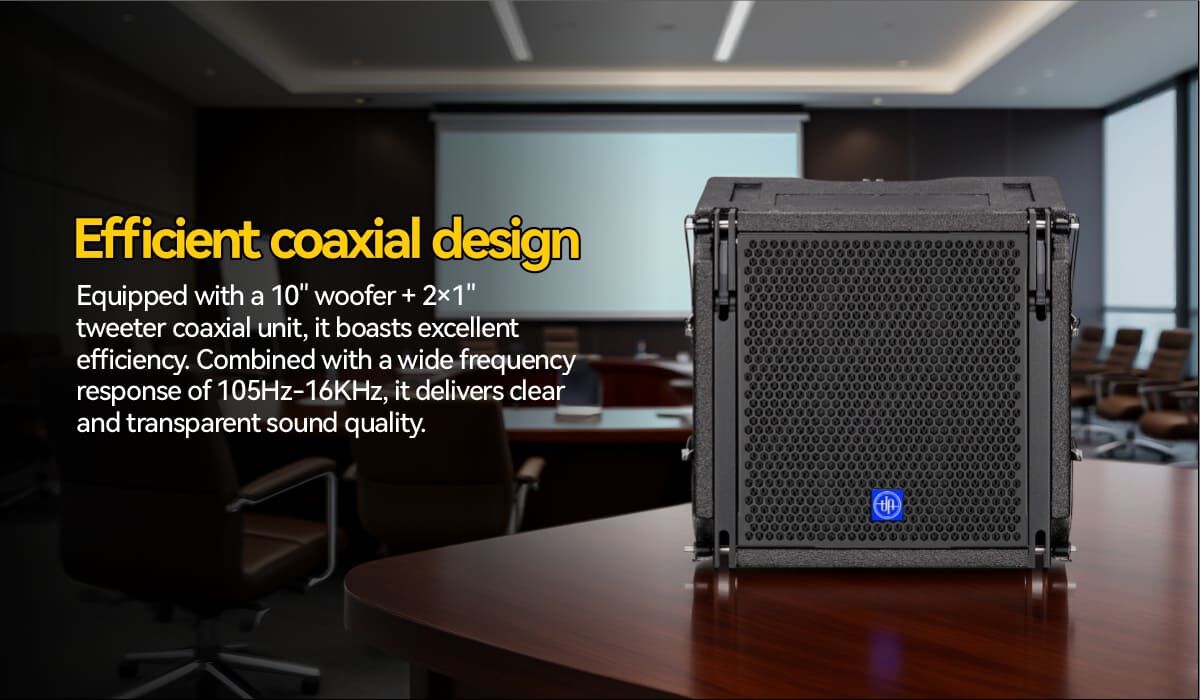

| Category | 1×10" external two-way linear array speaker |
| Frequency response (±3dB) | 105Hz - 16KHz |
| Coverage angle (-6dB) | 90°×60° |
| Maximum SPL | LF: 123dB / 129dB (Peak); HF: 129dB / 135dB (Peak) |
| Sensitivity | LF: 98dB; HF: 110dB |
| Rated impedance | LF: 16Ω; HF: 16Ω |
| Rated power | LF: 350W; HF: 80W |
| Woofer | 1×10" |
| Tweeter | 2×1" |
| Dimensions (including latch) | W295×D310×H280 (mm) |
| Weight | 12.2kg |

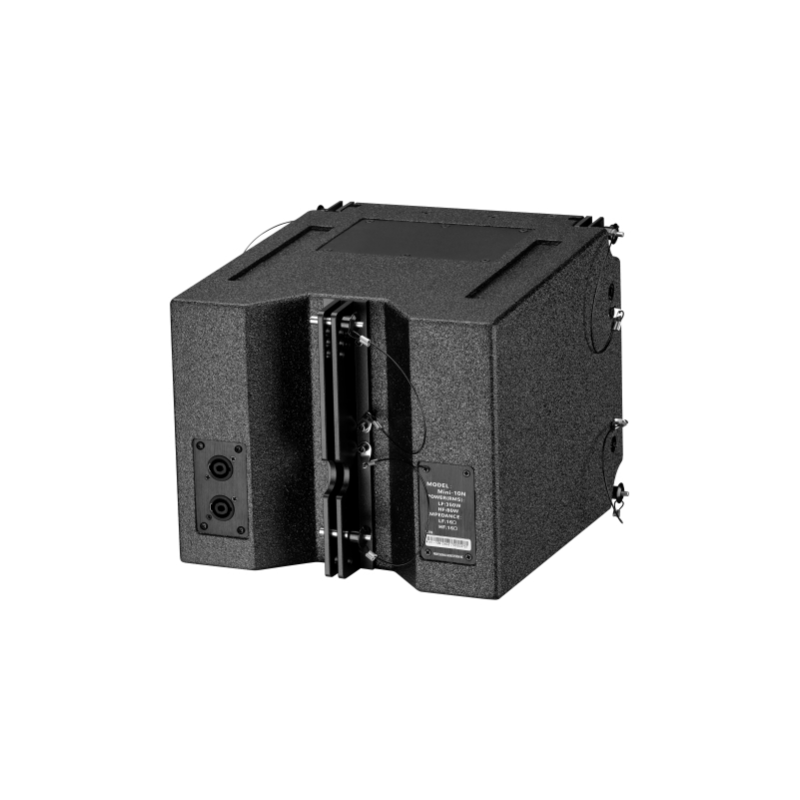

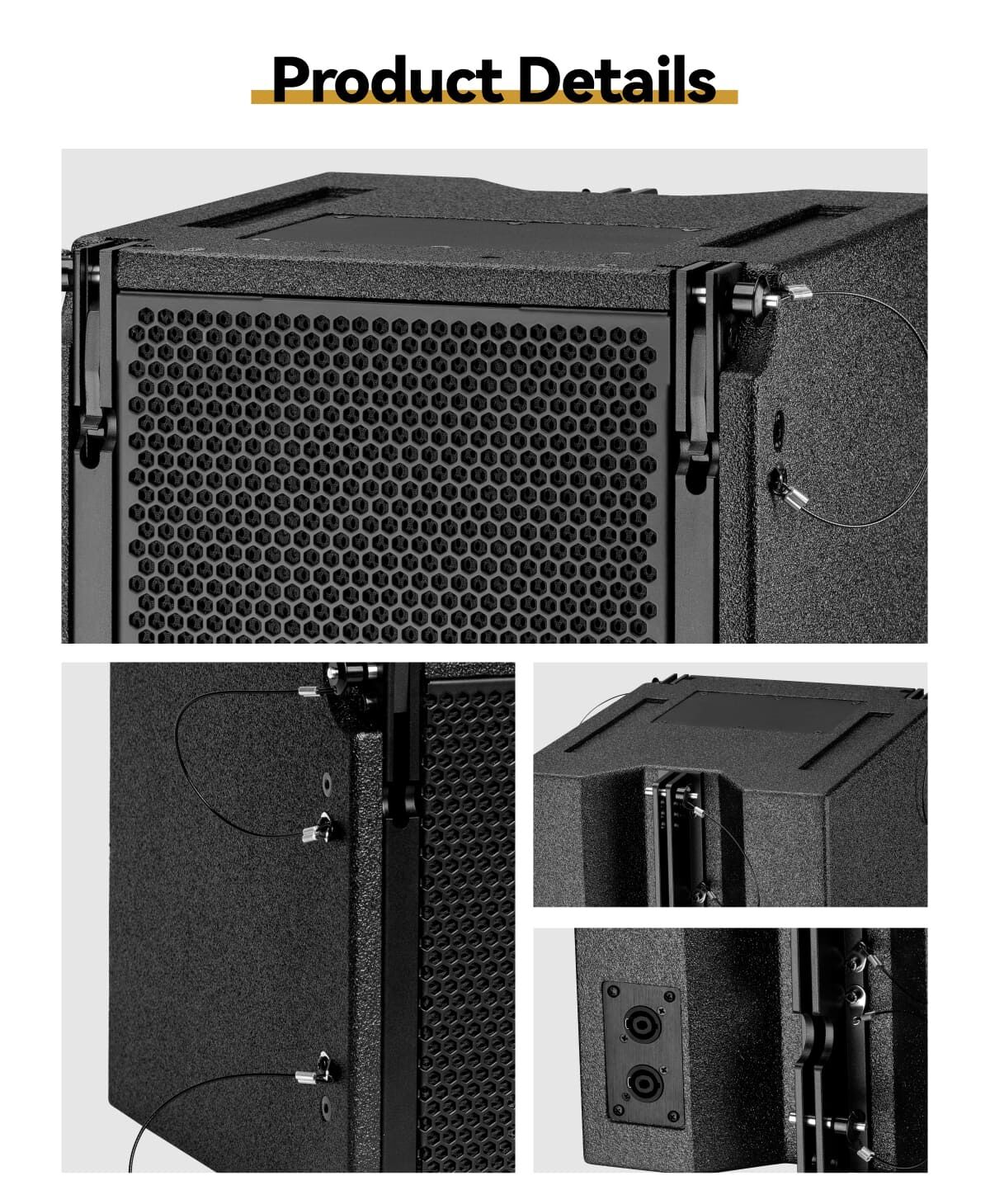

| Connection sockets | LF: +1 / -1; HF: +2 / -2 |
