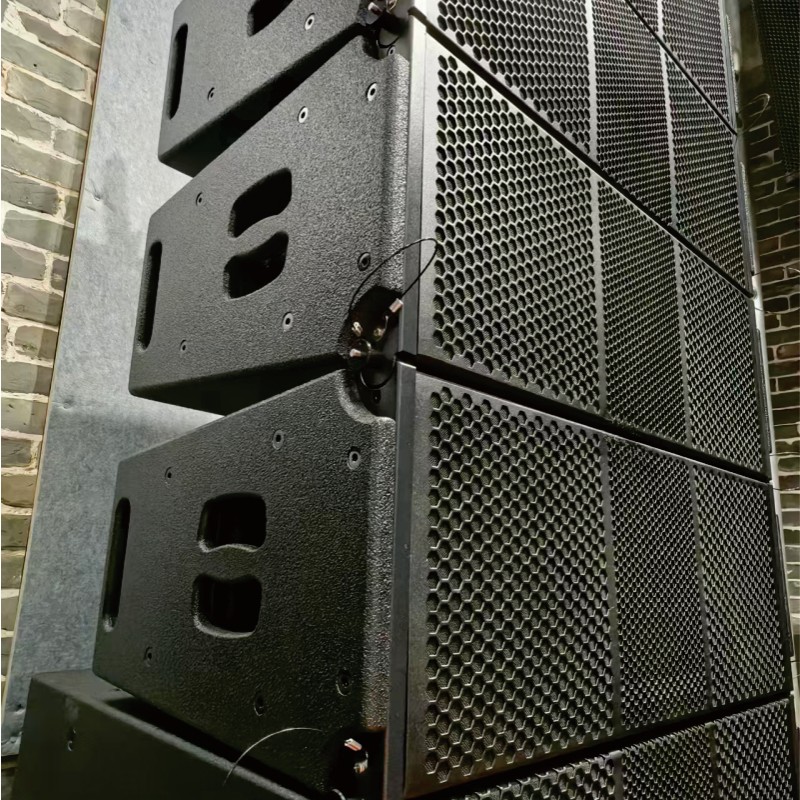

CH208-Line Array Full-Range Speaker

The CH208 is a high-performance two-way dual 8" line array full-range speaker system. Equipped with two 8-inch low-frequency drivers and one 3-inch high-frequency driver, it incorporates an integrally molded line array horn design to achieve a wide frequency response of 65Hz–20kHz, accurately covering sound details across the entire frequency spectrum.

Ideal for sound reinforcement in stadiums, auditoriums, multi-functional halls, medium to large-scale mobile performances, and other such venues.

Product Parameters

Dual 8 - inch line array speaker

Model:	CH208
Type:	Two divided-frequency dual 8-inch speaker
Driver:	2 x 8" low frequency driver 1x 3" high frequency driver
Nominal Impedance:	8Ω
Rated Power Handling:	500W
Frequency Range :	65 Hz-20 KHZ
Dispersion(-6 dB):	H x V90°x 10°
Sensitivity:	101dB
Maximum SPL:	128dB/ Peak:134dB
Connection:	2x Speakon NL4
Speaker size:	772474288mm

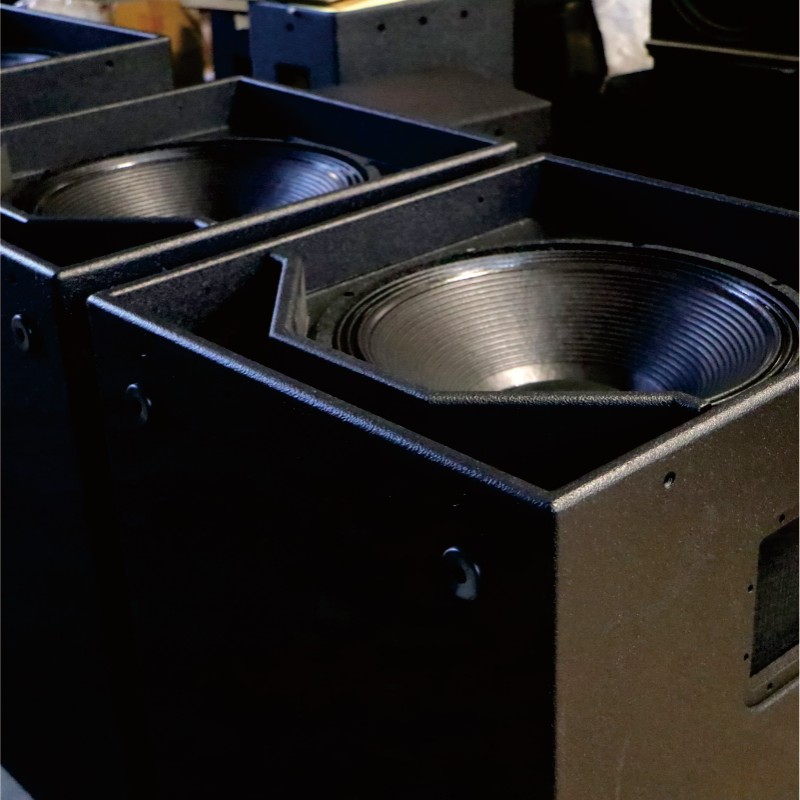

18 "subwoofer

Model:	CH218S
Type:	1×18" Subwoofer
Woofer:	1 x 18" Low-Frequency Drivers
Frequency response:	40Hz–1000Hz
Sensitivity:	118dB
Maximum SPL:	129dB
Impedance:	8Ω
Power Handling:	600W
Connection:	2x Speakon NL4
Product dimensions：	851645581mm
Net Weight:	50kg

Manufacture. Professionalism

Dual 8-inch low-frequency drivers combined with a 3-inch imported high-frequency driver create a two-way crossover system, achieving a frequency response from 65Hz to 20kHz. This configuration spans the entire vocal and instrumental frequency spectrum, delivering delicate timbre and powerful dynamics. The one-piece line array horn optimizes sound wave dispersion, with a 90° horizontal × 10° vertical coverage pattern that minimizes environmental reflection interference. Ideal for long-throw applications, it ensures uniform sound distribution in large venues such as stadiums and auditoriums.

Material introduction

The enclosure is crafted from multi-layer birch plywood, coated with a wear-resistant finish, designed to withstand impacts and heavy handling, making it ideal for high-frequency mobile use. Featuring four selectable tilt angles (0°, 2°, 4°, 6°), the cabinet allows precise sound projection tailored to venue requirements.With a lightweight design and ergonomic handles, it supports both floor-standing placement and truss truss mounting. The system can be fully set up within 10 minutes, significantly enhancing deployment efficiency for events and tours.

Reinforced metal grille

The speaker is equipped with a reinforced metal grille lined with acoustic breathable mesh, which balances dust protection and acoustic transmission efficiency. This design effectively resists external impacts and dust ingress, providing comprehensive physical protection for the drivers and extending the equipment's service life.

Ergonomic Handles

Ergonomic handles and simple yet secure hanging fixtures support quick floor placement or truss mounting. Combined with Speakon NL4 parallel interfaces, multi-speaker line array setup can be completed within 10 minutes, significantly enhancing deployment efficiency for mobile performances.

Multi-Angle Sound Field Control

This line array is equipped with a precision angle adjustment system, supporting four adjustable angles of 0°, 2°, 4°, and 6°. It allows flexible adjustment of the vertical coverage angle according to venue layout and acoustic requirements.

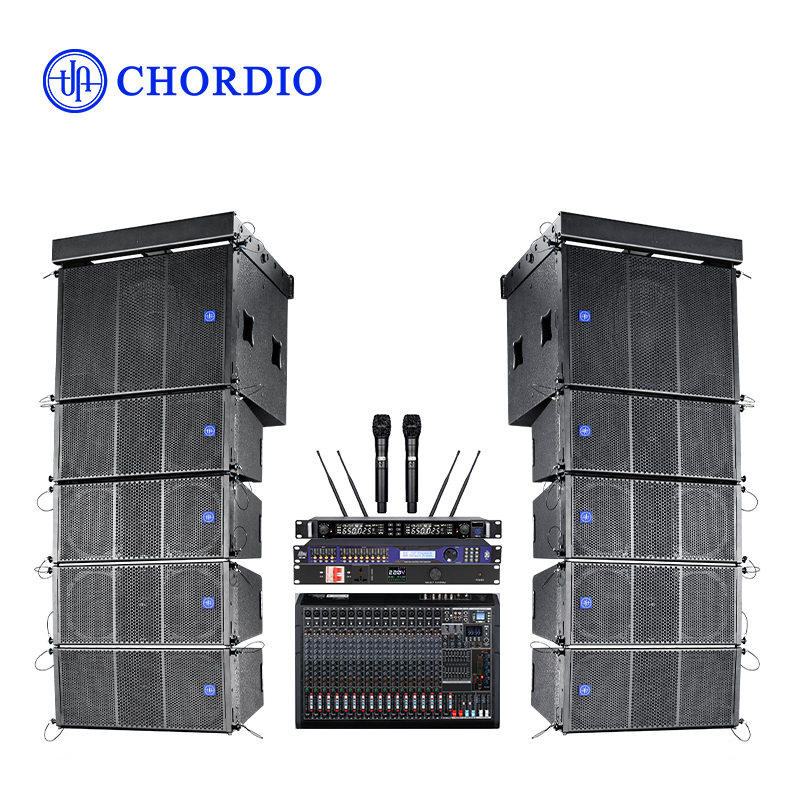

Application scenarios

CHORDIO products are sold in more than 100 countries around the world and have gained a good reputation among numerous customers. Our company provides a full set of professional audio systems, which are suitable for various events. These include product launches, weddings, hotels, churches, stadiums, stage performances, DJ shows, party concerts, and more. Our top engineers and sales team are ready to offer all the services and products you need.
