TD Series - Professional Power Amplifier

TD Series - Professional Power Amplifier

The TD series is a high-quality power amplifier created by our company. It features superior power performance and ultra-low distortion; equipped with a complete electronic protection device, it greatly enhances the sound quality; it belongs to domestic high-end products.

Widely used in occasions such as bar DJ performances, conference displays, wedding venues, stage performances, etc.

Product Parameters

Model number:	TD-1300	TD-1500	TD-1800	TD-2000	TD-2500
8Ω Stereo power:	1300W*2	1500W*2	1800W*2	2000W*2	2500W*2
4Ω Stereo power:	1950W*2	2400W*2	2700W*2	3000W*2	3750W*2
8Ω Bridge power:	2600W	3200W	3600W	5000W	6250W
Frequency response:	20~20kHz(-0.5dB)	20~20kHz(-0.5dB)	20~20kHz(-0.5dB)	20~20kHz(-0.5dB)	20~20kHz(-0.5dB)
THD:	<0.1%20Hz-20KHz	<0.1%20Hz-20KHz	<0.05%20Hz-20KHz	<0.1%20Hz-20KHz	<0.1%20Hz-20KHz
SNR:	103dB	103dB	104dB	103dB	103dB
Damping coefficient:	400	400	600	400	400
Separation degree:	60dB	60dB	60dB	60dB	60dB
Conversion rate:	13v/μs	13v/μs	13v/μs	13v/μs	13v/μs
Input sensitivity:	32dB/1v/1.4v	32dB/1v/1.4v	32dB/1v/1.4v	32dB/1v/1.4v	32dB/1v/1.4v
Input impedance:	10K unbalanced, 20K balanced	10K unbalanced, 20K balanced	10K unbalanced, 20K balanced	10K unbalanced, 20K balanced	10K unbalanced, 20K balanced
Size:	483x440x133mm	483x440x133mm	483x430x133mm	483x440x133mm	483x440x133mm
Packaging Size:	630x590x240mm	630x590x240mm	630x590x240mm	630x590x240mm	630x590x240mm

Manufacturing. Professionalism. High Quality
A source factory with over 20 years of experience, a globally leading one-stop professional power amplifier and audio equipment manufacturer.

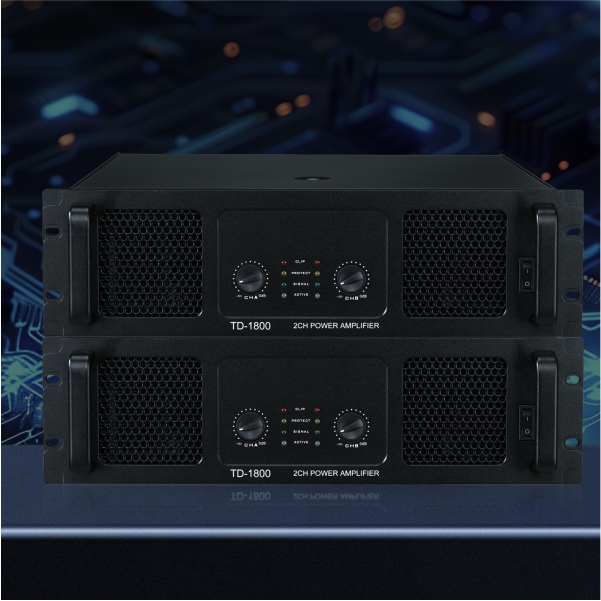

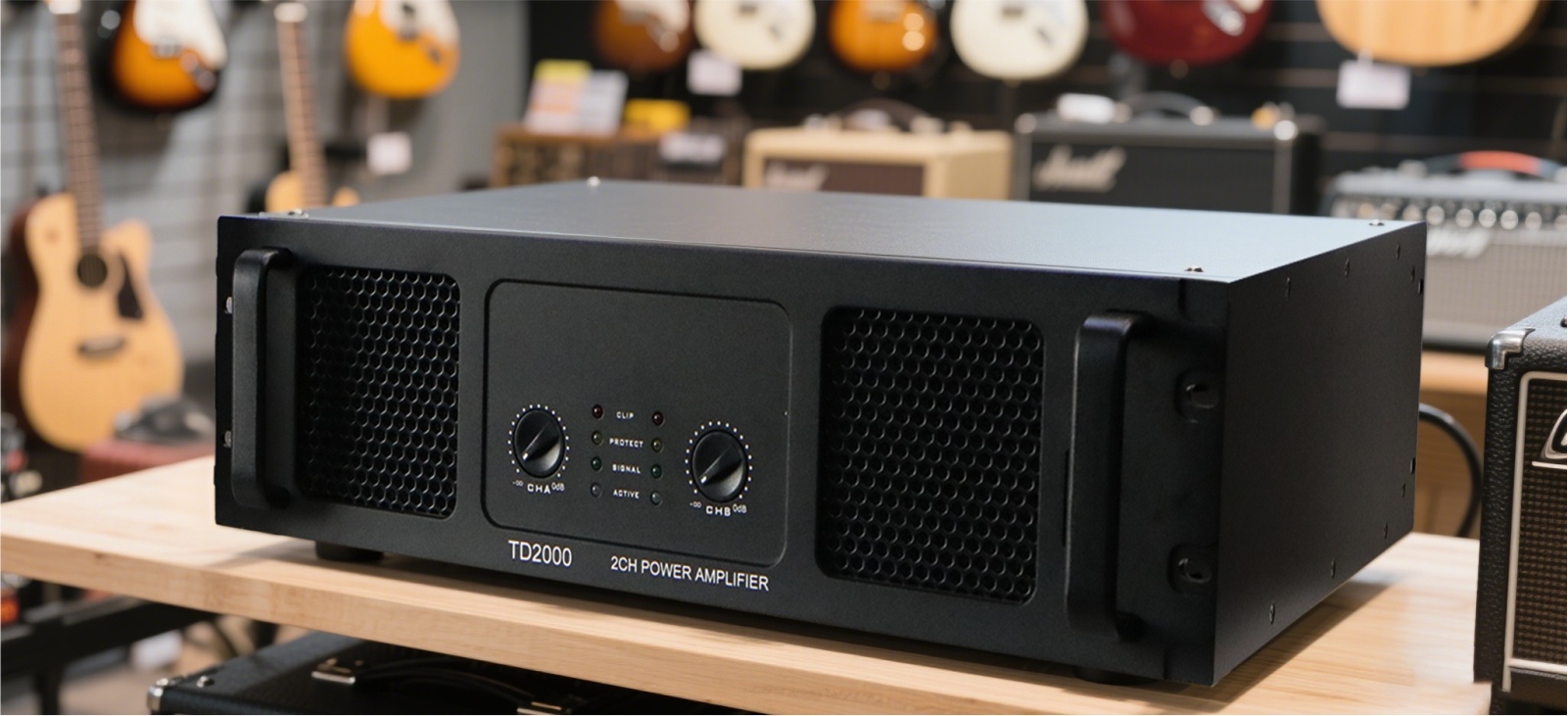

▼ The 3U body is more compact, occupying less space, but still able to accommodate high-power components.

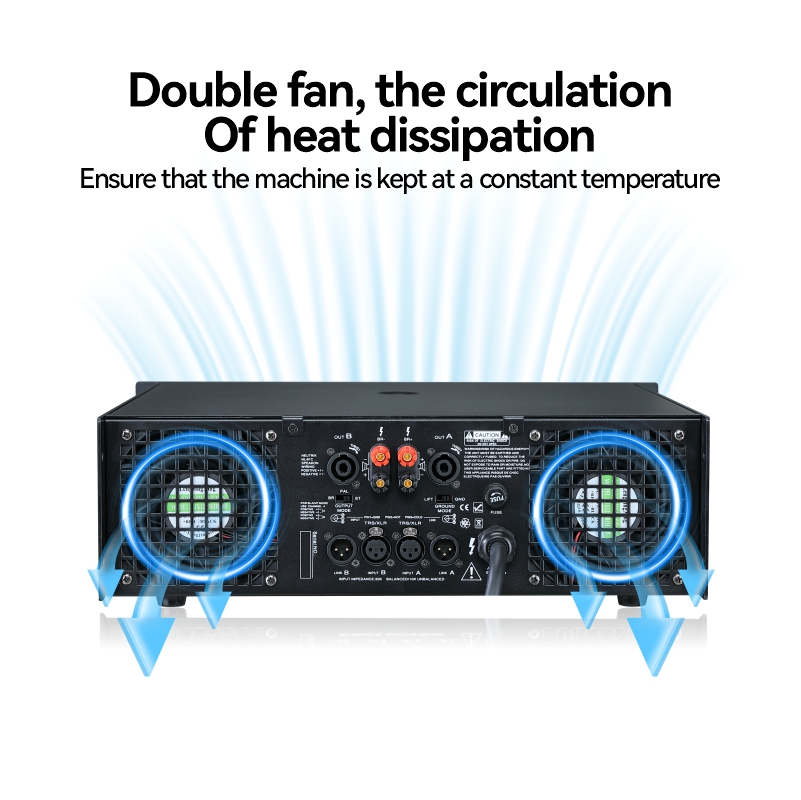

▼ With powerful dual-fan cooling and front-to-rear airflow design, it efficiently ensures stable operation.

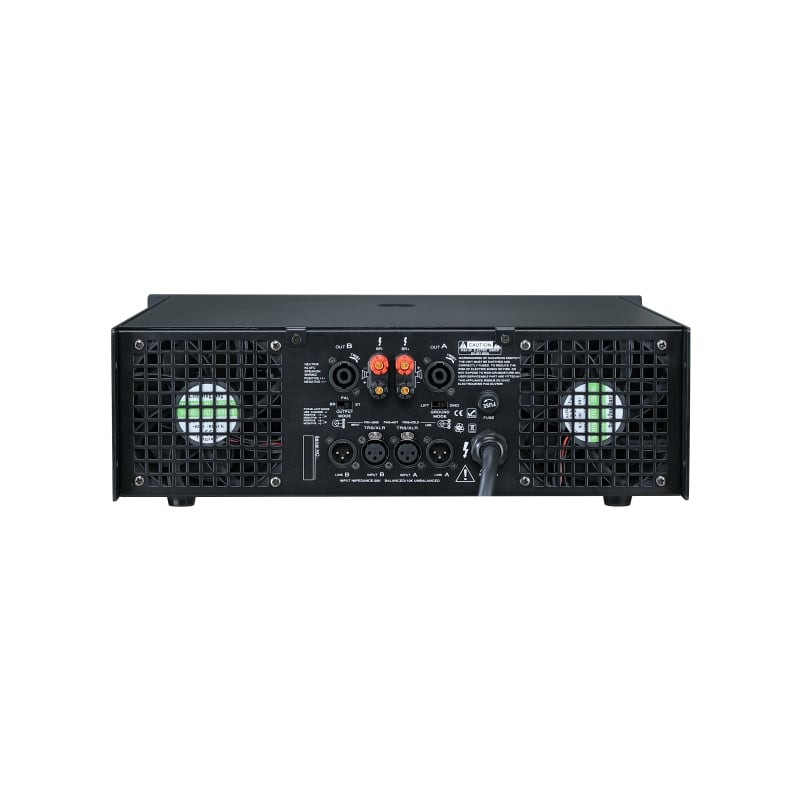

▼ Supports multi-device input, with widely compatible XLR interfaces to meet diverse connection needs.
▼ Strong power output: 1300W*2 in 8Ω stereo, meeting the sound reinforcement requirements of large-scale scenarios.
▼ Excellent sound quality with a frequency response of 20~20kHz (-0.5dB), providing precise and delicate sound reproduction.
▼ Standard specifications are compatible with 220V/50Hz voltage, facilitating installation and use.
▼ Adopts a pure analog amplifier circuit design, delivering soft, clear, and pleasant sound.

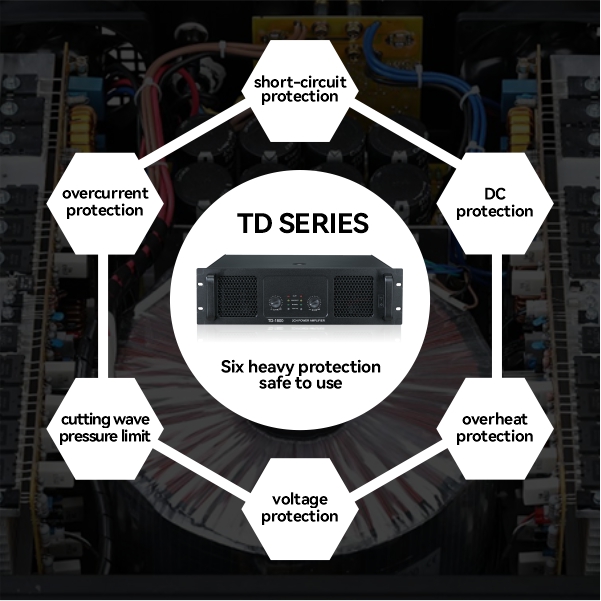

Equipped with multiple protection functions for all-round protection, ensuring safe and reliable use of the device

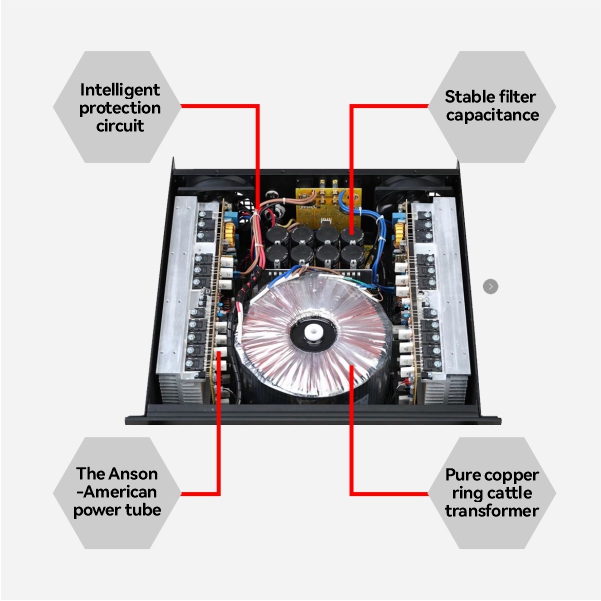

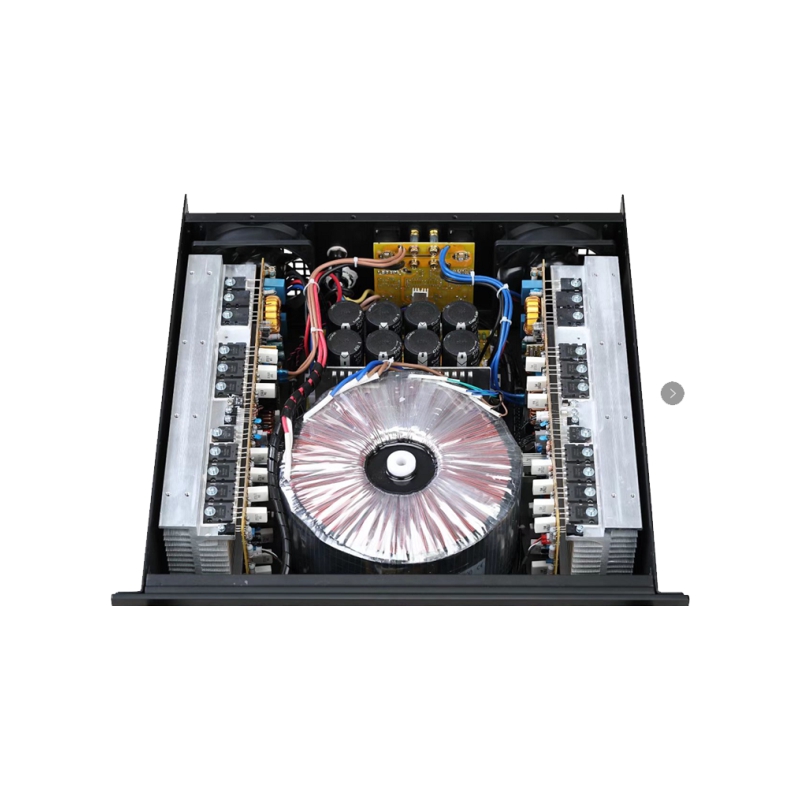

Built-in pure copper toroidal transformer provides stable power support for strong power output

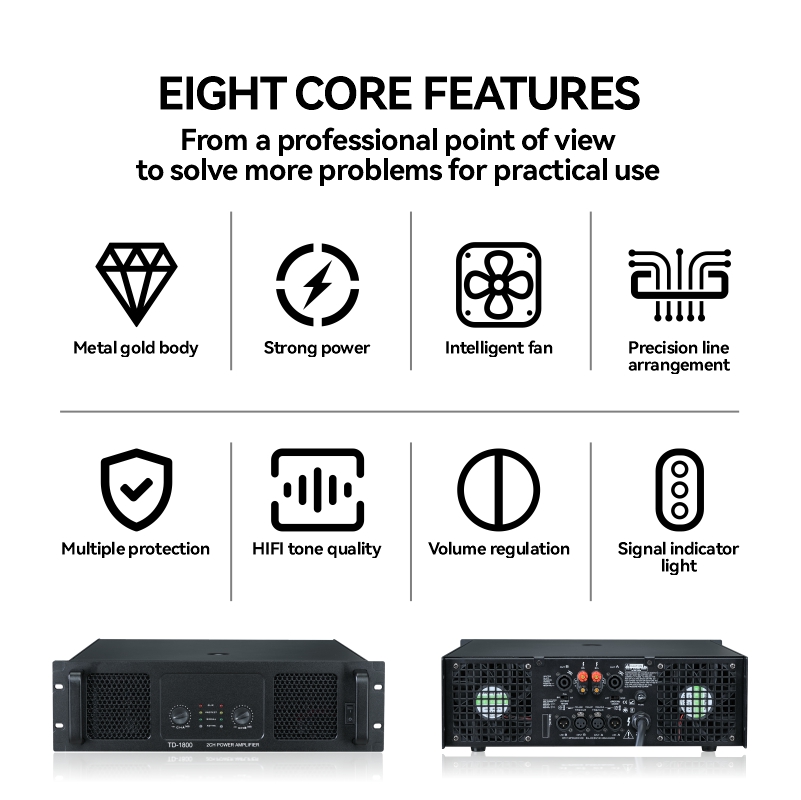

Multi-functional panel design offers convenient operation, with clear parameter adjustment and status display

Application scenarios

CHORDIO products are sold in more than 100 countries around the world and have gained a good reputation among numerous customers. Our company provides a full set of professional audio systems, which are suitable for various events. These include product launches, weddings, hotels, churches, stadiums, stage performances, DJ shows, party concerts, and more. Our top engineers and sales team are ready to offer all the services and products you need.
