MC Series - Professional Power Amplifier

MC Series - Professional Power Amplifier

The MC series is a high-quality power amplifier created by our company. It has super-power performance and ultra-low distortion; it is equipped with five protection functions, including over-current protection, DC protection, short-circuit protection, and amplitude limiting protection. The temperature-controlled fan can achieve stepless speed regulation.

Widely used in occasions such as bar DJ performances, conference displays, wedding venues, stage performances, etc.

Product Parameters

Model number：	MC5.2	MC6.2	MC8.2	MC10.2
8Ω Average power：	400Wx2	600Wx2	800Wx2	1000Wx2
4Ω Average power：	700Wx2	1050Wx2	1150Wx2	1600Wx2
8Ω Bridge power：	1050W	2000W	2100W	2400W
Transient response：	40V/μS	40V/μS	40V/μS	40V/μS
Damping coefficient：	＞200dB	＞200dB	＞200dB	＞200dB
SNR：	＞95dB	＞95dB	＞95dB	＞102dB
THD：	<0.15%	<0.15%	<0.15%	<0.15%
Input sensitivity：	0.775V/1.4V/3.46V	0.775V/1.4V/3.46V	0.775V/1.4V/3.46V	0.775V/1.4V/3.46V
Input impedance：	10K ohms(unbalanced) -20K ohms(balanced)	10K ohms(unbalanced) -20K ohms(balanced)	10K ohms(unbalanced) -20K ohms(balanced)	10K ohms(unbalanced) -20K ohms(balanced)
Net weight：	12kg	16kg	18kg	20kg

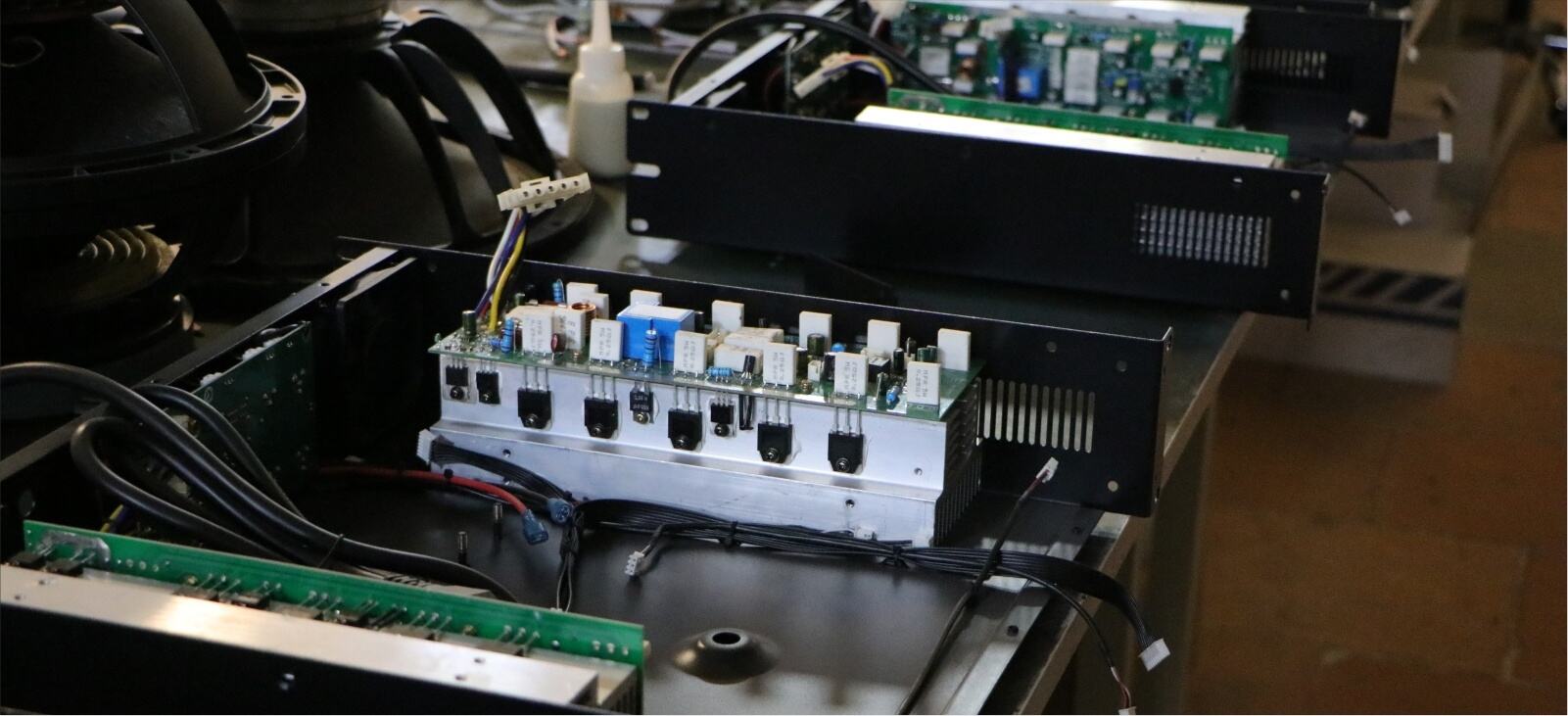

Manufacturing. Professionalism. High Quality
A source factory with over 20 years of experience, a globally leading one-stop professional power amplifier and audio equipment manufacturer.

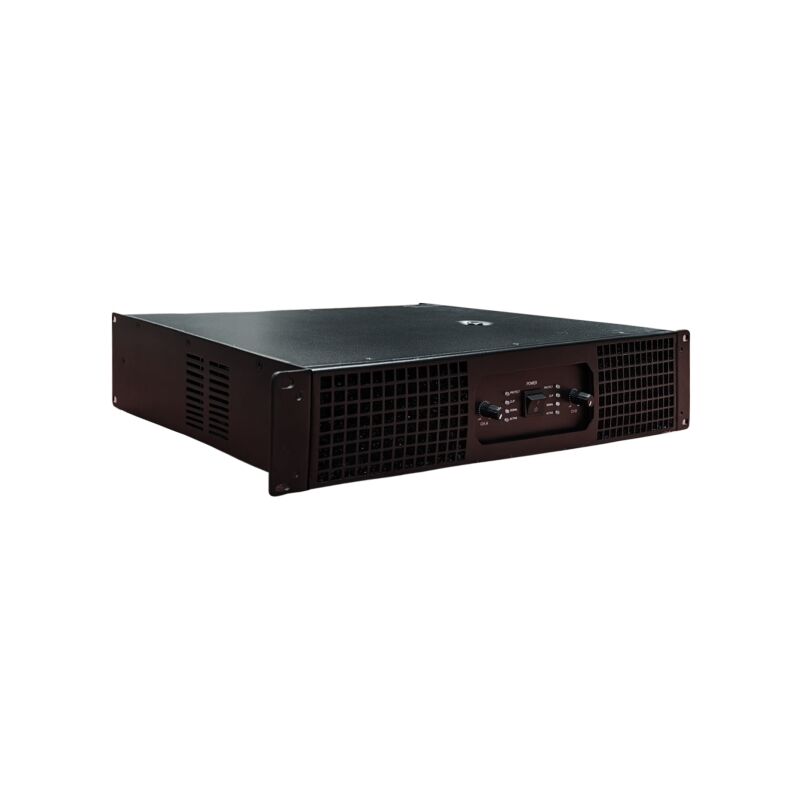

▼ 2U chassis design, suitable for cabinet installation on different occasions;
▼ New circuit and minimalist installation design, products with high cost performance;

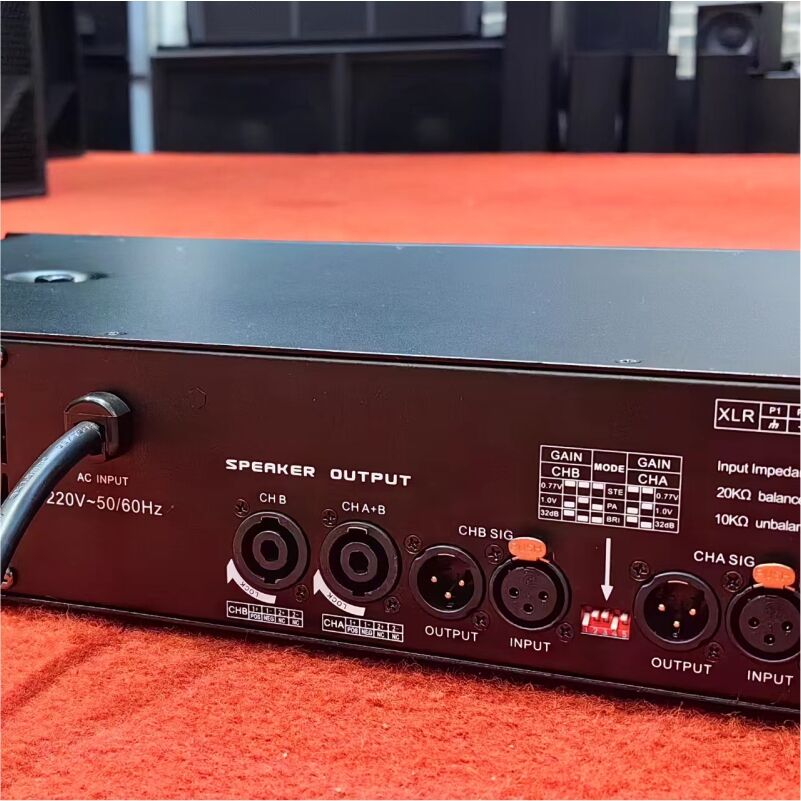

▼ Three working modes: mono, stereo and bridge;
▼ With hardware pressure limit function, increase the input dynamic range;
▼ Use ON power tube as current drive, driving force is stronger, sound performance is more transparent and powerful;
▼ Pure analog amplifier circuit design, soft tone, clear, listening;
▼ Perfect output protection circuit, with overcurrent, midpoint drift, overheat, undervoltage, soft start protection functions.

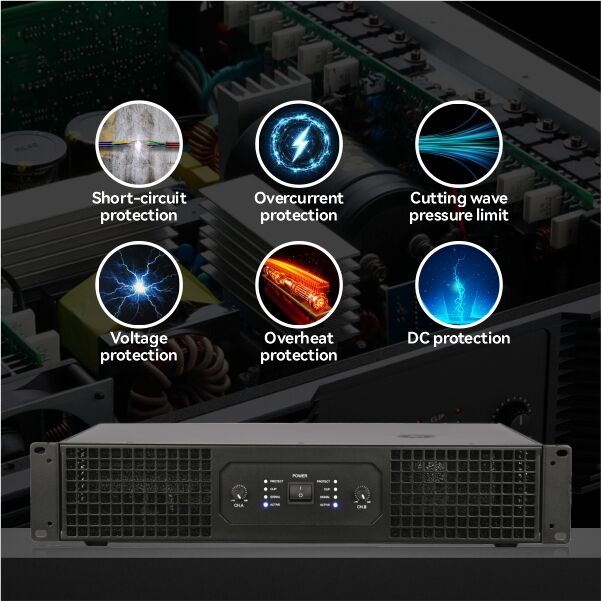

It has a complete protection circuit, using technology to care for your equipment and let you have no worries

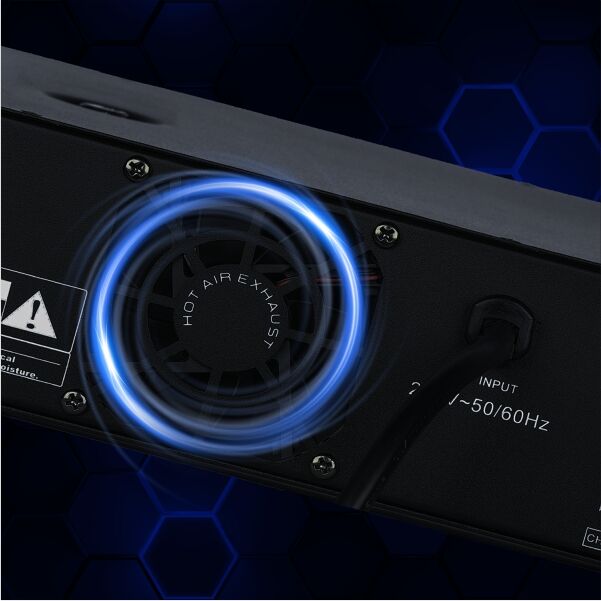

The intelligent and powerful heat dissipation system unleashes the potential of the chip for longer-lasting operation

With a powerful output of 1000W×2 at 8Ω, it can easily handle high-power audio systems

Application scenarios

CHORDIO products are sold in more than 100 countries around the world and have gained a good reputation among numerous customers. Our company provides a full set of professional audio systems, which are suitable for various events. These include product launches, weddings, hotels, churches, stadiums, stage performances, DJ shows, party concerts, and more. Our top engineers and sales team are ready to offer all the services and products you need.
