LA210
Home> Products /  Line Array System /  LA210

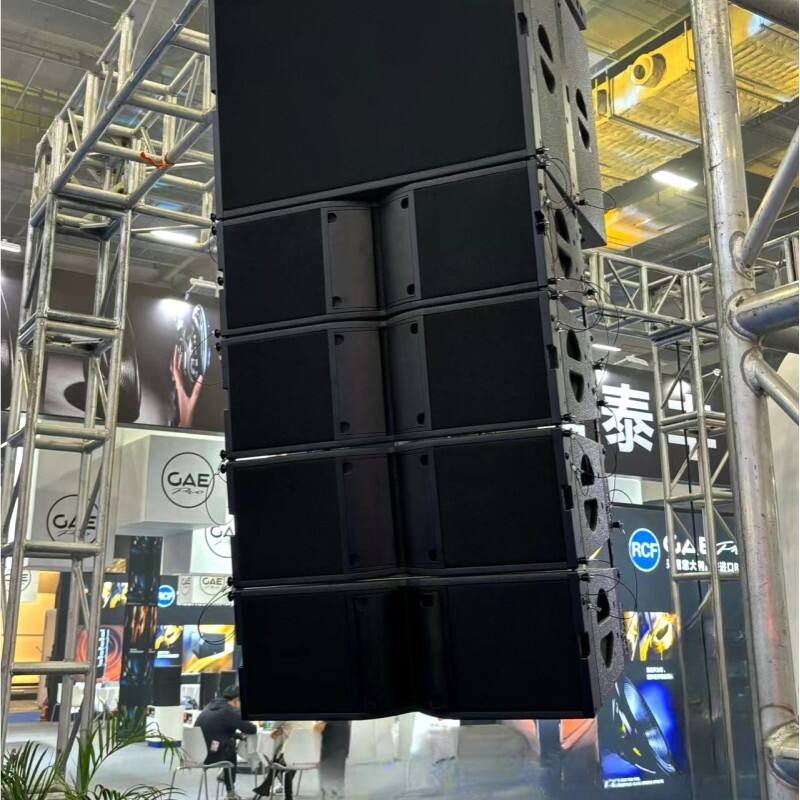

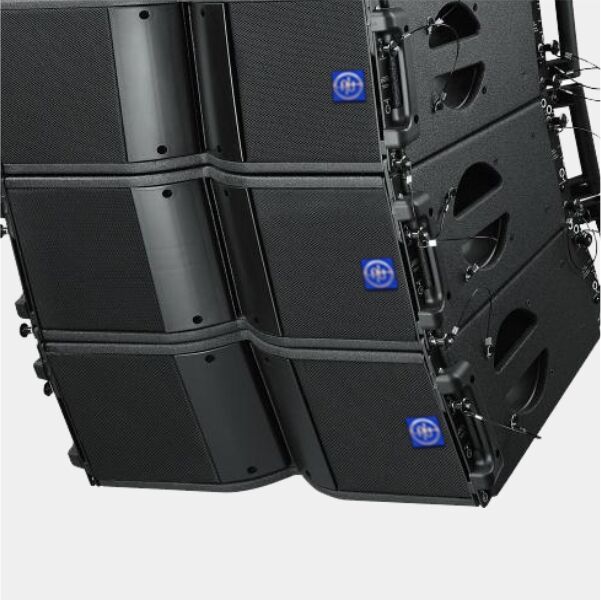

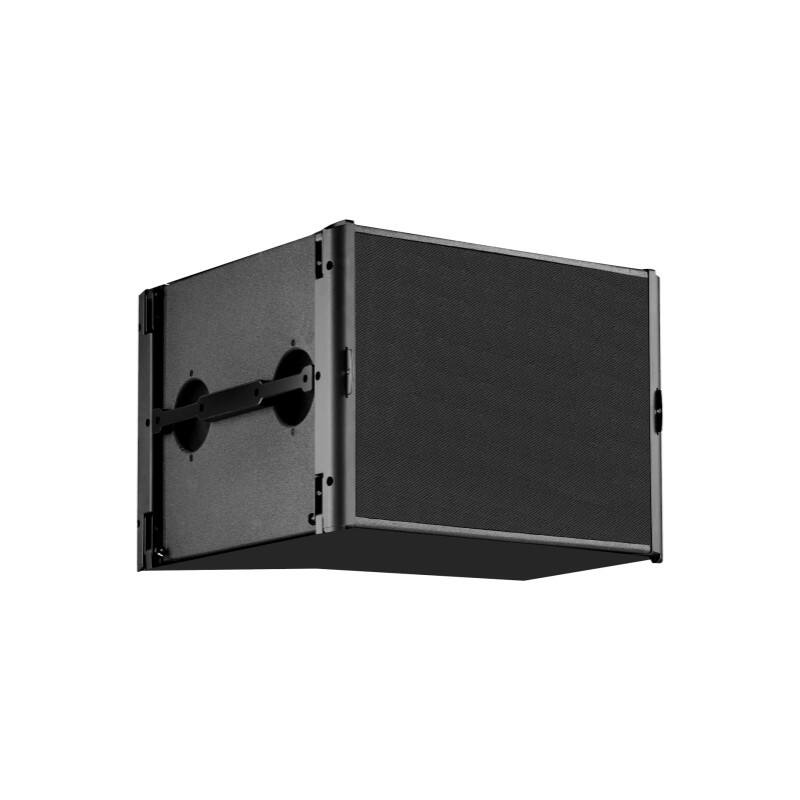

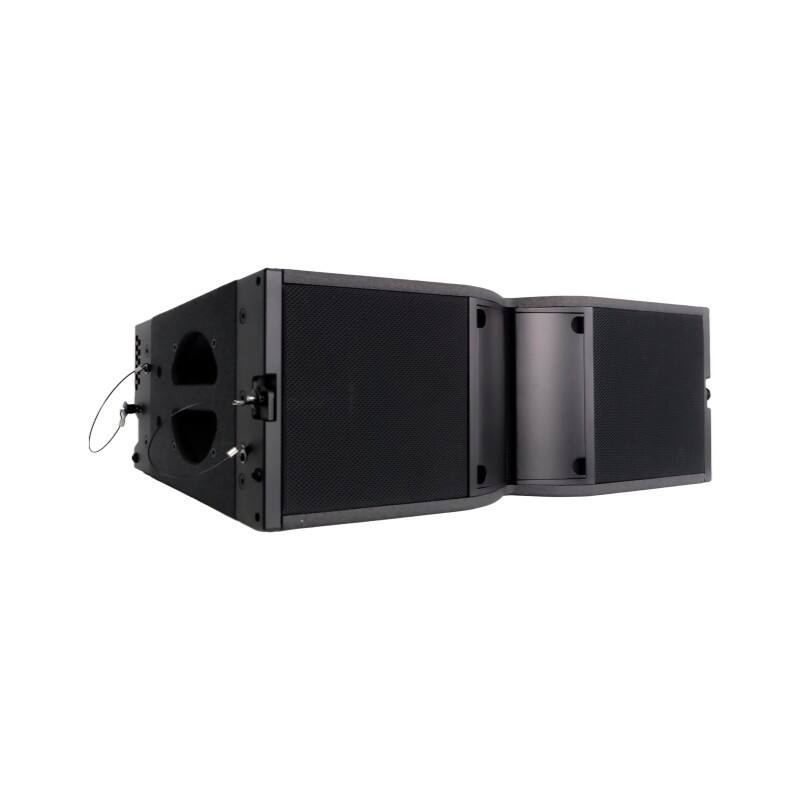

LA210 - Dual 10-inch Line Array

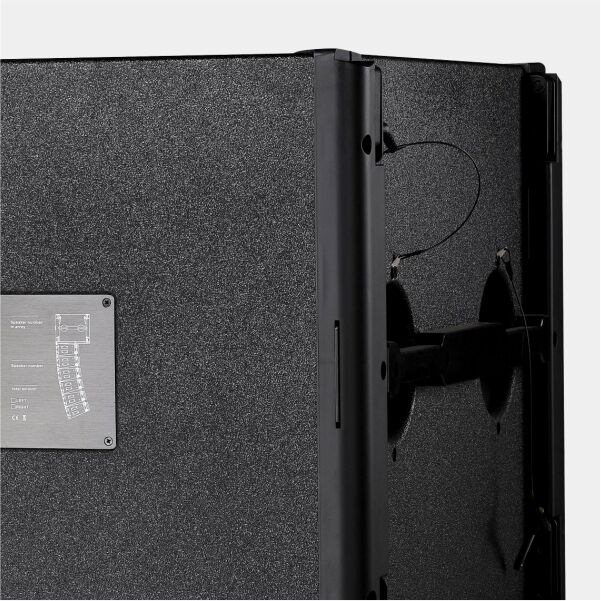

It features a compact cabinet design and a two-way frequency division design. The tweeter horn with a precise angle and the diffuser plate minimize high-frequency distortion. It also has the following characteristics: small in size, light in weight, high in sensitivity, strong in penetration, clear in speech. With a trapezoidal body structure, the gap between the bodies is minimized. The phase-compensated internal crossover network means that the system does not require delay compensation. The co-planar symmetrical cabinet structure makes the near-field sound image positioning more accurate.

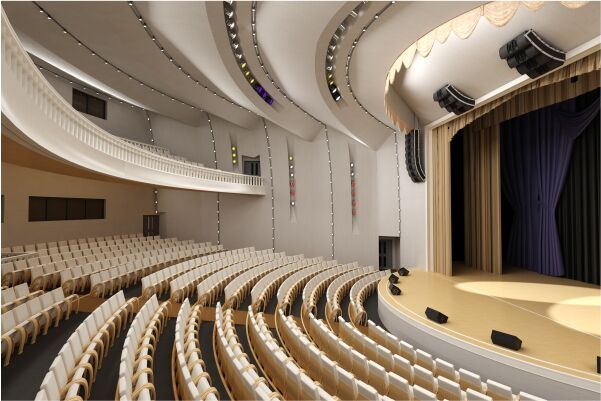

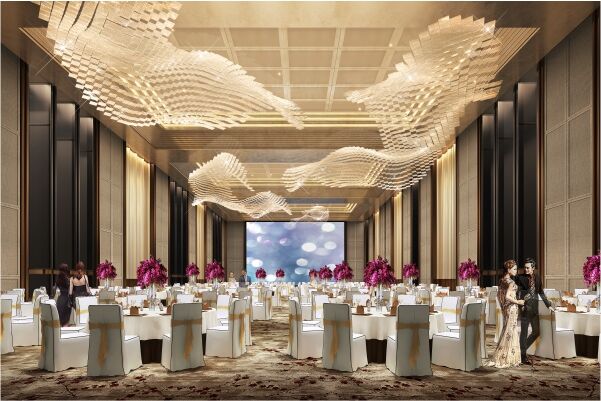

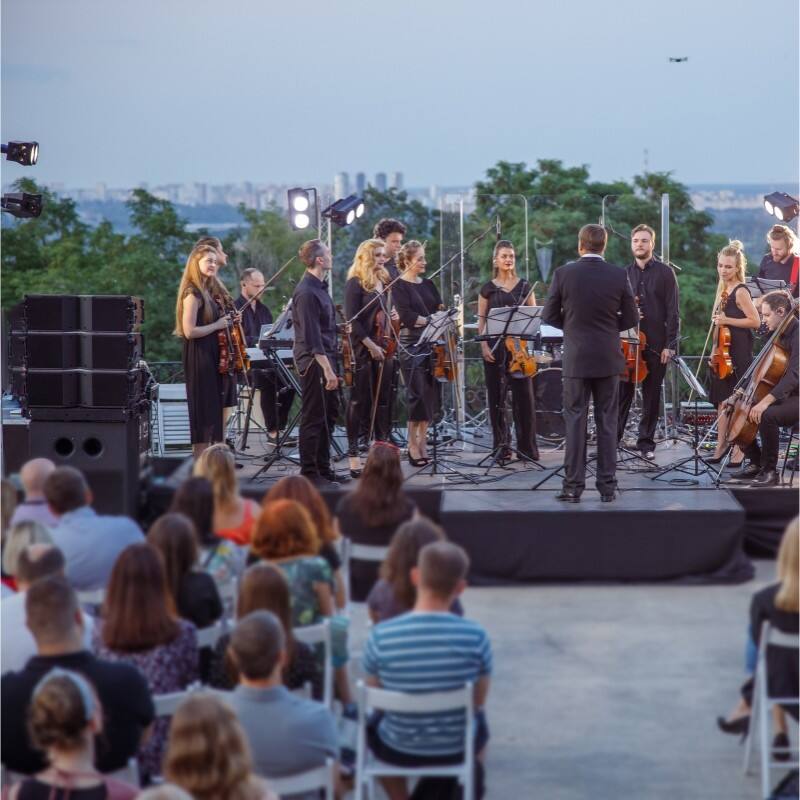

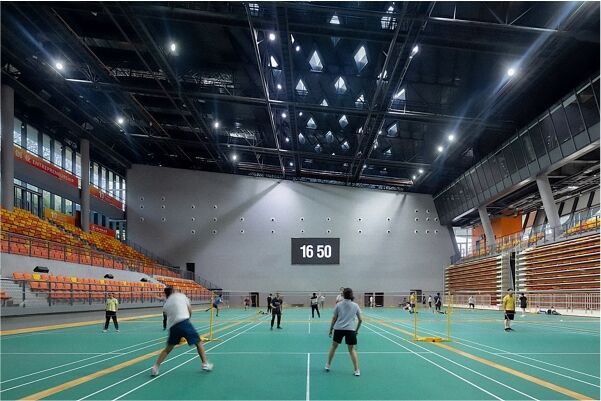

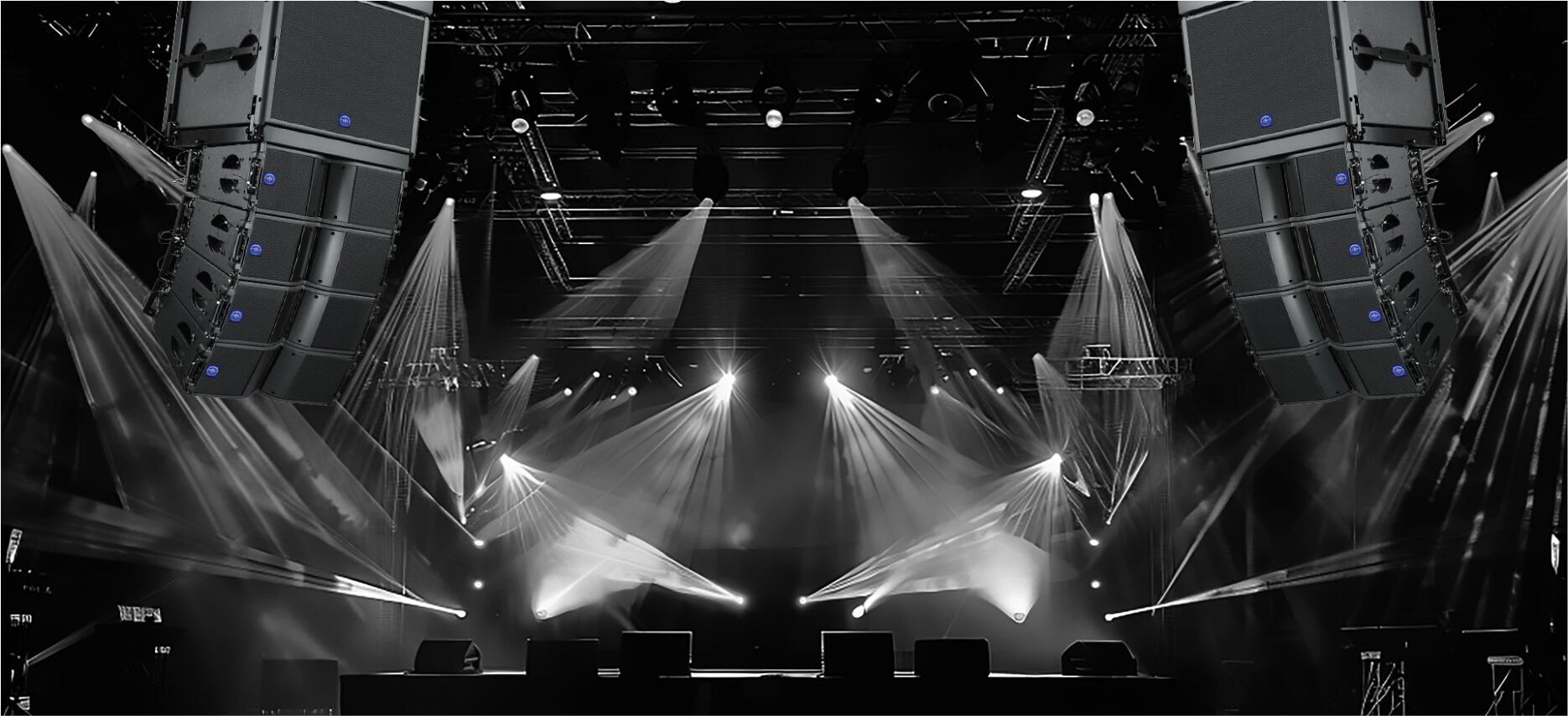

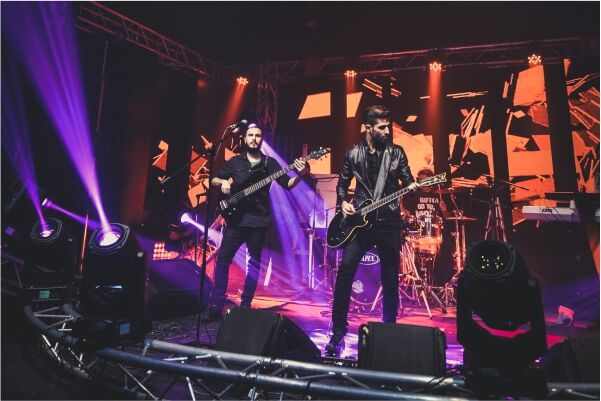

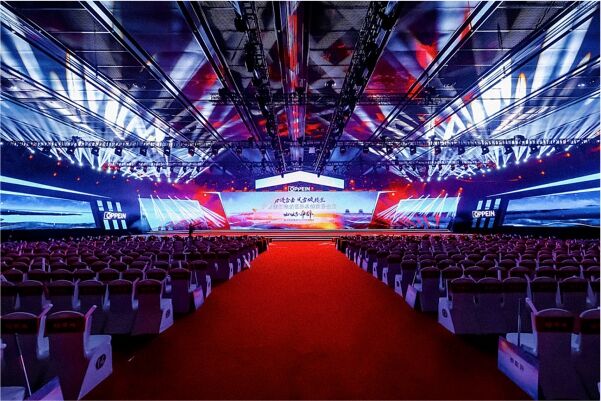

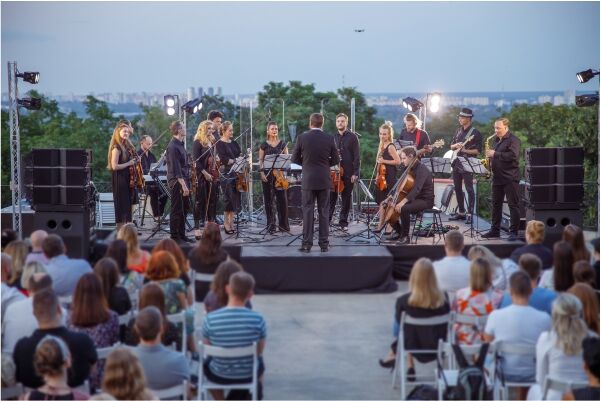

It is mainly applied to large-scale sound reinforcement venues such as large-scale performances, music festival performances, outdoor squares, school auditoriums, stadium theaters, lecture halls, and hotel banquet halls.

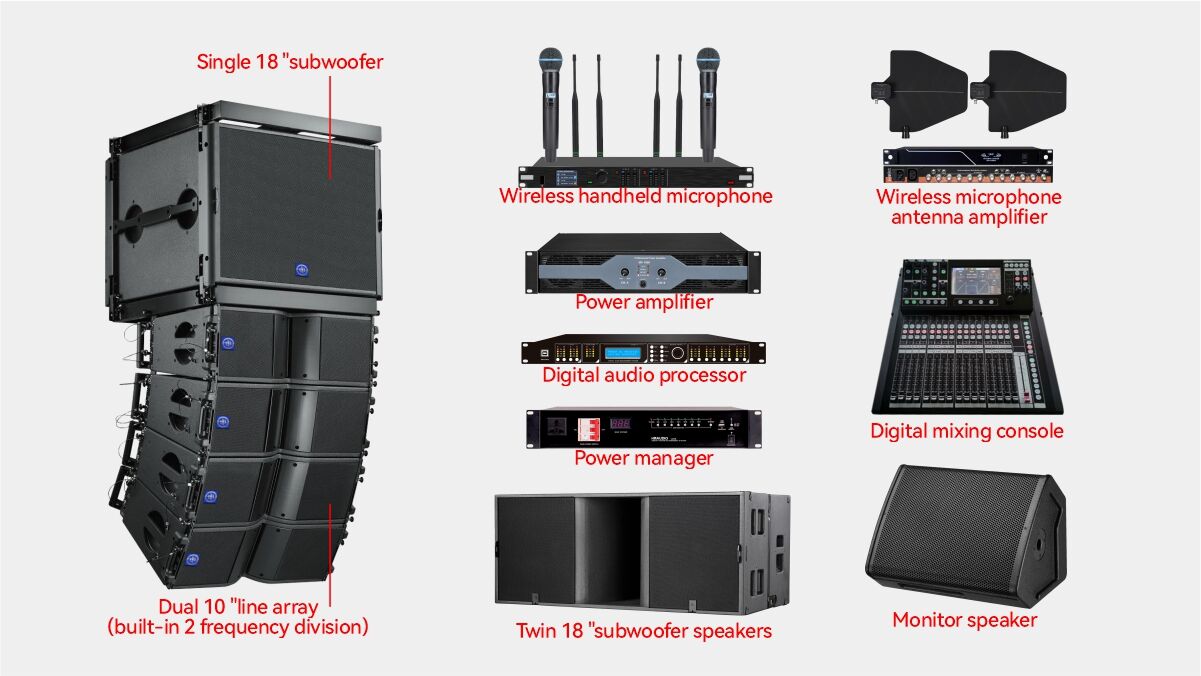

Dual 10-inch Built-in Two-way Frequency Division Line Array Speaker

Product Model: LA210
Product Type: Dual 10-inch Line Array (Built-in Two-way Frequency Division)
Frequency Response: 60Hz - 18kHz (±3dB)
Frequency range: 50Hz - 20kHz
Input impedance:
Sensitivity: 106dB SPL 1w/1m
Tweeter: 75mm Voice Coil / 170mm Magnet Steel
Rated Power: 700W
Woofer: 2 x 170mm Magnet Steel / 75mm Voice Coil
Maximum SPL: 138dB SPL
Sound field radiation range: Horizontal 110°, Vertical:15°
Input interface: 2xNeutrik® NL4MP
Cabinet Dimensions: 300mm * 780mm * 439mm
Net weight: 37kg

Single 18 -inch Subwoofer

Unit Composition: 1x 12" Low-frequency Driver, 1x 3" High-frequency Driver
Impedance:
Rated Power: 500W
Frequency Response (+/-3 dB): 60 Hz - 20kHz
Radiation Angle (-6 dB): H x V 90° x 10°
Sensitivity: 106dB
Maximum SPL: 133dB
Connection Socket: 2x Speakon NL4
Speaker Dimensions: 637*495*387mm
Net Weight: 75kg

Dual 18-inch Subwoofer

Product Model: KS28H
Product Type: Dual 18-inch Subwoofer
Frequency Range: 30Hz - 500Hz
Frequency response: 35Hz - 450Hz (±3dB)
Sensitivity: 105dB
Input Impedance:
Rated Power: 2400W
Configuration: 280mm Magnet Steel / 125mm Voice Coil
Maximum SPL: 145dB SPL
Input Interface: 2xNeutrik® NL4MP
Cabinet Dimensions: 565mm * 1351mm * 702mm
Net Weight: 83kg

未标题-1_01.jpg未标题-1_02.jpg未标题-1_03.jpg未标题-1_04.jpg未标题-1_05.jpg未标题-1_06.jpg未标题-1_07.jpg未标题-1_08.jpg未标题-1_09.jpg
