KD12S
Home> Products /  Bar Club KTV System /  KD12S

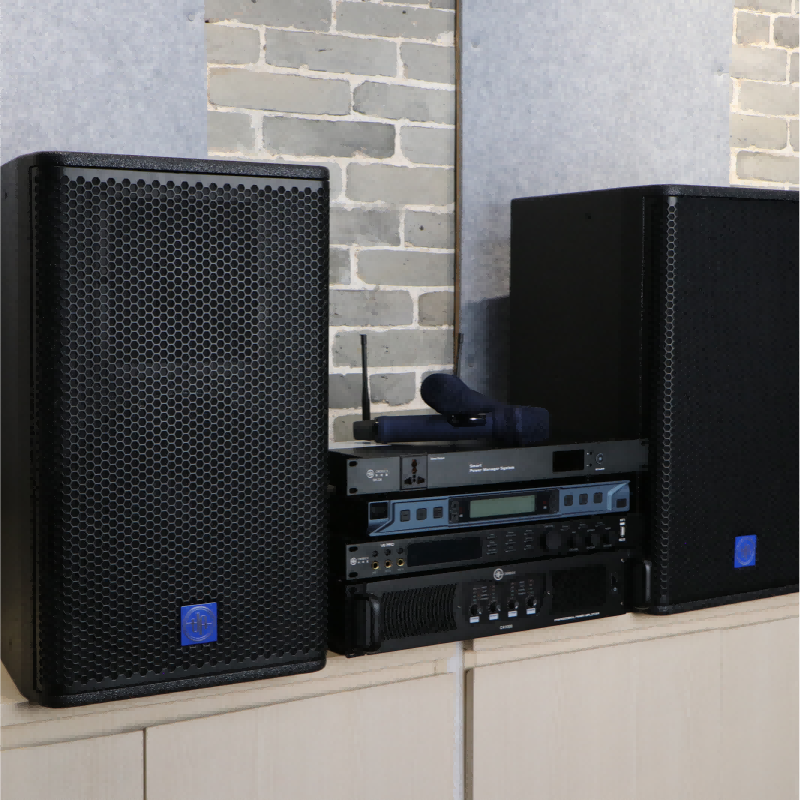

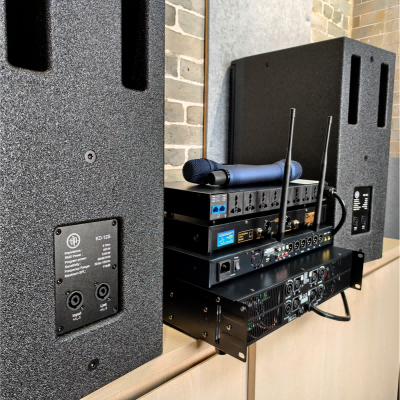

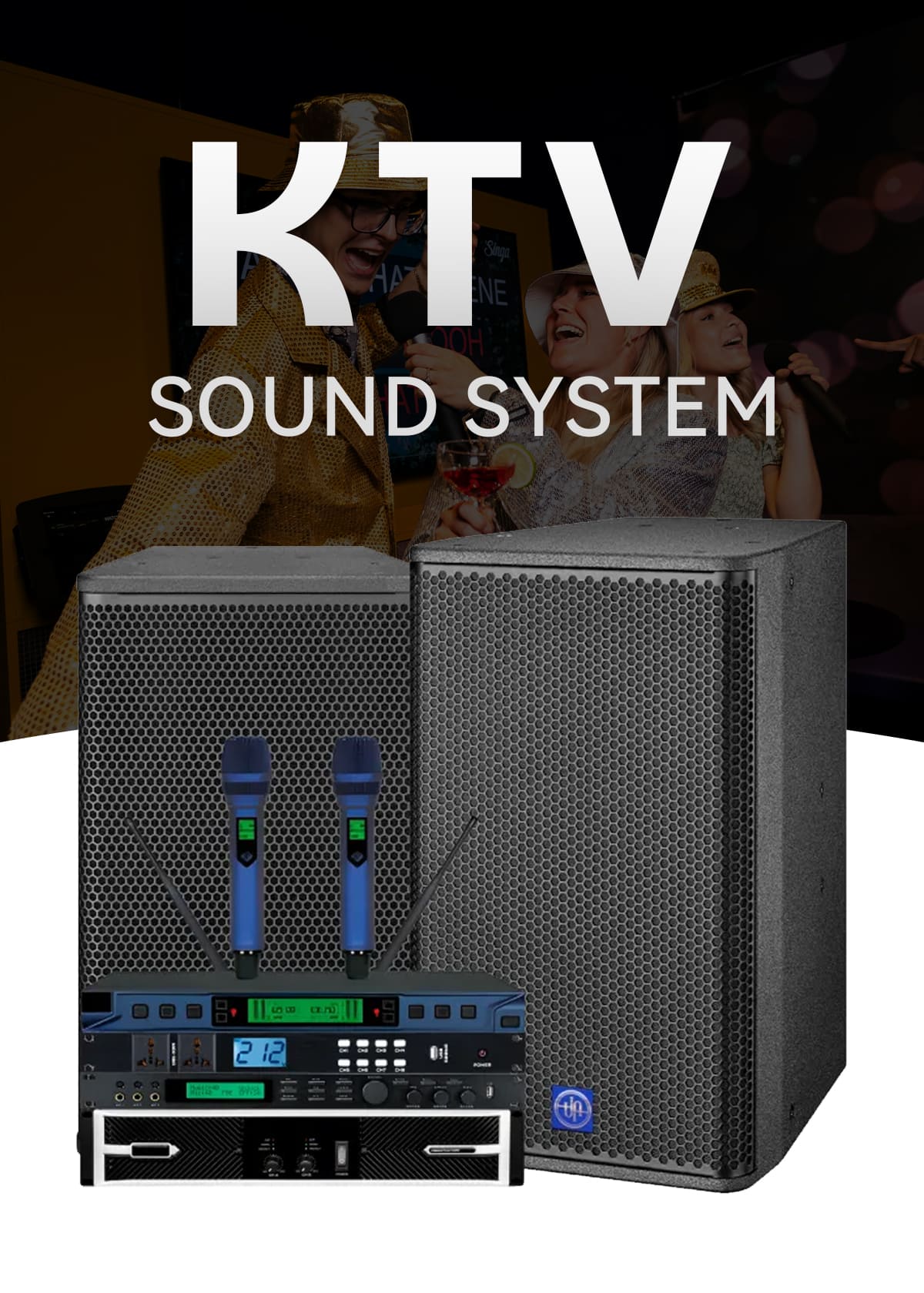

KTV Sound System

This audio system is a model specially developed by our company for KTV venues. Equipped with an aerospace magnet bass unit and imported Celestion treble unit, it balances low-frequency power and high-frequency clarity, with a wide frequency response (50Hz–18kHz), making it suitable for various musical scenarios.

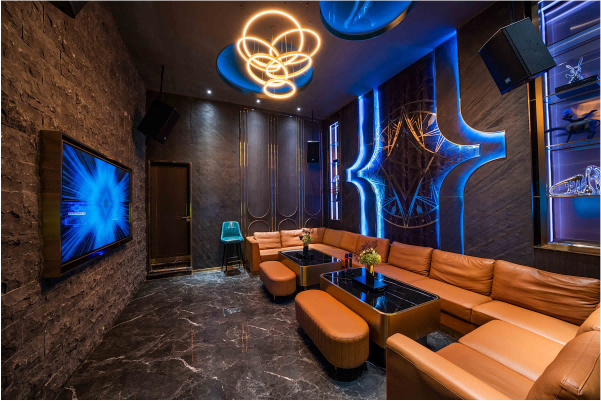

The high-frequency sound spreads evenly without howling, reducing interference with human voices and ensuring high clarity. The low-frequency sound is flexible, soft yet powerful, while the high-frequency sound is delicate and clear, with ample dynamics and a refined timbre that reveals musical details, offers precise control, and creates a unique dynamic vibe. One set is suitable for spaces of approximately 30 square meters.

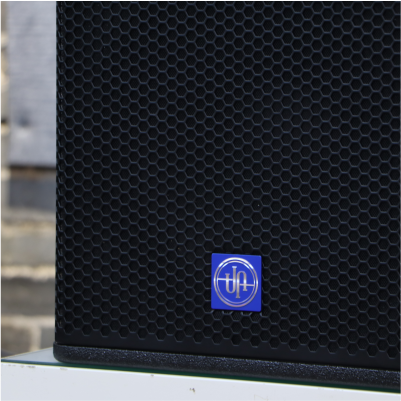

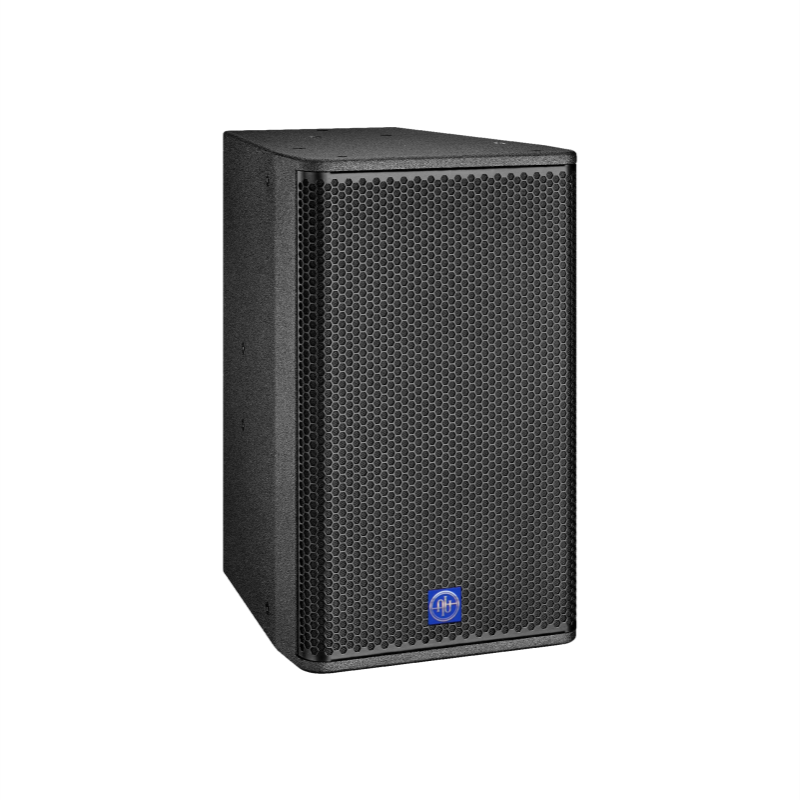

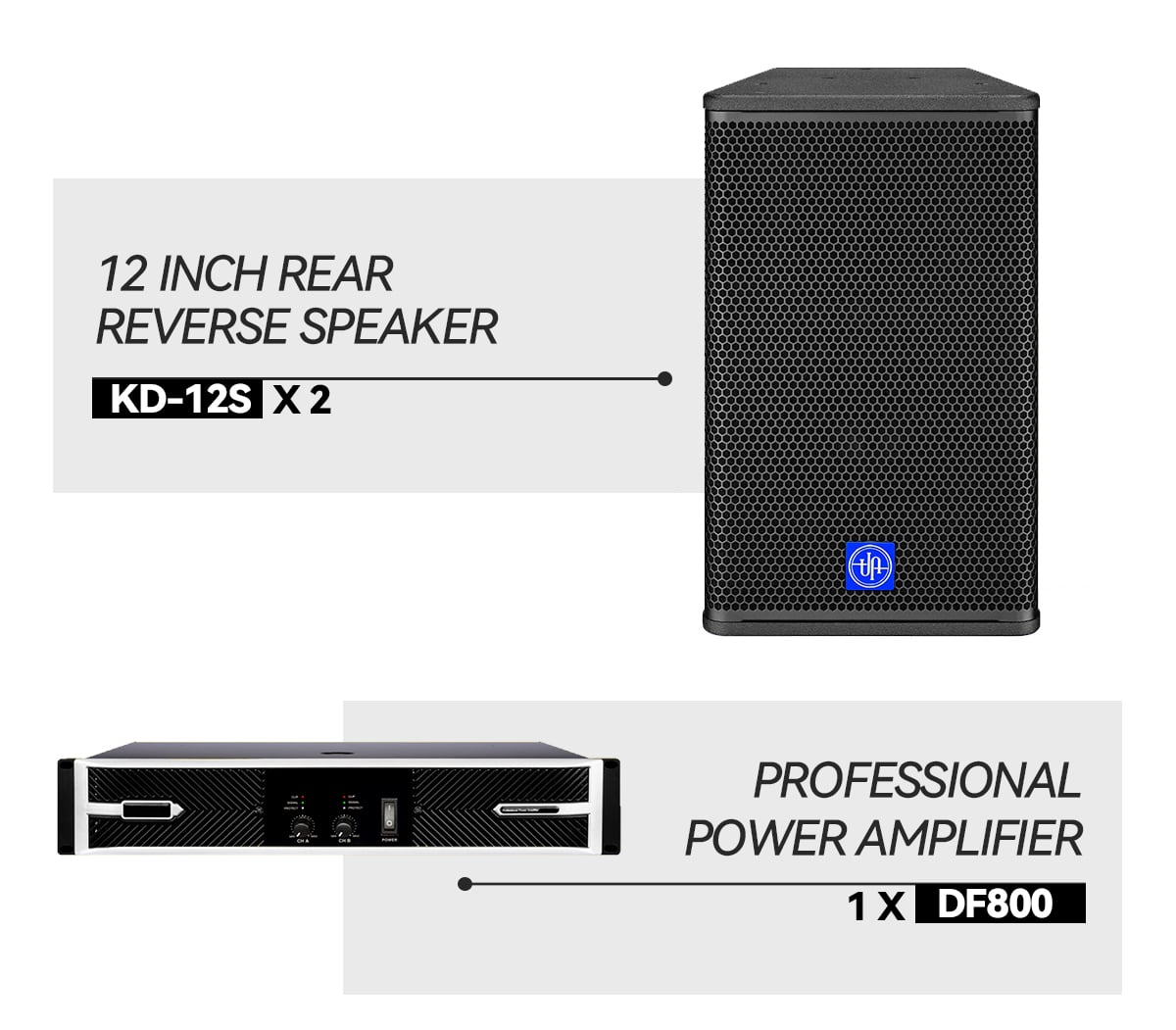

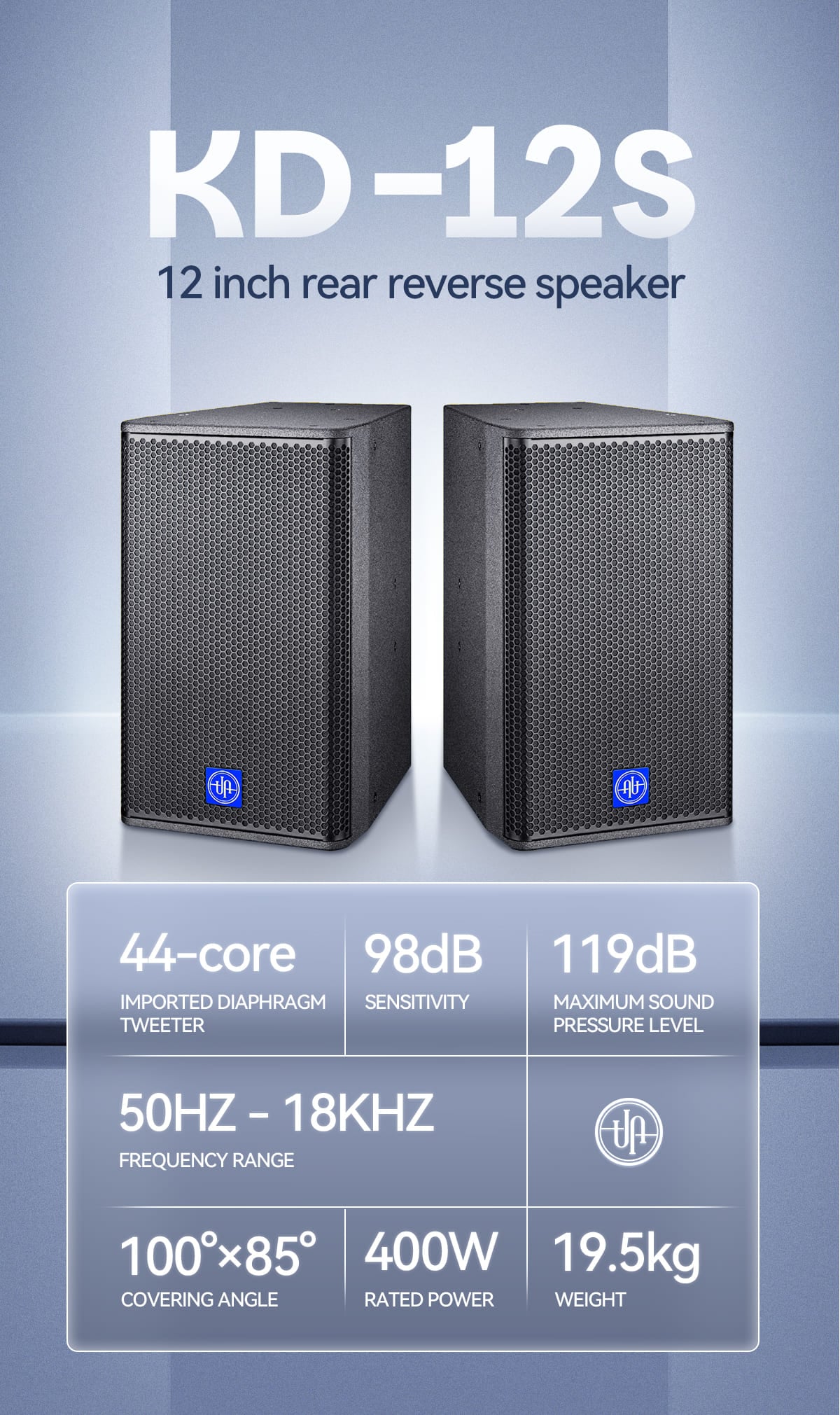

12-inch Rear-Ported Speaker Cabinet

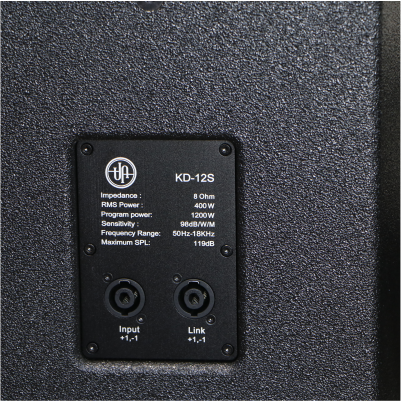

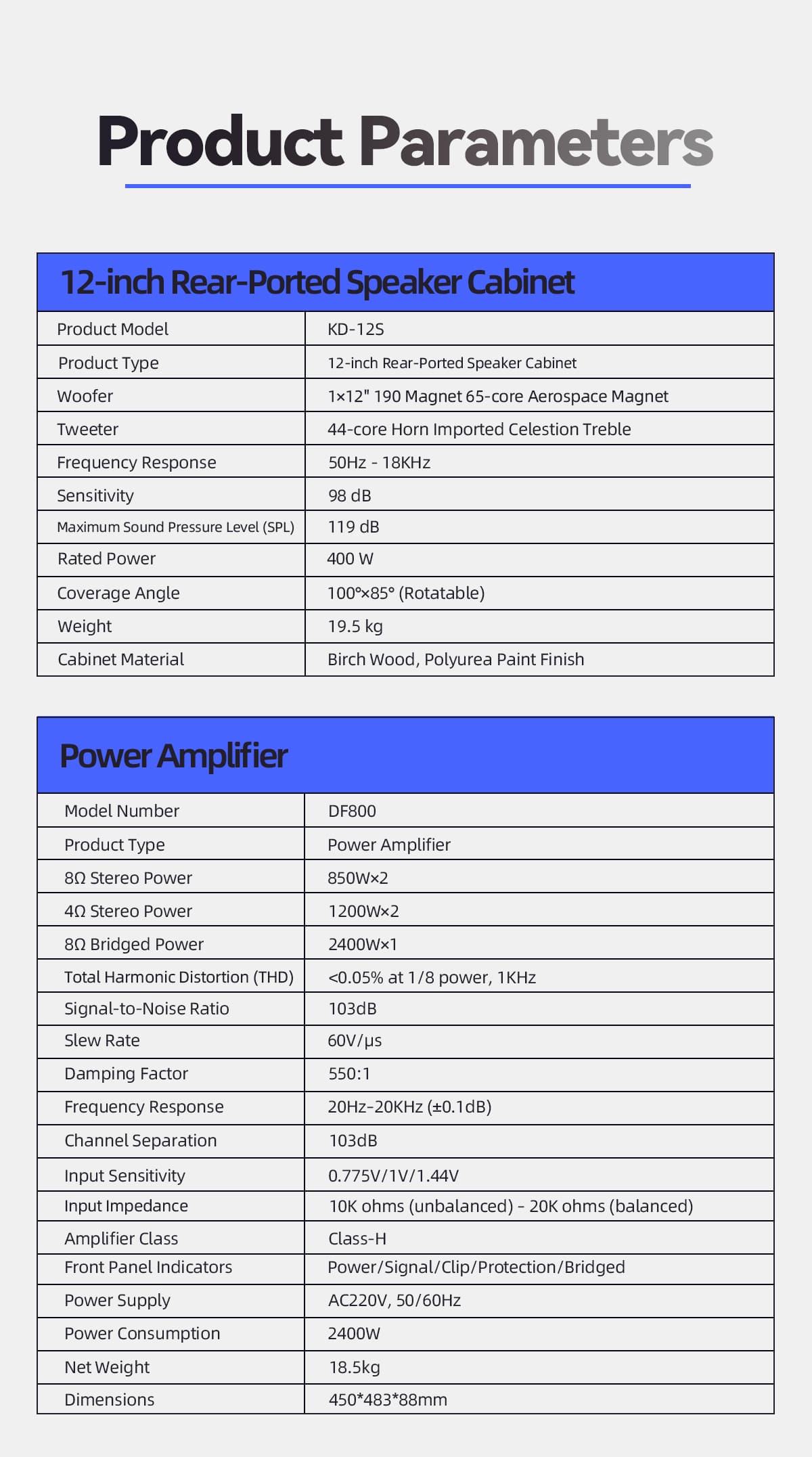

Product Model: KD-12S
Product Type: 12-inch Rear-Ported Speaker Cabinet

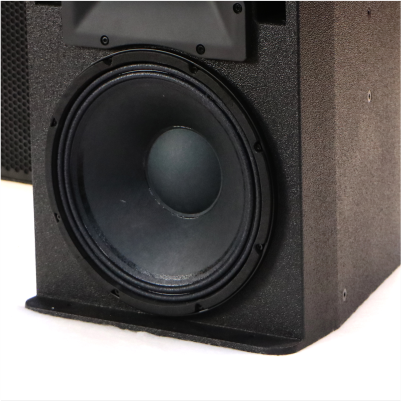

Woofer: 1×12" 190 Magnet 65-core Aerospace Magnet
Tweeter: 44-core Horn Imported Celestion Treble
Frequency Response: 50Hz - 18KHz
Sensitivity: 98 dB
Maximum Sound Pressure Level (SPL): 119 dB
Rated Power: 400 W
Coverage Angle: 100°×85° (Rotatable)
Weight: 19.5 kg
Cabinet Material: Birch Wood, Polyurea Paint Finish

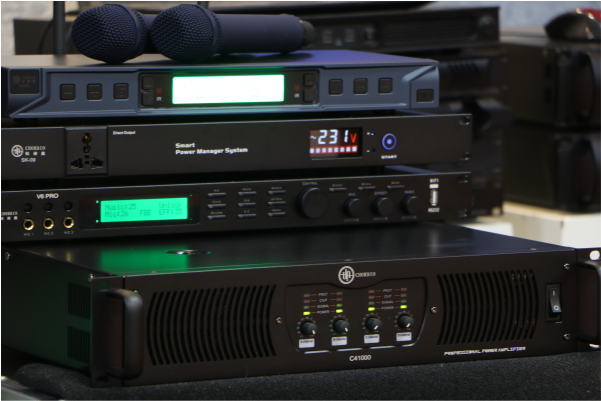

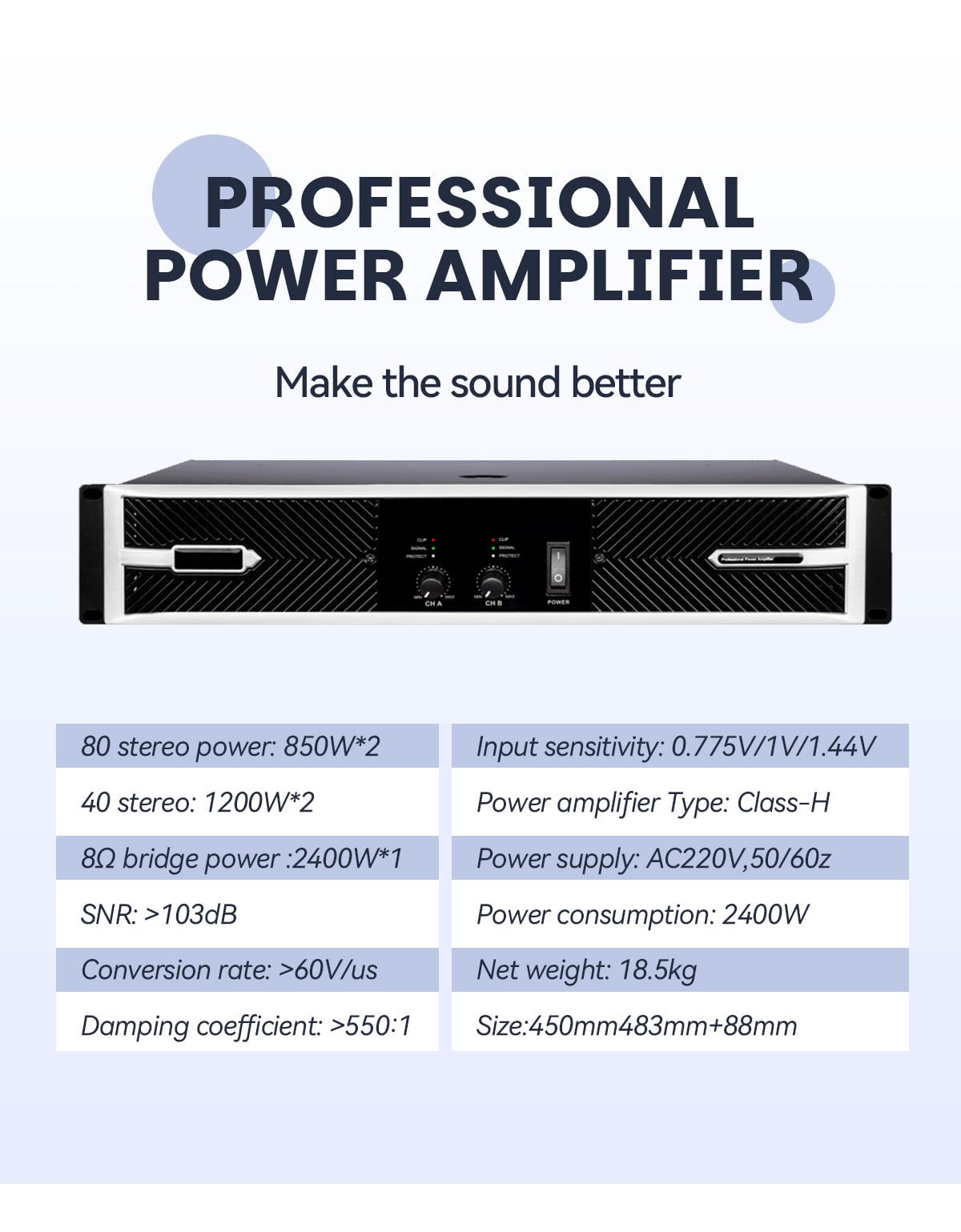

Power Amplifier

Model Number: DF800
Product Type: Power Amplifier
8Ω Stereo Power: 850W×2
4Ω Stereo Power: 1200W×2
8Ω Bridged Power: 2400W×1
Total Harmonic Distortion (THD): <0.05% at 1/8 power, 1KHz
Signal-to-Noise Ratio: 103dB
Slew Rate: 60V/μs
Damping Factor: 550:1
Frequency Response: 20Hz–20KHz (±0.1dB)
Channel Separation: 103dB
Input Sensitivity: 0.775V/1V/1.44V
Input Impedance: 10K ohms (unbalanced) – 20K ohms (balanced)
Amplifier Class: Class-H
Front Panel Indicators: Power/Signal/Clip/Protection/Bridged
Power Supply: AC220V, 50/60Hz
Power Consumption: 2400W
Net Weight: 18.5kg
Dimensions: 450*483*88mm


KTV音响系统_01.jpgKTV音响系统_02.jpgKTV音响系统_03.jpgKTV音响系统_04.jpgKTV音响系统_05.jpgKTV音响系统_06.jpgKTV音响系统_07.jpgKTV音响系统_08.jpg
