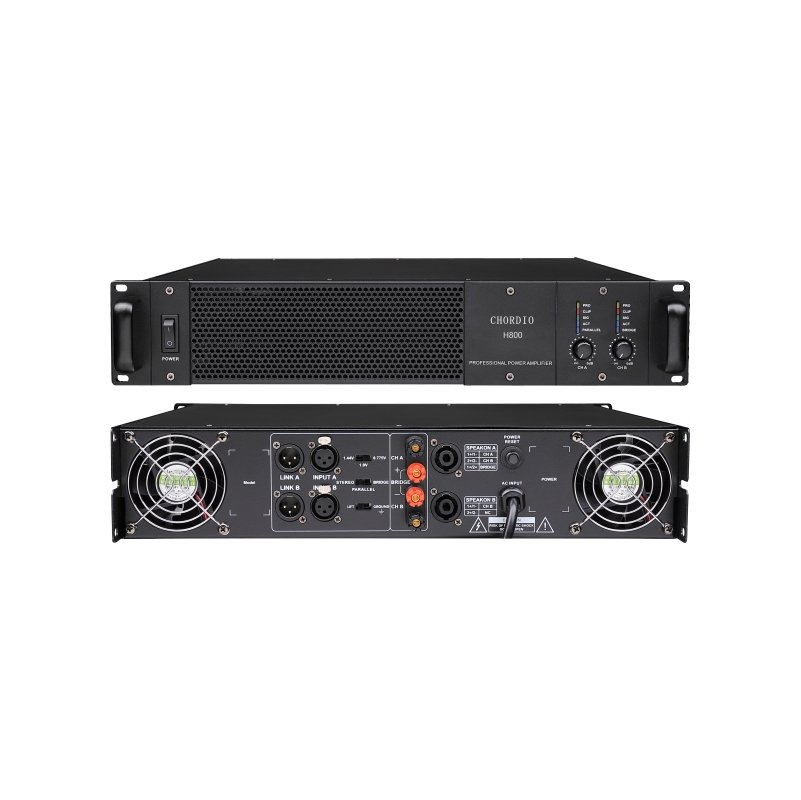

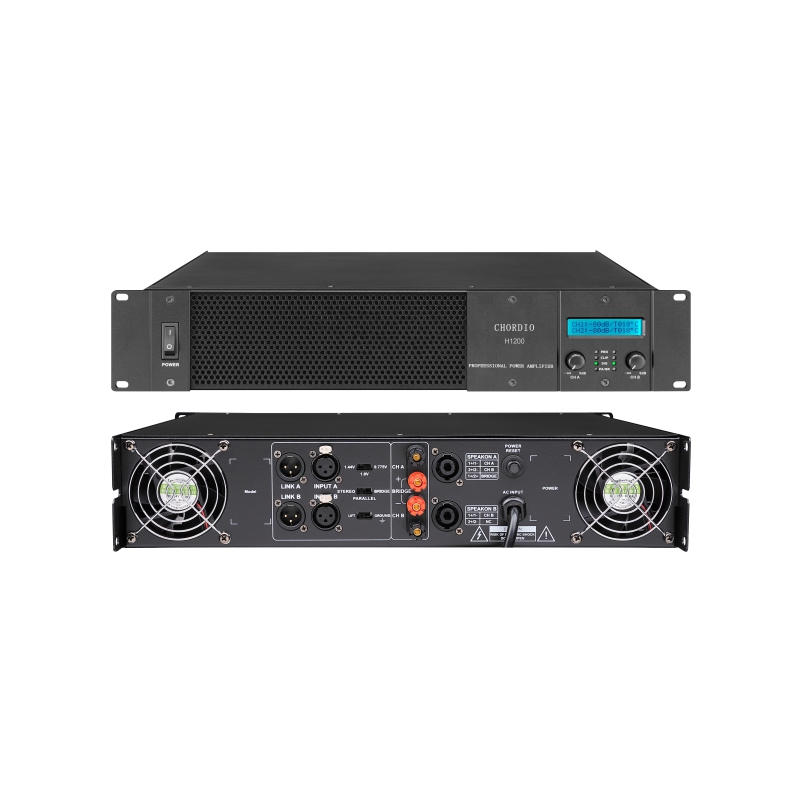

H Series - Professional Power Amplifier

This series of power amplifiers is a mature-circuit, high-efficiency, innovative-design, and stable-performance amplifier. Its simple and elegant layout is pleasing to the eye. It adopts a large heat dissipation system with a special rail-type structure, combined with variable-speed fans for component cooling, which greatly enhances heat dissipation capability. Perfect protections include DC output protection, overload protection, short-circuit protection, and overheat protection, ensuring the safety and reliability of the equipment. Carefully selected and matched high-precision components make the sound quality of this machine full, delicate, and perfect. It is an ideal partner for your high-quality speakers.

Widely used in occasions such as bar DJ performances, conference displays, wedding venues, stage performances, etc.

Product Parameters

Model number：	H300	H500	H600	H800	H1000	H1200
8Ω Stereo power：	350W*2	500W*2	650W*2	850W*2	1000W*2	1200W*2
4Ω Stereo power：	525W*2	750W*2	975W*2	1500W*2	1500W*2	1800W*2
8Ω Bridge power：	1050W	1050W	1950W	2550W	3000W	3600W
SNR：	103dB	103dB	105dB	105dB	105dB	108dB
Conversion rate：	60V/us	60V/us	60V/us	60V/us	80V/us	80V/us
Damping coefficient：	400:01:00	400:01:00	500:01:00	500:01:00	550:01:00	550:01:00
Frequency response：	20Hz-20KHz(±0.3dB)	20Hz-20KHz(±0.3dB)	20Hz-20KHz(±0.3dB)	20Hz-20KHz(±0.3dB)	20Hz-20KHz(±0.3dB)	20Hz-20KHz(±0.3dB)
Input sensitivity：	0.775V/1V/1.44V	0.775V/1V/1.44V	0.775V/1V/1.44V	0.775V/1V/1.44V	0.775V/1V/1.44V	0.775V/1V/1.44V
Input impedance：	10K ohms(unbalanced) -20K ohms(balanced)	10K ohms(unbalanced) -20K ohms(balanced)	10K ohms(unbalanced) -20K ohms(balanced)	10K ohms(unbalanced) -20K ohms(balanced)	10K ohms(unbalanced) -20K ohms(balanced)	10K ohms(unbalanced) -20K ohms(balanced)
Maximum power consumption：	1100W	1800W	2700W	3500W	4200W	5000W
Size：	45048388mm	45048388mm	45048388mm	45048388mm	45048388mm	45048388mm
Net weight：	14.5kg	15.5kg	16.5kg	18.5kg	20.5kg	22.5kg

Manufacturing. Professionalism. High Quality
A source factory with over 20 years of experience, a globally leading one-stop professional power amplifier and audio equipment manufacturer.

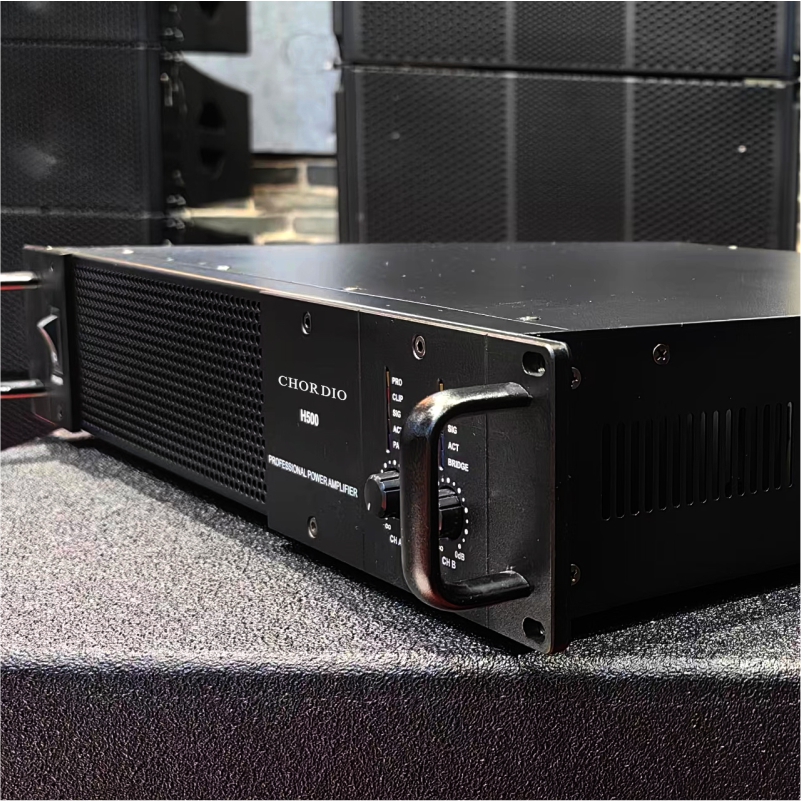

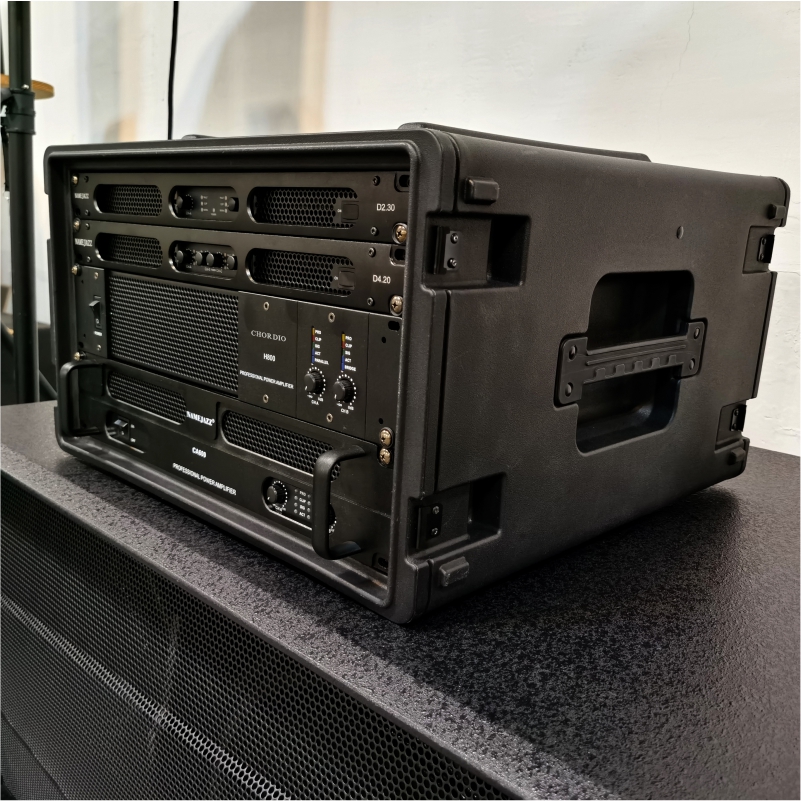

▼ 2U chassis design, suitable for cabinet installation on different occasions;
▼ New circuit and minimalist installation design, products with high cost performance;
▼ Three working modes: mono, stereo and bridge;
▼ With hardware pressure limit function, increase the input dynamic range;
▼ Use ON power tube as current drive, driving force is stronger, sound performance is more transparent and powerful;
▼ Pure analog amplifier circuit design, soft tone, clear, listening;
▼ Perfect output protection circuit, with overcurrent, midpoint drift, overheat, undervoltage, soft start protection functions.

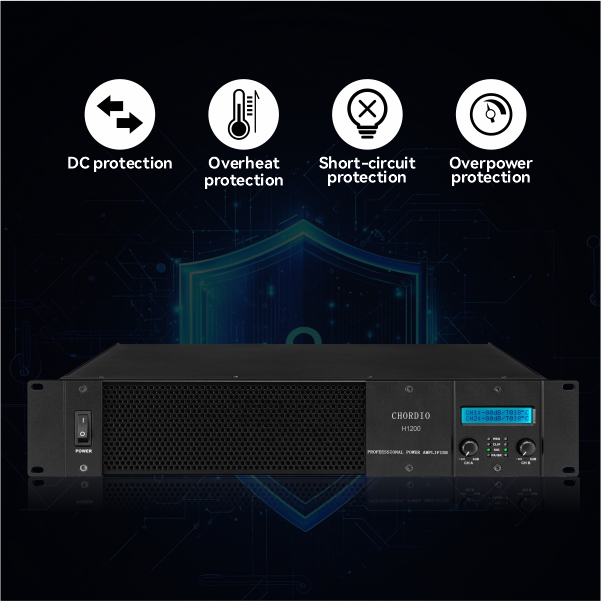

Automatic load impedance detection at startup, automatic dual soft clipping limit circuit, and multiple protection functions including overheating, overcurrent, short-circuit protection, eliminating worries

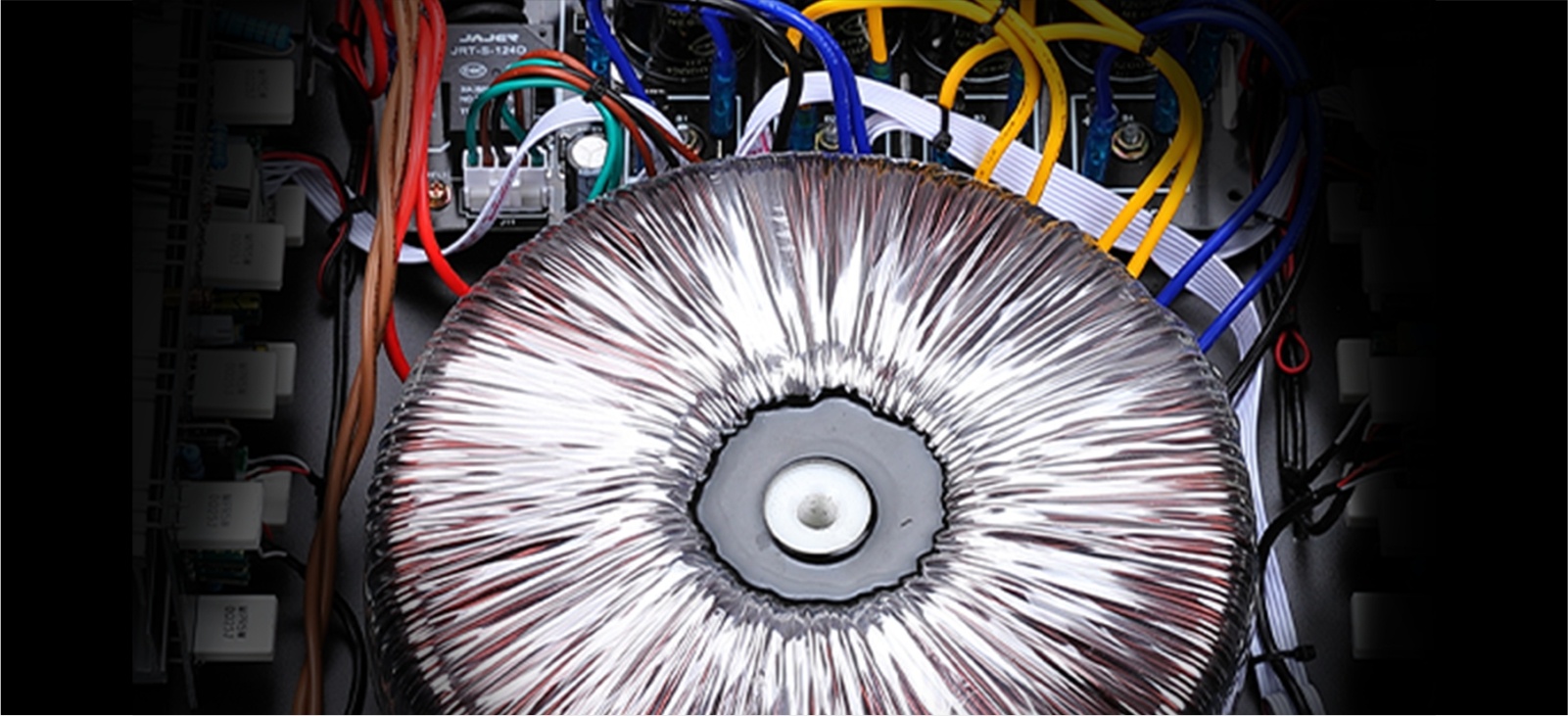

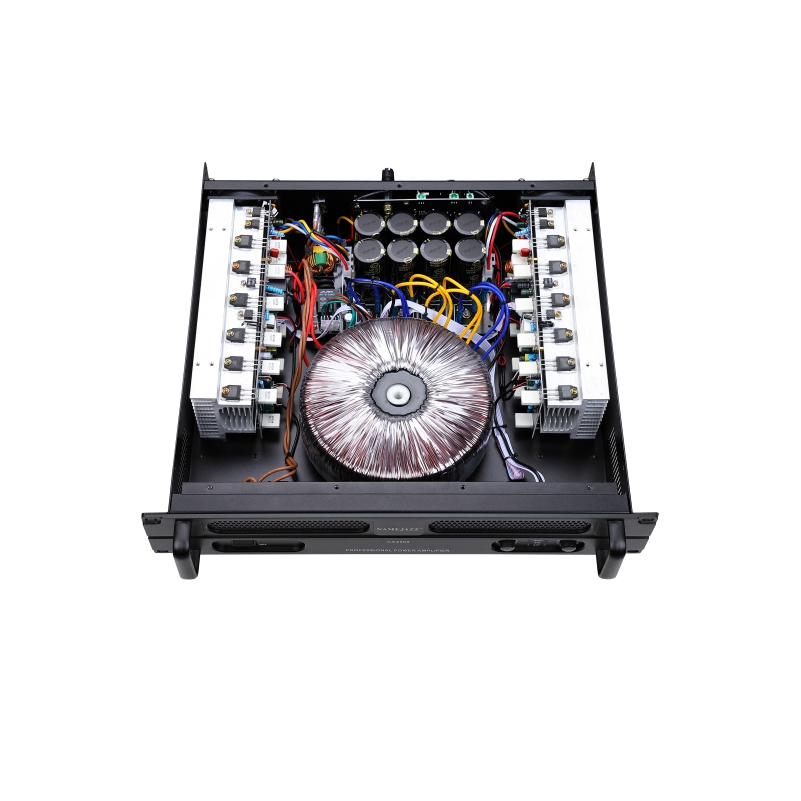

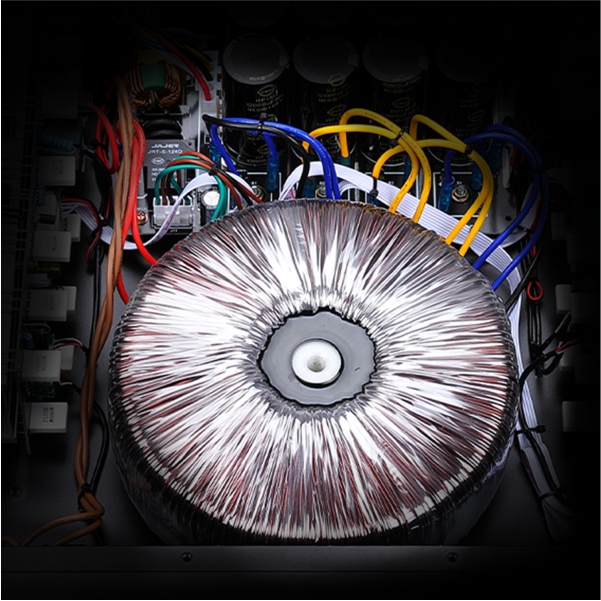

Adopts Class A silicon steel sheets and pure copper wire high-power toroidal transformers to ensure sufficient power supply for the power amplifier

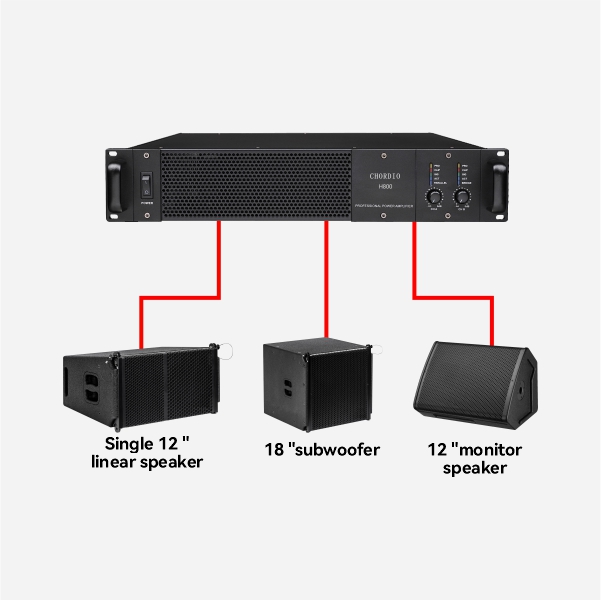

Supports multi-device input and allows selection of power supply according to actual conditions

Application scenarios

CHORDIO products are sold in more than 100 countries around the world and have gained a good reputation among numerous customers. Our company provides a full set of professional audio systems, which are suitable for various events. These include product launches, weddings, hotels, churches, stadiums, stage performances, DJ shows, party concerts, and more. Our top engineers and sales team are ready to offer all the services and products you need.
